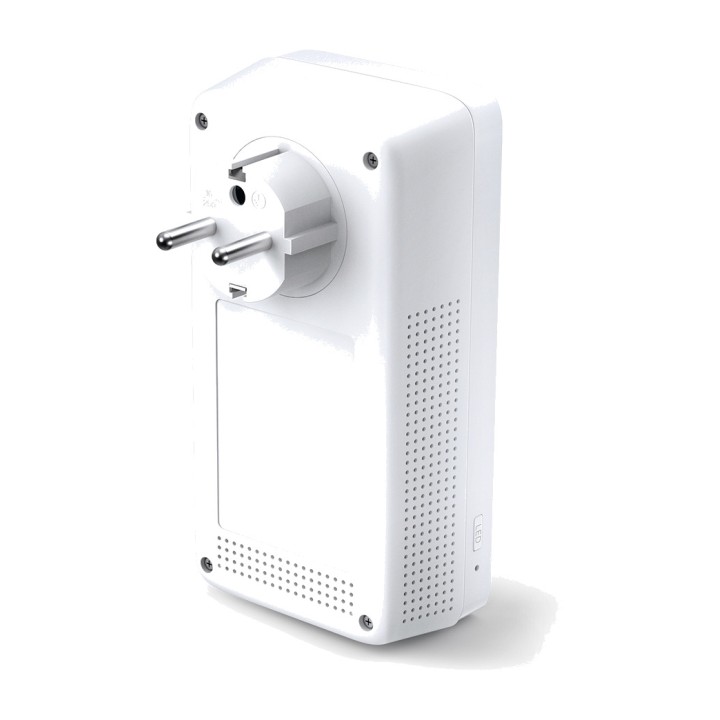

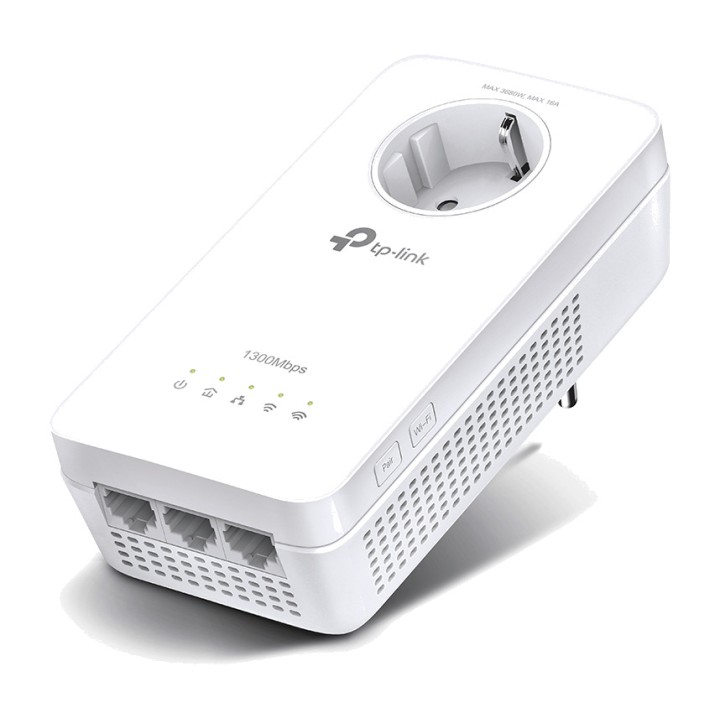

TP-LINK Gigabit Powerline adapter with WiFi 5 and integrated socket TL-WPA8631P AV1300 AC1200 MGS0000012536

TL-WPA8631P
AC1200 Gigabit AV1300 Powerline Wi-Fi Kit with built-in socket

HomePlug AV2 offers ultra-fast powerline speeds of
up to 1300Mbps*
AC1200 Dual-band Wi-Fi with speeds of up to 867Mbps on 5GHz and
300Mbps on 2.4GHz.*
OneMeshTM works with your OneMeshTM router to form a unified mesh network
for seamless streaming as you move around your home
2X2 MIMO establishes multiple simultaneous connections so you can enjoy
higher and more stable powerline speeds
Wi-Fi Clone Button Automatically copies the network name (SSID) and
password of your main router simply by pressing a button, and it is applied to the entire
Powerline network
Auto-Sync Add additional extenders to your powerline network using
the pair button; settings are synchronised uniformly across all network devices, such as
SSID, password, Wi-Fi Schedule and LED Schedule
Plug and Play Set up your powerline network and start enjoying
fast wireless connections in minutes
Extra Power Socket You can power other devices at the same time through
the integrated socket
3 Gigabit ports provide secure wired networks for desktop computers,
smart TVs or game consoles

Hardware Features
EU Plug Type
Standards and Protocols HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE
802.3ab, IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11a/n/ac (5 GHz)
Interface 3 Gigabit Ethernet Ports
Buttons Pair, LED On/O, Wi-Fi, Reset
Power Consumption TL-WPA8631P: Maximum: 13.7W, Typical : 11W
TL-PA8010P: Maximum: 4.9W, Typical : 4.6W
LED Indicator Power, Powerline, Ethernet, Wi-Fi (2.4 GHz), Wi-Fi (5 GHz)
Dimensions TL-WPA8631P: 3.0 1.7 6.0 in. (75 42 152 mm)
TL-PA8010P: 2.8 1.7 5.2 in. (72 42 131 mm)
Range Up to 300 metres over your existing electrical wiring*
Compatibility Compatible with any powerline adapter with the standard
HomePlug AV & HomePlug AV2*
Transmission Speeds Powerline: up to 1300 Mbps
Ethernet: 10/100/1000 Mbps
SOFTWARE FEATURES
Security Wireless: WPA-PSK/WPA2-PSK, WEP Encryptions,
Powerline: 128-bit AES Encryption
Management TP-Link tpPLC App, or download the new tpPLC utility on a PC:
link.com/support/download
Modulation Technology OFDM
SOFTWARE
OneMesh OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem,
OneMesh helps you create a more flexible network that covers your entire home
with TP-Link OneMesh products.
Others
CE, ROHS certifications
Package Contents AV1300 Gigabit Passthrough Powerline ac Wi-Fi KIT:
1 TL-WPA8631P, 1 TL-PA8010P,
2 Ethernet cables,
1 Quick Installation Guide
System Requirements System Requirements
Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
System requirements for tpPLC utility:
Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later)
Environmental Factors Operating Temperature : 0~40 (32
~104)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0027
