TP-LINK Dual-band WiFi 5 access point with passive PoE TL-WA1201 AC1200 MGS0000012220

TL-WA1201
wireless access point AC1200

Dual-band Wi-Fi AC1200: 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band.
Flexible Deployment Passive PoE support enables power transmission
and data simultaneously.
Multiple Modes Supports Access Point, Network Extender, Multi-SSID and
Client mode for any network need.
MU-MIMO Technology Transfers data simultaneously to multiple devices
with 2x faster performance.

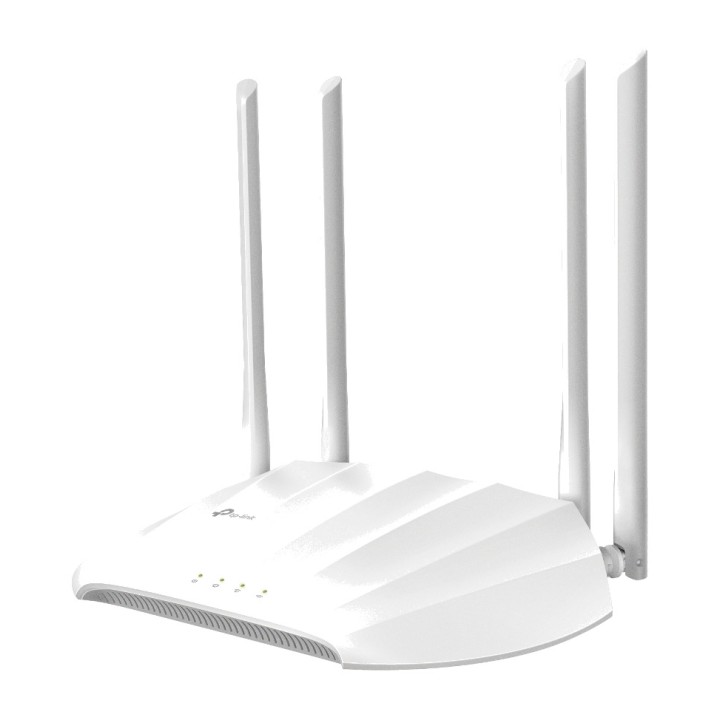

Enhanced Coverage Four fixed antennas equipped with
Beamforming extends and focuses Wi-Fi signals.
Captive Portal Provides a web portal designed to enhance security and
marketing.

Hardware Features

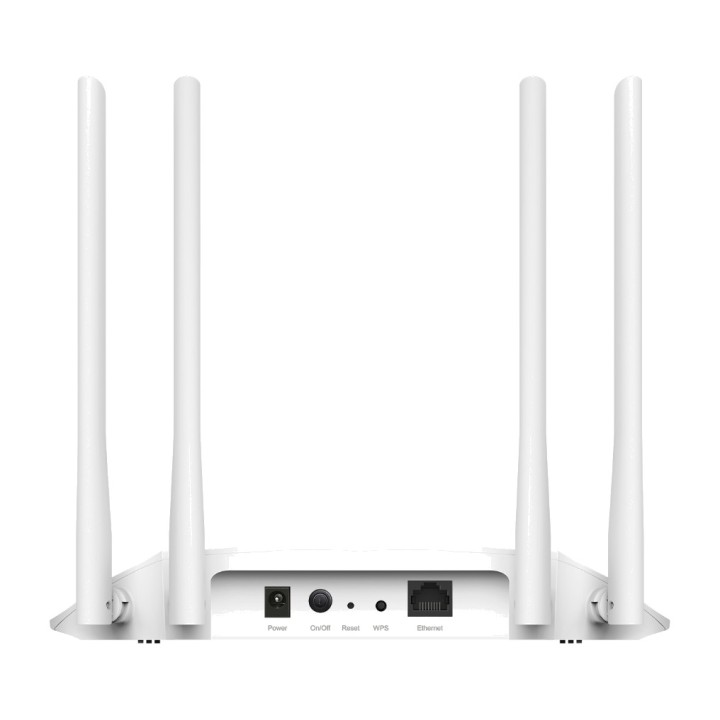

Interface 1 Ethernet port, 10/100/1000 Mbps
(Supports Passive PoE)
Buttons: Power On/Off Button, WPS Button, Reset Button
External power supply 12V/1.5A
Wireless Standards IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Dimensions 40025572 mm (225145.537 in)
Antenna Type 4 Fixed High-Performance Antennas
WIRELESS FEATURES
Frequency 2.4 GHz and 5 GHz
Signal Rate 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
Reception Sensitivity 5 GHz:
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Transmission Power CE: <,20dBm(2.4GHz), <,23dBm(5.15GHz~5.25GHz)
FCC: <,30dBm(2.4GHz&,5GHz)
Wireless Modes Access Point, Range Extender, Client,
Multi-SSID
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge,
WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server,
Access control
Wireless Security 64/128-bit Encryption WEP, WPA/WPA2, WPA-
PSK/WPA-PSK2
DHCP Server, DHCP Client List
WMM Quality of Service
Advanced Features Captive Portal
Others
CE, FCC, RoHS certifications
Package Contents Wireless Access Pointt TL-WA1201
Power adapter
RJ45 Ethernet Cable
Quick installation guide
PoE Injector
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or
Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari
4.0, or another browser with Java
Environmental Factors Operating Temperature: 0~40
(32~104)
Storage temperature : -40~70 (-40~158)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Protocol Support IPv4, IPv6
Volume (m ³): 0.0073
