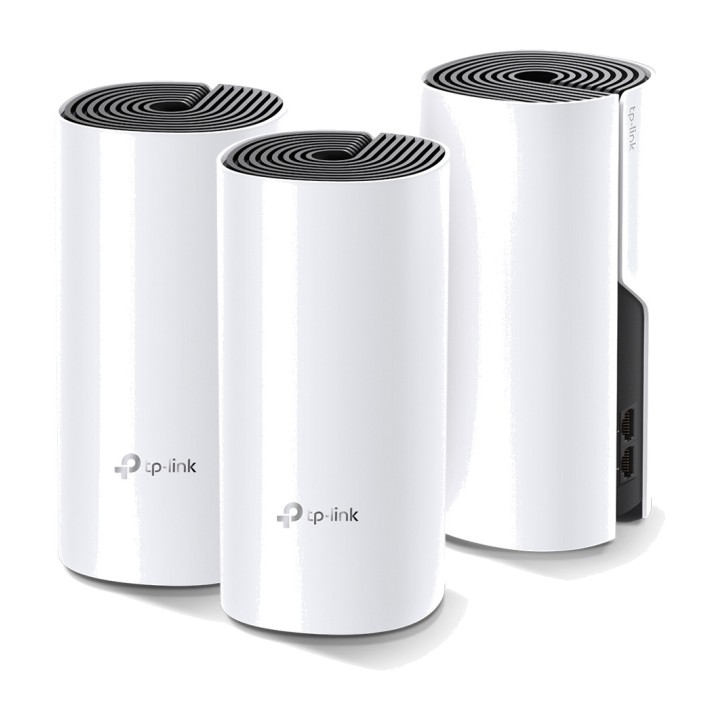

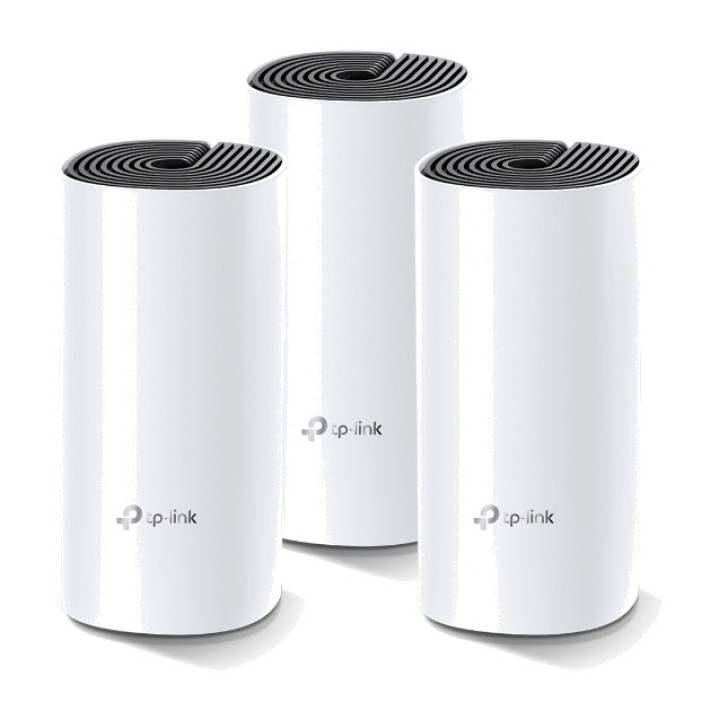

TP-LINK Dual-band WiFi 5 mesh system DECO M4 AC1200 3 UDS MGS0000012201

Deco M4 is the easiest way to ensure a strong Wi-Fi signal in every
corner of your home, covering up to 260 square metres (pack of 2).

Wireless connections and the optional Ethernet backhaul work together
to link Deco units, providing even faster network speeds
fast and truly seamless coverage.
Characteristic

Deco uses a system of units to achieve seamless Wi-Fi coverage for the
home. Eliminate weak-signal zones once and for all!
With advanced Deco Mesh technology, Deco devices work together to
form a unified network in your home, with the same network name. The devices
automatically switch between Decos as you move around your home to
get the fastest speeds possible.
A pack of 2 Deco M4 provides Wi-Fi coverage in an area of up to 260 square
square metres. If you need to cover a larger area, simply add more Decos to your network at any
time to increase coverage.
Deco M4 provides fast, stable connections with speeds of up to
1167 Mbps and works with routers from the leading operators on the market.
Deco can manage traffic even on heavily congested networks, providing
lag-free connections to more than 100 devices.
Parental Controls limit online time and block inappropriate websites,
according to the unique profiles created for each family member.
Setup is very simple. The Deco app guides you step by step.

specs

Design
Housing color: white
LED indicators: LAN, Power, WLAN
Antenna type: Internal
Number of antennas : 2
Reset button: Yes
Operating temperature range : 0 - 40 C
Storage temperature range : -40 - 70 C
Relative humidity range for operation : 10 - 90%
Relative humidity range during storage : 5 - 90%
Certification: CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS

Wireless LAN features
Wi-Fi band: Dual band (2.4 GHz / 5 GHz)
Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Supported security algorithms: WPA-PSK,WPA2-PSK

Characteristic
Quality of Service (QoS) support: Yes
Firewall security: SPI
Supported mobile operating systems: Android 4.4, Android 5.0, Android 5.1,
Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS
10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 9.0, iOS 9.1, iOS 9.2, i OS 9.3

Protocols
DHCP, client: Yes
DHCP, server: Yes

Ports and Interfaces
Ethernet LAN (RJ-45) port quantity : 2
DC-in jack: Yes

Power control
Adapter input voltage AC: 100 - 240 V
AC adapter frequency: 50 - 60 Hz
Adapter input current CA: 0,4 A
Adapter output voltage AC: 12 V
Adapter output current AC: 1,2 A

WEIGHT AND DIMENSIONS
Width: 90.7 mm
Depth: 90.7 mm
Height: 190mm
Package width: 353 mm
Package depth: 235 mm
Package height: 160 mm
Package weight: 2.33 kg

Package contents
AC adapter included: Yes
Volume (m ³): 0.0134
