TP-LINK Hybrid WiFi 5 mesh system with PLC DECO P9 AC1200 AV1000 2 UDS MGS0000012195

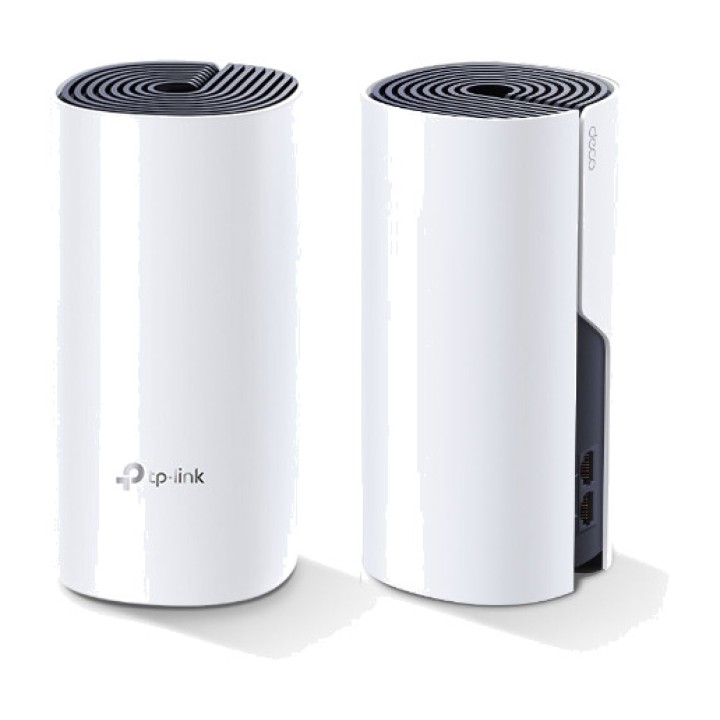

Deco P9AC1200 + AV1000 Whole Home Hybrid Mesh Wi-Fi System

Dual-band Wi-Fi + Powerline - Dual-band Wi-Fi combinations
AC1200 + Powerline AV1000 for speeds of up to 2200 Mbps

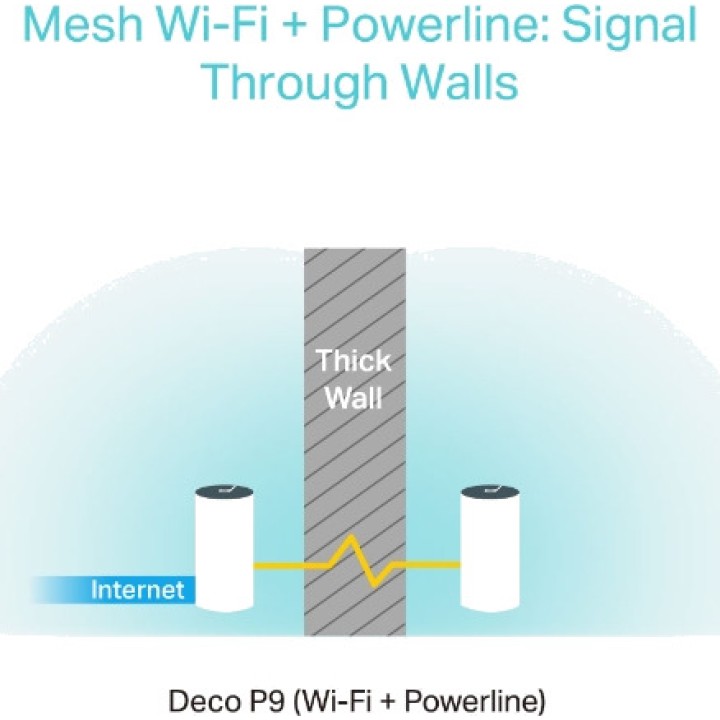

The signal works through walls: transmit data via your
home’s electrical wiring, without worrying about Wi-Fi dropping through
walls or ceilings.
Connect more devices: Deco handles traffic even on the busiest network,
providing lag-free connections for up to 100 devices.
Seamless roaming: Deco units work together to form
a unified network. Walk around your home and stay connected at the
fastest speeds possible.
MU-MIMO technology: transfers data simultaneously to multiple
devices for faster performance.
Quality of Service: prioritize devices for faster
performance when needed.
Robust parental controls: manage content and control when
each device can access the Internet.
Easier setup than ever: the Deco app guides you step by step through
the setup.
Broad compatibility: all Decos work together.
Wireless
Wi-Fi 5 standards
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
Powerline Speeds HomePlug AV2
1000 Mbps Powerline
WiFi Range Homes with 4 to 6 bedrooms (3-pack) Mesh technology
TP-Link
Optional Ethernet backhaul works together to link the units
Deco and provide seamless coverage

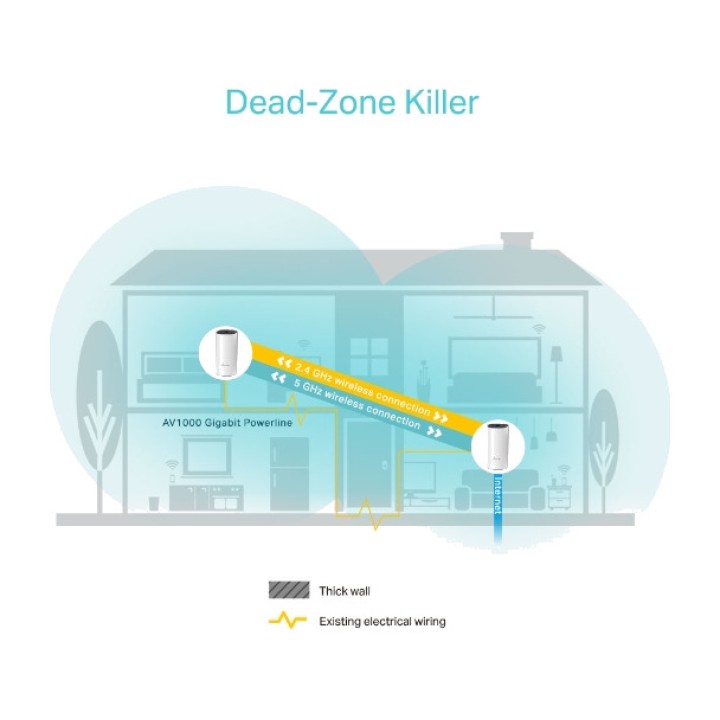

Powerline technology
Uses your home's electrical wiring to create stronger connections
between Deco units, reducing the impact of walls or other
obstacles on the signal.

2 antennas (internal)
Multiple antennas form a signal-boosting array to cover more
directions and larger areas

Beamforming
Concentrates wireless signal strength toward clients to
extend WiFi range
WiFi Capacity Media Dual band
Distribute devices across different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Working Modes Router Mode
Access point mode
Hardware
Processor CPU Qualcomm
Ethernet Ports 2 Gigabit ports

* Per Deco unit
Supports automatic WAN / LAN detection
Buttons Reset button
SECURITY
WiFi Encryption WPA-Personal
WPA2-Personal
Network Security SPI firewall
Access control
Guest Network 1 5 GHz guest network
1 2.4 GHz guest network
SOFTWARE
Protocols IPv4
IPv6
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS per device
Cloud Service OTA Firmware Update
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV Proxy IGMP
IGMP snooping
Jumper
VLAN Tag
DHCP Reservation Address
DHCP Client List
Server
TP-Link DDNS
Management Deco App
Physical
Dimensions (WDH) 3.6 3.6 7.5 in
(90.7 90.7 190 mm)
Package Contents Deco P9 (pack of 3)
3 Deco units P9
1 Ethernet cable RJ45
3 power adapters
1 quick installation guide

Deco P9 (pack of 2)
2 Deco units P9
1 Ethernet cable RJ45
2 power adapters
1 quick installation guide

Deco P9 (pack of 1)
1 Deco unit P9
1 Ethernet cable RJ45
1 power adapter
1 quick installation guide
Others
System requirements Android 4.4 or later
iOS 9.0 or later
Certifications CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS
Environment Operating temperature : 0 ~ 40 (32 ~ 104 )
Storage temperature : -40 ~ 70 (-40 ~ 158 )
Operating Humidity: 10% ~ 90% without condensation
Storage Humidity: 5% ~ 90% without condensation
TEST DATA
WiFi Transmission Power CE:
<,20 dBm (2.4 GHz)
<,23 dBm (5 GHz)
FCC:
<,30 dBm
Volume (m ³): 0.0089
