TP-LINK Dual-band WiFi 5 router with MU-MIMO ARCHER-C80 AC1900 MGS0000008430

Archer C80
Dual-band wireless router AC1900 MU-MIMO

802.11ac Wave2 Wi-Fi 1300 Mbps on the 5 GHz band and 600 Mbps on the
2.4 GHz band.
MIMO 3×3 technology: transmit and receive three WiFi data streams
to pair perfectly with clients 33.
Enhanced Wi-Fi Coverage Beamforming technology delivers a
high-efficiency wireless connection.
MU-MIMO helps devices achieve optimal performance thanks to more
efficient communication.
Customised Management Advanced features such as Parental Controls, Guest
Network and Access Control provide tailored network management.
Smart Connection Smart Connect directs clients to the least
congested band, while Airtime Fairness optimises usage time.

Wireless
Wi-Fi 5 standards
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC1900
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 600 Mbps (802.11n)
WiFi Range 3-bedroom homes 4 high-performance fixed antennas
Multiple antennas form a signal-boosting array to cover more
directions and larger areas

Beamforming
Concentrates wireless signal strength toward clients to extend the
WiFi range
WiFi Capacity Medium Dual Band
Assigns devices to different bands for optimal performance

3×3 MU-MIMO
Simultaneous communication with multiple MU-MIMO clients

Airtime Fairness
Improves network efficiency by limiting excessive occupancy
Working Modes Router Mode
Access point mode
Hardware
Processor 1.2 GHz CPU

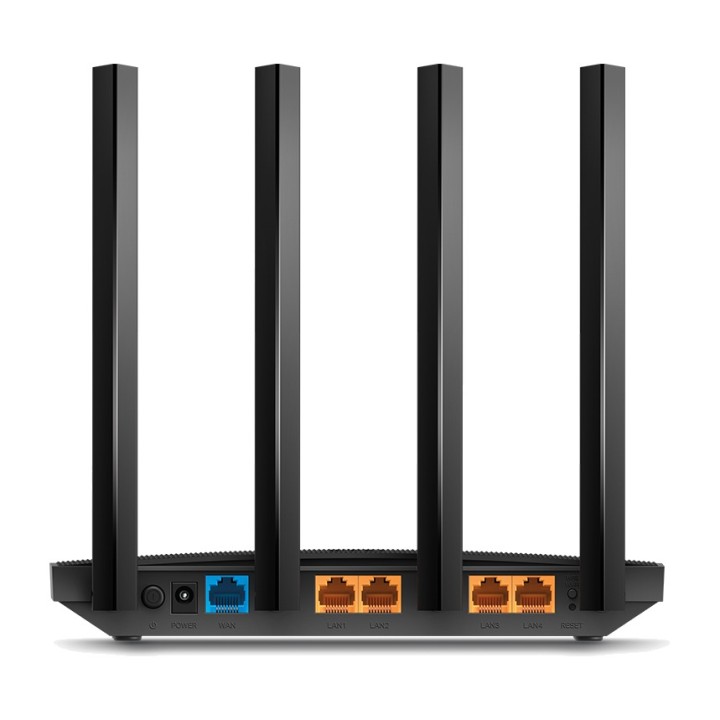

Ethernet Ports 1 Gigabit WAN Port
4 Gigabit LAN Ports
Buttons WPS/Wi-Fi Button
Power On/Off Button
Reset button
Power US version
12 V 1.5 A

EU Version
12 V 1 A
SECURITY
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall
Access control
IP and MAC Binding
Application Layer Gateway
Guest Network 1 5 GHz Guest Network
1 2.4 GHz Guest Network
SOFTWARE
Protocols IPv4
IPv6
OneMesh Compatible with OneMesh
Without replacing your existing devices or buying a WiFi ecosystem
completely new, OneMesh helps you create a more flexible network that covers
your entire home with TP-Link OneMesh products.
Learn more & gt,
All OneMesh products & gt,
Parental Controls URL Filtering
Time Control
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service OTA Firmware Update
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
VLAN Tag
DHCP Address Reservation
DHCP Client List
Server
TP-Link DDNS
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>,
Physical
Dimensions (WDH) 215 117 32 mm 5 4.6 1.26 in
(5 4.6 1.26 in)
Package Contents Wi-Fi Router Archer C80
Power adapter
Ethernet cable RJ45
Quick installation guide
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+,
Safari 4.0+, or JavaScript-compatible browsers

Cable or DSL modem (if necessary)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating temperature : 0~40 (32 ~104)
Storage temperature : -40~70 (-40 ~158)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<,20dBm(2.4GHz)
<,23dBm(5.15GHz~5.25GHz)
FCC:
<,30dBm(2.4GHz & 5GHz)
WiFi Reception Sensitivity 5GHz:
11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm
11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm
11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm

2.4GHz:
11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm
11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm
11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm
Volume (m ³): 0.0065
