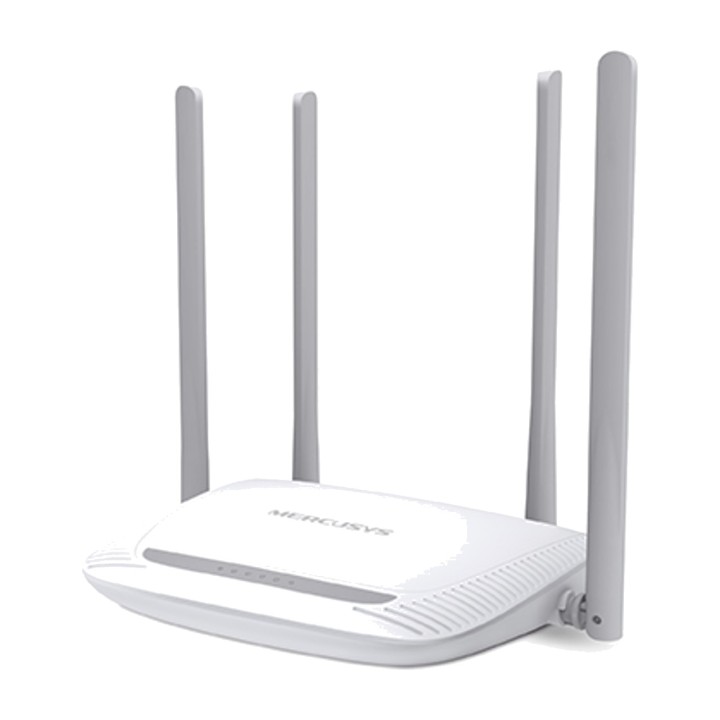

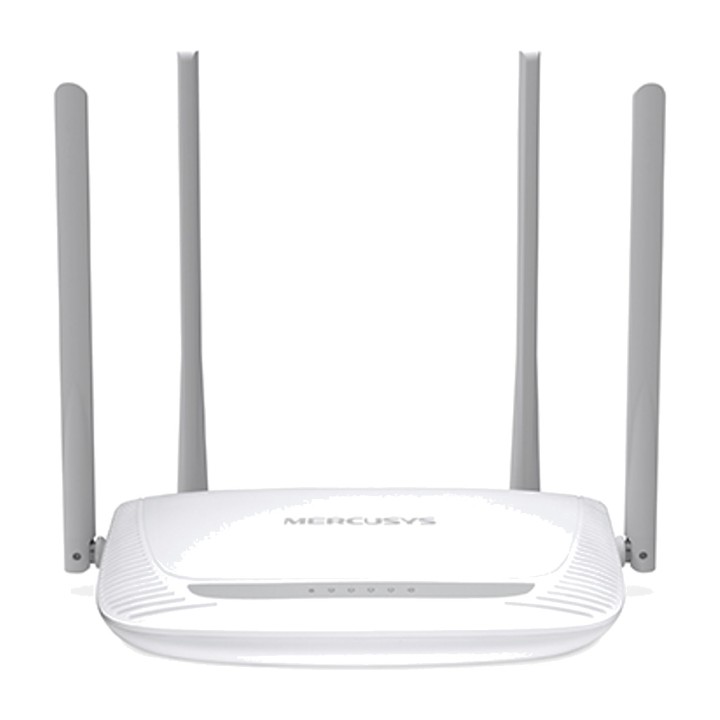

MERCUSYS Wi-Fi router with 4 antennas N300 300MBPS 4X5DBI MW325R

Enhanced 300 Mbps Wireless N Router
MW325R

Maximum coverage - four 5dBi antennas provide up to 500m2 of
wireless coverage
Enhanced signal: high-gain antennas dramatically increase the
strength, size and stability of the wireless signal.
300 Mbps wireless speed - ideal for HD streaming, online gaming and
large file downloads.
Easy setup - an intuitive web page guides you through the setup process
in just a few minutes
*Range specifications are based on the results of performance tests
Performance. Actual performance varies according to applications and
environmental conditions.

External power supply 5VDC/0.6A
Antenna Type 4 x 5dBi fixed omnidirectional antennas
Signal rate

11n: Up to 300Mbps (dynamic)

11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Button Reset button
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4 - 2.5GHz
Receive sensitivity

270M: -70dBm @10% PER

130M: -72dBm @10% PER

54M: -74dBm @10% PER

11M: -87dBm @10% PER

6M: -92 dBm @10% PER
1M: -94dBm @10% PER

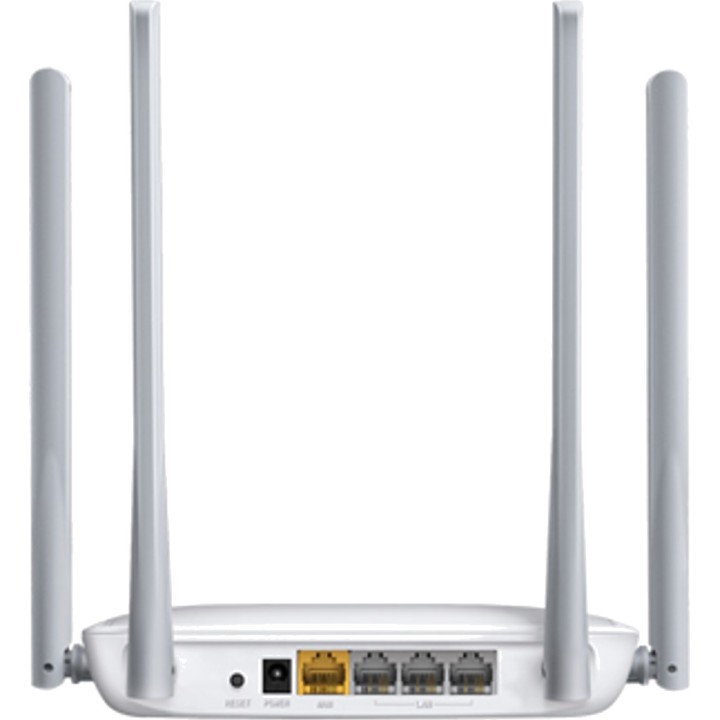

Interfaces

3 10/100Mbps LAN ports
1 10/100Mbps WAN port
CE, ROHS certifications
PACKAGE CONTENT

Enhanced 300 Mbps Wireless N Router

MW325R

Power adapter

Quick installation guide

Ethernet cable RJ45
environment

Operating temperature : 0C ~ 104F (0C ~ 0C)

Storage temperature : -40C ~ 70C (-40F ~ 158F)

Operating humidity: 10% ~ 90%, non-condensing
Storage humidity: 5% ~ 90%, non-condensing
Transmission power <,20dBm
Wireless security WPA-PSK / WPA2-PSK
WIRELESS FEATURES

Enable/disable wireless radio, WDS Bridge
WAN type

Dynamic IP/Static IP/PPPo E/L2TP/PPTP
Management

Access control

Local management
Remote management
DHCP

Server, DHCP client list
Port forwarding Virtual server, UPnP, DMZ
Oray Dynamic DNS
Firewall Security IP and MAC address binding
IPv4 protocols
Guest network 2.4 GHz guest network
Dimensions (W x D x H) 167 x 118 x 33 mm
Volume (m ³): 0.0047
