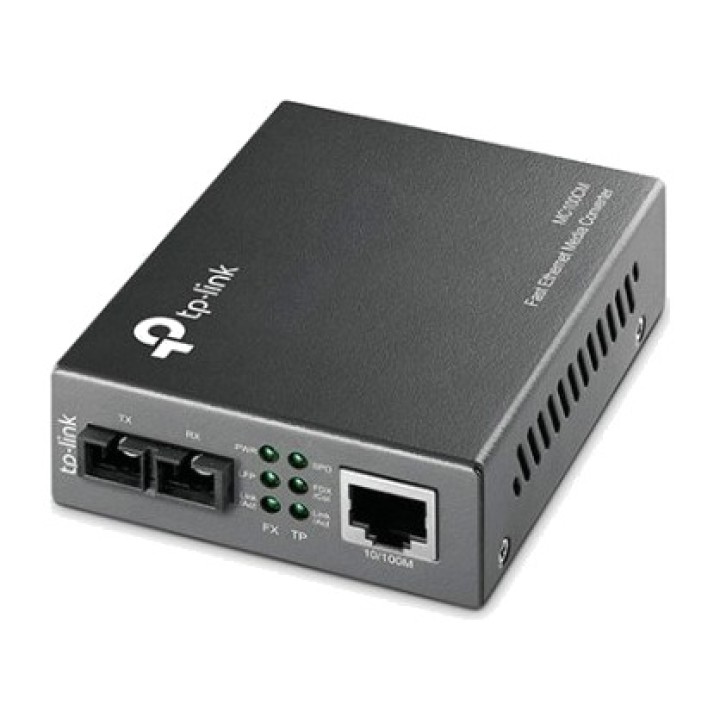

TP-LINK Multimode fiber-optic to Ethernet media converter 10/100MBPS SC 2KM MC100CM

The MC100CM is a media converter designed
to convert 100BASE-FX fiber to 100BASE-TX copper media or
vice versa. Designed to IEEE 802.3u 10/100Base-TX and
100Base-FX standards, the MC100CM is designed for use with multi-mode fiber
and uses the SC-type connector. The MC100CM is compatible with
long-wave laser specification (LX) at a speed of
fast cable transmission. It operates at 1310 nm for transmission and
reception.

Other features of this module include the ability to be
used as a standalone device (no chassis required) or with
the TP-LINK 19 system chassis, Auto MDI / MDI-X for the TX port,
automatic duplex mode negotiation on the TX port, and status LEDs
on the front panel. The MC100CM transmits over extended distances
using multimode fiber up to 2
kilometers.
Standards and Protocols IEEE 802.3, IEEE 802.3u , IEEE 802.3x
Basic Features Transfer mode Full/Half Duplex of the FX port Flow control Full duplex
Flow control Full duplex (IEEE 802.3x)
Half-duplex flow control (backpressure)
Extends fiber distance up to 2 km
Ports 1 port SC/UPC 100M
1 100M RJ45 port (Auto MDI / MDIX)
Wavelength 1310nm
Network Medium 10BASE-T Category 3, 4, 5 UTP cable
(maximum
100m) EIA/TIA-568 100 STP (maximum 100m)
Network Medium 100BASE-T Category 5, 5e UTP cable
(maximum
100m) EIA/TIA-568 100 STP (maximum 100m)
Network Medium 100BASE-FX Multimode fiber
LED Indicators PWR, FDX/Col, Link/Act, SPD
Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External power adapter
Max Power Consumption 2.5W
Safety and FCC, CE, RoHS Emission
Environment Operating temperature : 0 ~ 40 (32 ~ 104)
Storage temperature : -40 ~ 70 (-40 ~ 158)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% without condensation
Volume (m ³): 0.0025
