MERCUSYS Dual-band WiFi 7 mesh system HALO-H37BE BE6500 2 UDS MGS0000034815

Features of the Mercusys Halo H37BE 2-Pack
The Mercusys Halo H37BE 2-Pack is a dual-band Wi-Fi Mesh system with Wi-Fi 7 BE6500 technology, designed to provide a fast, stable and consistent connection throughout the home. With its 2 units, it can cover up to 460 m², making it a suitable solution for homes with 3 to 5 rooms, 4K/8K streaming, online gaming, fast downloads and intensive use of multiple devices.
High-speed Wi-Fi 7 BE6500
This Mesh system features the new Wi-Fi 7 standard, with combined speeds of up to 6.5 Gbps. Its dual-band design allows network traffic to be distributed more effectively, providing a smoother connection for entertainment, remote work and connected devices.

Wi-Fi class : BE6500
2.4 GHz speed: 688 Mbps
5 GHz speed: 5760 Mbps
Wireless standards: 802.11be/ax/ac/a/b/g/n
Maximum channel width: 160 MHz
Maximum Wi-Fi modulation : 4096-QAM

Whole-home Mesh coverage
The 2 Halo units work as a single unified network, allowing devices to connect automatically to the node with the strongest signal. This helps prevent interruptions, connection drops or performance slowdowns as you move around the home.

Coverage up to 5,000 ft² / 460 m²
Recommended pack for homes with 3 to 5 rooms
Seamless roaming between Mesh units
Integrated internal antennas

Advanced technologies for greater stability
The Halo H37BE leverages Wi-Fi 7 features such as MLO, Multi-RUs and Beamforming to improve performance, reduce latency and optimise connections with multiple devices at the same time.

Multi-Link Operation MLO
Multi-RUs
Beamforming
Wireless security WPA-PSK/WPA2-PSK/WPA3-SAE

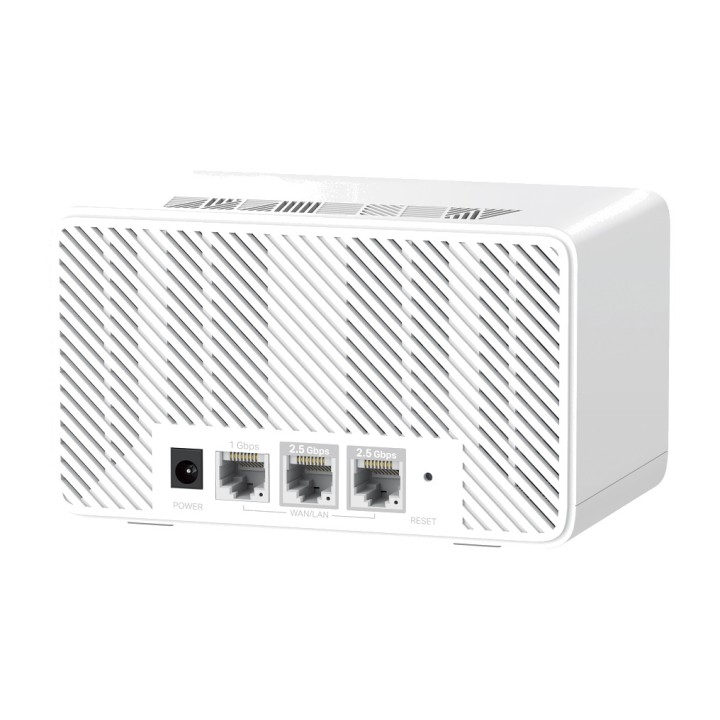

Multi-Gigabit ports for wired connections
Each unit features network ports with automatic WAN/LAN detection, including 2.5 Gbps connections to exceed the usual 1 Gbps limit and make better use of compatible fibre connections, computers, consoles or NAS devices.

2 x 2.5 Gbps WAN/LAN auto-sensing ports
1 x 1 Gbps WAN/LAN auto-sensing port
Compatible with Router mode and AP mode
IPv4 and IPv6 protocols

Easy management from the MERCUSYS app
Network setup and management are easy with the MERCUSYS app, which lets you manage devices, parental controls, the guest network and system settings from your mobile phone.

Management via MERCUSYS APP
Compatible with MERCUSYS ID
Guest network on 2.4 GHz and 5 GHz
Parental controls with profiles, time limits, Internet pause and web filtering
QoS with priority control

Network and security features
The Halo H37BE offers advanced options for adapting the network to different home or professional needs, including SPI Firewall, access control, IPTV, VLAN and system management features.

WAN: Dynamic IP, Static IP, PPPoE, L2TP and PPTP
NAT Forwarding: Port Forwarding and UPnP
IPTV: IGMP Proxy, IGMP Snooping, Bridge and VLAN Tag
Security: SPI Firewall and Access Control
DDNS: MERCUSYS
ISP features: CWMP and ISP Preset Agile Config

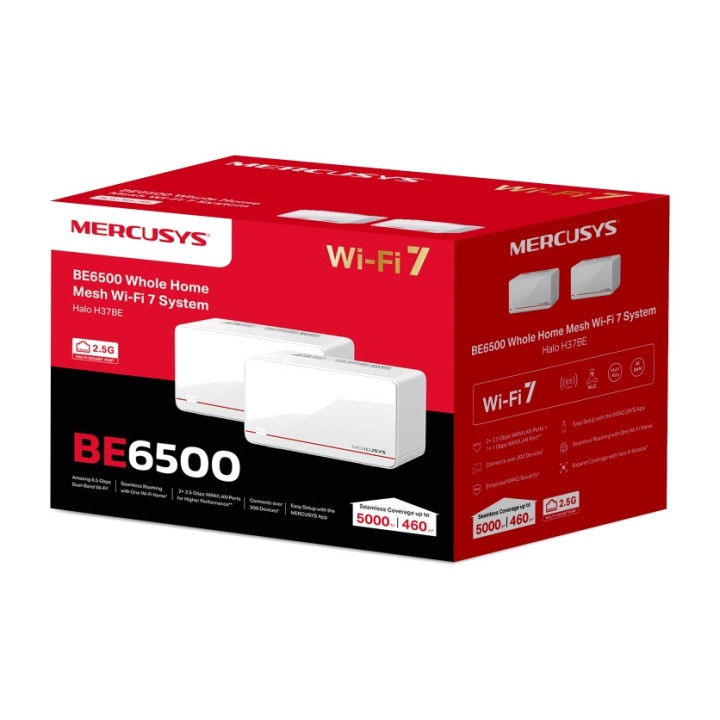

Compact design and package contents

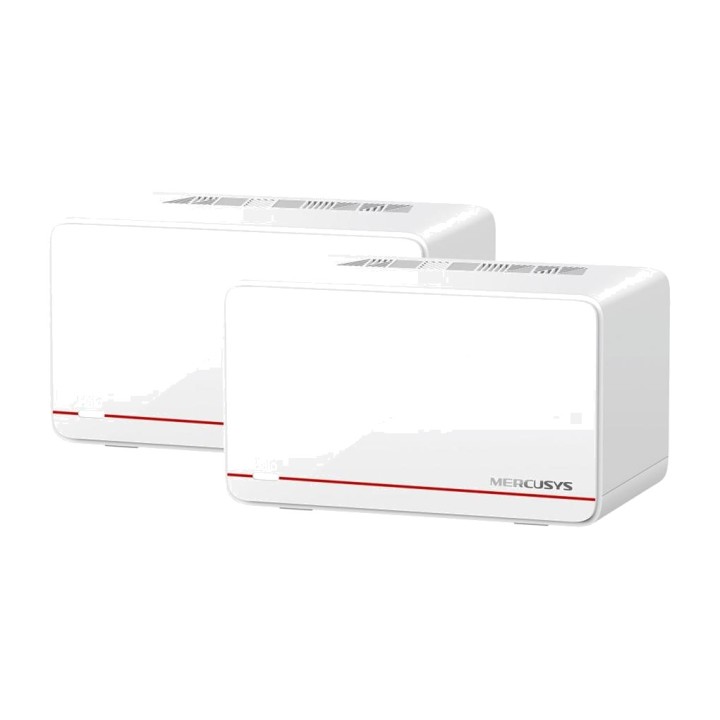

With a compact, discreet design, each Halo H37BE unit blends easily into the home. The pack includes everything needed to start using the Mesh system, including 2 Halo units, power adapters and an Ethernet cable.

Dimensions: 150 x 94 x 86 mm
Button : 1 x RESET
LED: 1 x SYS
External power supply: adapter 12 V / 2 A
Maximum consumption : 18 W
Contents: 2 Halo H37BE units, 1 RJ45 Ethernet cable, 2 power adapters and quick installation guide

Other specifications

5 GHz 11BE EHT20 MCS0 sensitivity: -95.5 dBm
5 GHz sensitivity 11BE EHT20 MCS13: -61 dBm
5 GHz sensitivity 11BE EHT80 MCS0: -90.5 dBm
5 GHz sensitivity 11BE EHT80 MCS13: -53 dBm
5 GHz sensitivity 11BE EHT160 MCS0: -88 dBm
5 GHz sensitivity 11BE EHT160 MCS13: -54.5 dBm
2.4 GHz sensitivity 11BE EHT20 MCS0: -96.5 dBm
2.4 GHz sensitivity 11BE EHT20 MCS11: -68 dBm
2.4 GHz sensitivity 11BE EHT40 MCS0: -94.5 dBm
2.4 GHz sensitivity 11BE EHT40 MCS11: -65 dBm
Package dimensions: 227.5 x 182.5 x 163.5 mm
UNITS PER BOX : 8
Box dimensions: 465 x 375 x 335 mm
Operating temperature : 0°C~40°C / 32°F~104°F
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Services active by default: HTTP/HTTPS web server port 80/443 TCP, DHCP server port 67 UDP, DNS port 53 TCP and UDP, app management port 20001 TCP and port 20002 UDP
Note: the Halo H series is not compatible with the Halo S series
Volume (m ³): 0.0079
