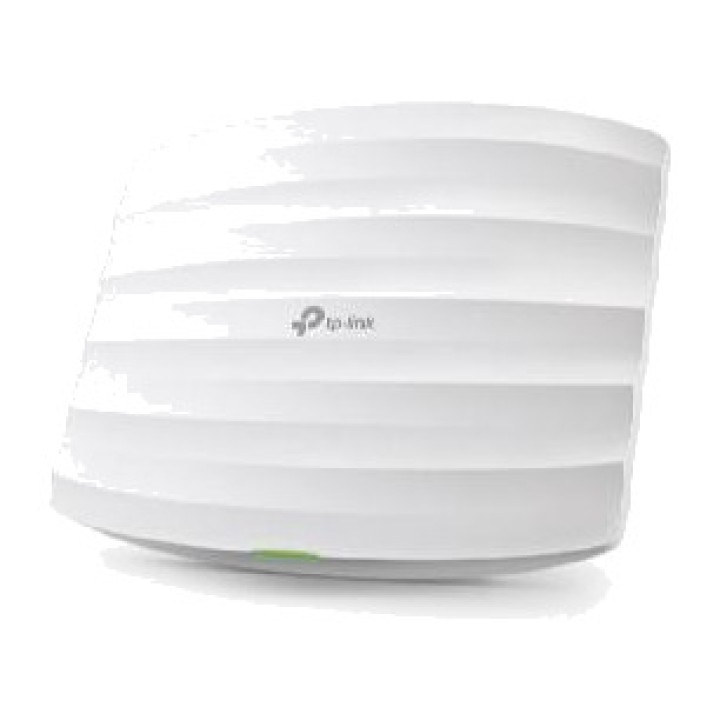

TP-LINK WiFi 5 ceiling access point OMADA AC1750 EAP245

Fast dual-band Wi-Fi: 450 Mbps simultaneous on 2.4 GHz and 1300
Mbps on 5 GHz add up to Wi-Fi speeds of 1750 Mbps.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), centralized
centralized cloud and Smart Monitoring.
Centralized management: cloud access and the Omada app for easy
convenience and management.
Seamless roaming: even video streaming and voice calls
are not affected as users move between locations
PoE support: supports both the 802.3af/at standard and passive PoE
(PoE adapter included) for flexible installations.
Secure Guest Network: along with multiple authentication options
(SMS / Facebook Wi-Fi / Voucher, etc.) and abundant wireless security
technologies.

Advanced wireless technology: optimizes network performance with
MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.
Hardware Features
Interface 2 Gigabit Ethernet ports (RJ-45)Supports IEEE802.3af PoE and PoE
Passive* hardware v1 has 1 port, does not support passive PoE (includes
power adapter) and supports PoE 802.3at.
Physical Security Lock Yes
Buttons Reset
Power Supply 802.3af/A PoE
Passive PoE 48V (+4,5pins, -7,8pins. PoE adapter included)
Power Consumption 12.3 W
Dimensions 180*180*47.5mm. (7.1 x 7.1 x 1.9in)
Antenna Type Internal Omnidirectional Antenna
2.4GHz: 3* 3.5dBi
5GHz: 3*4dBi
Mounting Ceiling/Wall Mount (Kit included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz: Up to 1300Mbps
2.4GHz: Up to 450Mbps
Wireless Features Multiple SSIDs Up to 16 SSIDs, 8 per band
Enable/disable Wi-Fi Radio
Automatic Channel Assignment
Transmit Power Control Transmit Power Adjustment in dBm
QoS (WMM)
MU-MIMO
Seamless Roaming
Band Steering
Load balancing
Airtime Fairness
Beamforming
Speed Limit
Reboot Schedule
Wireless Scheduling
Wireless Statistics Based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access control
Wireless MAC address filtering
Wireless Client Isolation
VLAN-to-SSID Mapping
Rogue AP Detection
SUPPORT 802.1X
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Transmit Power CE
<,20dBm(2.4GHz)
<,23dBm(5GHz)
FCC:
<,24dBm(2.4GHz)
<,24dBm(5GHz)
Management
Omada App Yes
Centralized Management Omada Cloud-Based Controller
Omada hardware controller (OC300)
Omada hardware controller (OC200)
Omada software controller
Cloud Access Yes (via OC300, OC200, Omada Cloud Controller or
Omada Software Controller)
Email Alerts Yes
Control LED ON / OFF Yes
MAC Access Control Management Yes
SNMP Yes
Local System Log Access/Remote Syslog System Log
Local/Remote
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Others
CE, FCC, RoHS certifications
Package Contents Dual-Band Wireless Gigabit Access Point
AC1750 MU-MIMO EAP245
Gigabit Passive PoE Adapter
Power supply
mounting kits
Installation guide
System requirements Microsoft Windows XP, Vista, Windows 7, Windows 8,
Windows 10
Environmental Factors Operating Temperature: 0~40
(32~104)
Storage temperature : -40~70 (-40~158)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
For more information about your hardware version, please go to the
support page, and refer to the datasheet for your version.

The maximum wireless signal rates are the physical rates
derived from the IEEE Standard 802.11 specifications. Actual wireless data performance
and wireless coverage are not guaranteed and will vary
as a result of 1) environmental factors, including building materials,
physical objects and obstacles, 2) network conditions, including
local interference, traffic volume and density, product location,
network complexity and network overhead, and 3) client limitations,
including performance, location, connection, quality and condition of the
client.

Zero-Touch Provisioning requires the use of the cloud-based
Omada cloud.

§ Seamless roaming requires clients to support 802.11k
/ v and may require additional configuration. Performance may vary
depending on the client device.
Volume (m ³): 0.0087
