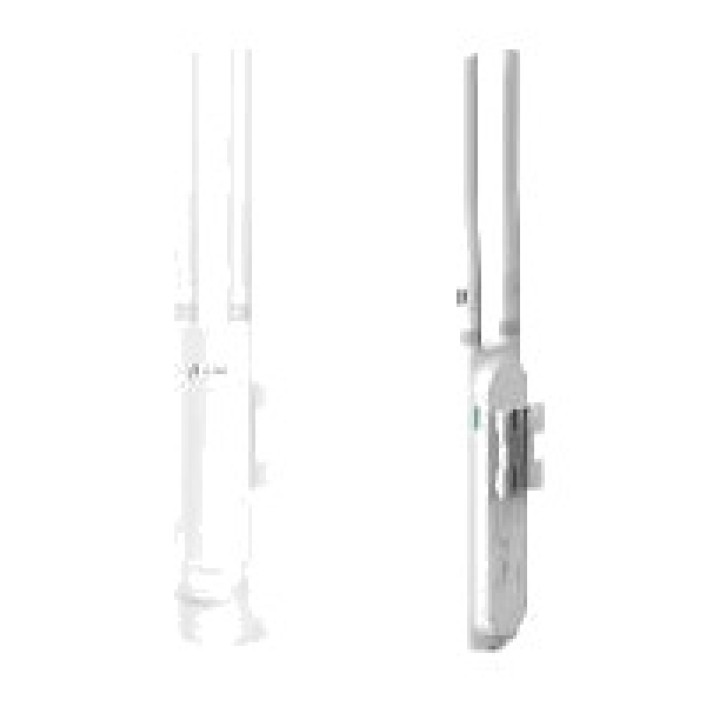

TP-LINK WiFi 5 outdoor access point OMADA AC1200 IP65 EAP225-OUTDOOR

Ideal for outdoor environments: IP65 weatherproof enclosure for
outdoor Wi-Fi applications.
Fast dual-band Wi-Fi: 300 Mbps simultaneous on 2.4 GHz and 867 Mbps on
5 GHz add up to Wi-Fi speeds of 1167 Mbps.
Long-range coverage: dedicated high-power amplifier and professional
antennas together with the latest 802.11ac Wave 2 MU-MIMO technology.
generation.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), centralized
centralized cloud and Smart Monitoring.
Centralized management: cloud access and the Omada app for greater
convenience and easy management.
Omada Mesh technology: enables wireless connectivity between APs for an
extended range, making wireless deployments more
flexible and convenient.
Seamless roaming: even video streaming and voice calls
are not affected as users move between
locations.
PoE support: supports both the 802.3af/at standard and passive PoE
(PoE adapter included) for flexible installations.
Hardware Features
Interface: 1 Gigabit Ethernet port (RJ-45)* (supports 802.3af PoE and passive PoE)
Buttons Reset
Power supply: 802.3af PoE
24V passive PoE (+4,5 pins, -7,8 pins. PoE adapter included)
Power Consumption 10.5W
Dimensions 215 46 27 mm (8.5 1.8 1.1in.)
Antennas 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi
Weatherproof Enclosure IP65
Mounting Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz, 5GHz
Signal Rate 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2
VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Features Multiple SSIDsUp to 16 SSIDs, 8 per band
Wireless Radio On/Off
Automatic Channel Assignment
Transmit Power ControlAdjustment in dBm
QoS (WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load balancing
Speed Limit
Scheduled Reboot
Scheduled Wireless
Wireless Statistics by SSID/AP/Client
Wireless Security Captive Portal Authentication
Access control
Wireless MAC Address Filtering
Wireless client isolation
VLAN Mapping to SSID
Unauthorized AP Detection
SUPPORT 802.1X
Transmit Power CE: <,20dBm(2.4GHz,EIRP),<,23dBm(5GHz,EIRP)
FCC:<,23dBm(2.4GHz, EIRP),<,22dBm(5GHz, EIRP)
Management
Omada App Yes
Centralized Management Omada Cloud-Based Controller
Omada hardware controller (OC300)
Omada hardware controller (OC200)
Omada software controller
Cloud Access Yes
Email Alerts Yes
MAC Access Control Management Yes
SNMP v1, v2c
Local System Log/Remote System Log Access Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Others
Certifications CE FCC RoHS
Package Contents Wireless Access Point EAP225-Outdoor
Passive PoE Adapter
Power Cable
Mounting kit
Installation guide
Waterproof Rubber
Waterproof Antenna
Environmental Factors Operating Temperature : -30~70 (-
22~158)
Storage temperature : -40~70 (-40~158)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
For more information about your hardware version, please go to the page
of support, and consult the datasheet for your version.

The maximum wireless signal rates are the physical rates
derived from the IEEE Standard 802.11 specifications. Actual wireless data performance
and wireless coverage are not guaranteed and will vary
as a result of 1) environmental factors, including building materials,
physical objects and obstacles, 2) network conditions, including local interference,
traffic volume and density, product location, network complexity and
network overhead, and 3) client limitations, including client performance,
location, connection, quality and condition.

Zero-Touch Provisioning requires the use of the cloud-based
Omada cloud.

§ Seamless roaming requires clients to support 802.11k / v
and may require additional configuration. Performance may vary depending on the
client device.

Protection against lightning and electrostatic discharge can be achieved
through proper product configuration, grounding and cable
shielding. Refer to the instruction manual and consult an IT professional
to help you configure this product.
Volume (m ³): 0.0038
