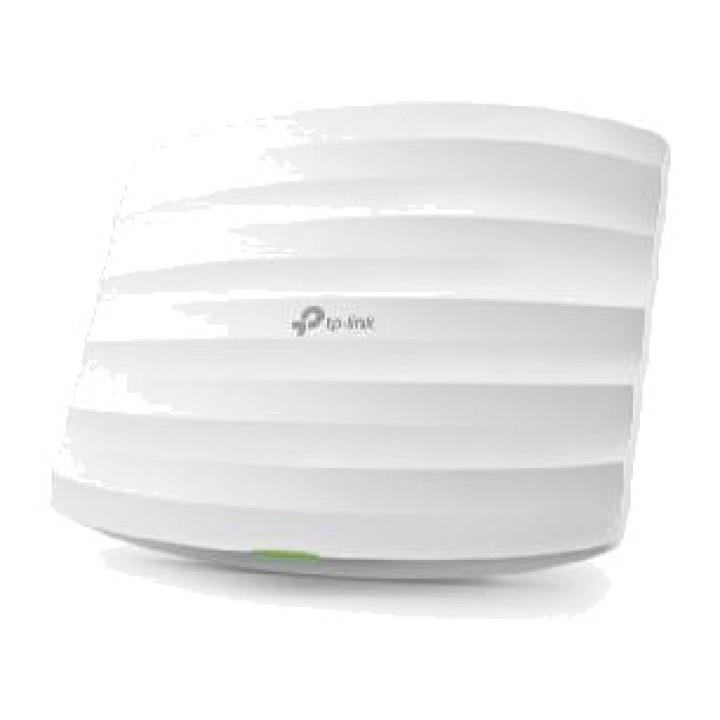

TP-LINK WiFi 5 ceiling access point OMADA AC1350 EAP225

Fast dual-band Wi-Fi: 450 Mbps simultaneous on 2.4 GHz and 867
Mbps on 5 GHz add up to Wi-Fi speeds of 1317 Mbps.
Integrated into Omada SDN: zero-touch provisioning (ZTP),
Centralized cloud management and intelligent monitoring.
Centralized Management: cloud access and Omada app for maximum
convenience and easy management.
Seamless Roaming: even video streaming and
voice calls are unaffected when users move between
locations.§ PoE Support: Supports both the 802.3af / at standard and
passive PoE (PoE adapter included) for flexible installations.
Secure Guest Network: along with multiple authentication options
(SMS / Facebook Wi-Fi / Voucher, etc.) and abundant wireless security
technologies.
Advanced Wireless Technology: Optimize network performance with
MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.
Hardware Features
Interface Gigabit Ethernet Port (RJ-45) 1 (compatible with PoE IEEE802.3af and
Passive PoE)
Physical Security Lock Yes
Buttons Reset
Power Supply 802.3af / at PoE
24 V passive PoE (+ pins 4,5, - pins 7,8. PoE adapter included)
Power Consumption EU: 10.5 W
US: 12.6 W
Dimensions 205.5 181.5 37.1 mm (8.1 7.1 1.5 in)
Antenna Type 3 internal omnidirectional antennas
2.4 GHz: 4 dBi
5 GHz: 5 dBi
Mounting Ceiling / Wall Mount (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz: Up to 867 Mbps
2.4 GHz: Up to 450 Mbps
Wireless Features Multiple SSIDs (up to 16 SSIDs, 8 for each band)
Enable / Disable wireless radio
Automatic channel assignment
Transmission power control (adjust transmission power in dBm)
QoS (WMM)
Seamless roaming
Band steering
Load balancing
MU-MIMO
Airtime fairness
Beamforming
Rate limit
reboot schedule
Wireless schedule
Wireless statistics based on SSID / AP / Client
Wireless Security Captive Portal Authentication
Access control
Wireless MAC address filtering
Wireless client isolation
SSID-to-VLAN mapping
Rogue AP detection
SUPPORT 802.1X
CE Transmission Power:
20 dBm(2.4 GHz, EIRP)
23 dBm(5 GHz, EIRP)
FCC:
24 dBm(2.4 GHz)
22 dBm(5 GHz)
Management
Omada App Yes
Centralized Management Controlador Omada cloud-based
Omada hardware controller (OC300)
Omada hardware controller (OC200)
Omada software controller
Cloud Access Yes (via OC300, OC200, cloud-based controller
Omada or Omada software controller)
Email alerts Yes
LED control ON / OFF Yes
MAC Access Management Control Yes
SNMP v1,v2c
Local System Log Access/Remote Syslog System Log
Local/Remote
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Others
CE, FCC, RoHS certifications
Package Contents Ceiling-mounted wireless access point
MU-MIMO Gigabit AC1350 EAP225
Passive PoE adapter
power cord
mounting kits
Installation guide
System requirements Microsoft Windows XP, Vista, Windows 7, Windows 8,
Windows10, Linux
Environmental Factors Operating Temperature : 040 (32104 )
Storage temperature : -4070 (-40158 )
Operating humidity: 10 to 90% relative humidity, non-condensing
Storage humidity: 590% relative humidity, non-condensing
For more information about your hardware version, please go to the
support page, and refer to the datasheet for your version.

The maximum wireless signal rates are the physical rates
derived from the specifications of the IEEE 802.11 standard. Actual wireless
data throughput and wireless coverage are not guaranteed and
will vary as a result of 1) environmental factors, including building materials,
physical objects and obstacles, 2) network conditions, including
local interference, traffic volume and density, product location,
network complexity and network overhead, and 3) client limitations,
including rated performance, location, connection, quality and
condition of the client.

Zero-Touch Provisioning requires the use of the cloud-based
Omada controller.

§Seamless roaming requires clients to support
802.11k / v and may require additional configuration. Performance may
vary depending on the client device.

The MU-MIMO, Airtime Fairness and Beamforming features, the
specifications for 3 internal Omni antennas, 450 Mbps on 2.4 GHz and Passive
PoE are only supported by EAP225 v 3.
Volume (m ³): 0.0047
