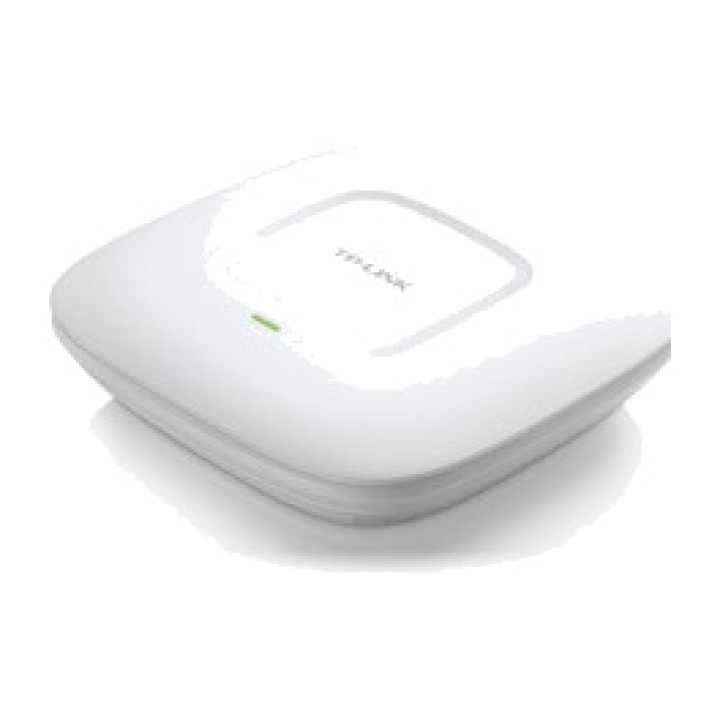

TP-LINK WiFi 4 ceiling access point with PoE OMADA N300 802.3AF EAP115

The Auranet Controller Software allows administrators to manage
hundreds of EAPs easily and free of charge
The simple Cluster Mode allows managing up to 24 (EAP 115) without
the need for any additional hardware or software
Supports PoE power (802.3af) for convenient installation and
PRACTICE
Simple ceiling or wall mounting design
The Captive Portal provides the most suitable authentication method
for Wi-Fi clients
Enterprise-level Wi-Fi security that helps reduce network
security threats
Multi-SSID function divides the signal into multiple wireless networks for
different users

Hardware Features
Interface 1 Fast Ethernet Port (RJ-45) (Supports PoE IEEE802.3af)
Buttons Reset
Power Supply PoE or Power Supply 12VDC / 1A
Power Consumption 5W
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions 180*180*47.5mm (7.1 x 7.1 x 1.9 in.)
Antenna Type 2 Internal 3dBi Omnidirectional Antennas
Mounting Ceiling / Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4–2.4835 GHz
Signal Rate 11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Reception Sensitivity 300M: -71 dBm @10% PER
150M: -75 dBm @10% PER
54M: -78 dBm @10% PER
11M: -93 dBm @8% PER
6M: -92 dBm @10% PER
1M: -96 dBm @8% PER
Multiple Wireless Functions (Up to 8 SSIDs)
Enable/Disable Wireless Broadcasting Automatic Channel Assignment
Transmission Power Control (Adjustable Transmission Power in
dBm) QoS (WMM) Wireless Load Balancing Scheduling Statistics
Wireless statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication Control
Access Control Wireless MAC Address Filtering Wireless Isolation
between Clients SSID-to-VLAN Mapping Unauthorized Access Point Detection
Authorized Supports 802.1X WEP 64/128/152-bit / WPA / WPA2-
Enterprise ,WPA-PSK / WPA2-PSK
CE Transmission Power:
<,20dBm
FCC:
<,26dBm
Management
Auranet Controller Software Yes
Cluster Mode Yes
EAP Controller Software
Email Alerts Yes
Control LED ON / OFF Yes
MAC Access Control Management Yes
SNMP v1,v2c
Local System Log Access/ Remote System Log
Local/Remote System Log
Telnet Yes
Web-based Management HTTP/HTTPS
Others
CE, FCC, RoHS certifications
Package Contents Ceiling Mount Access Point
Wireless N 300Mbps EAP1105 Power Adapter Cable
Power Supply Mounting Kit Installation Guide
System Requirements Microsoft Windows 10/8/7/Vista/XP
Volume (m ³): 0.0046
