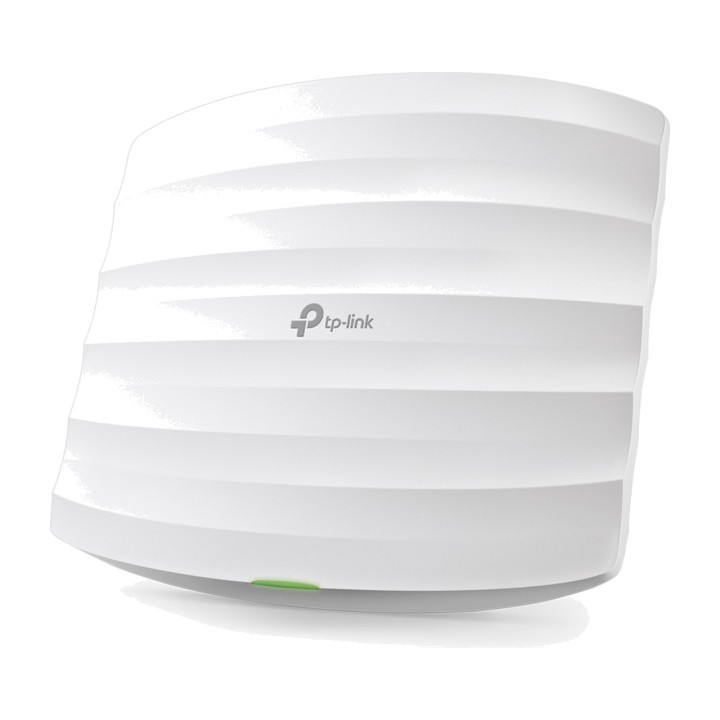

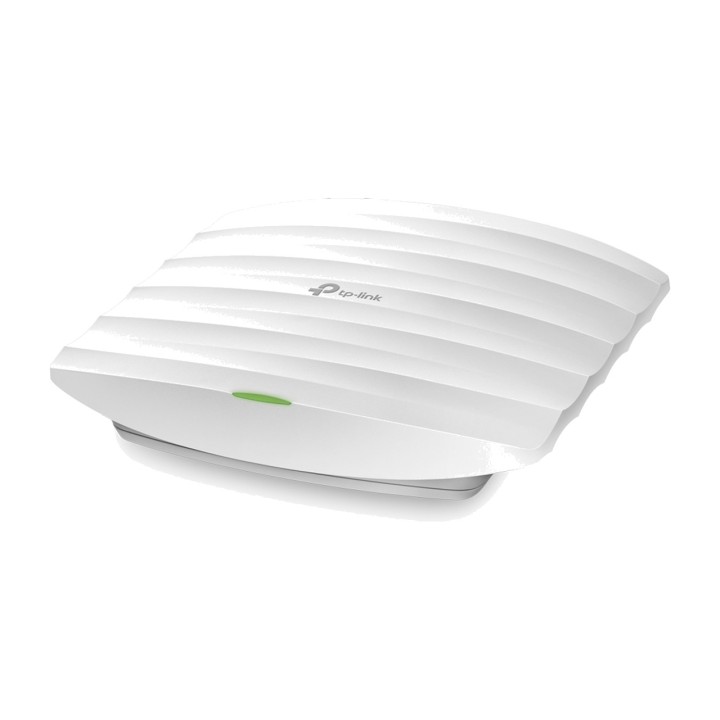

TP-LINK 300 Mbps WiFi 4 ceiling access point with passive PoE OMADA EAP110

300Mbps Wireless N Ceiling Mount Access Point EAP110

The free Omada EAP Controller Software allows administrators
easily manage hundreds of EAPs
Supports passive PoE for installation up to 100 metres away
Ceiling-mount design with chassis, making deployment on a wall
or ceiling very easy
The Captive Portal provides an authentication method for clients
WI-FI
WiFi authentication via Facebook or SMS helps boost your business
Multi-SSID divides the network into multiple wireless networks for different users
Enterprise-level Wi-Fi security helps reduce threats to
network security
Management VLAN support for improved network management

Hardware Features

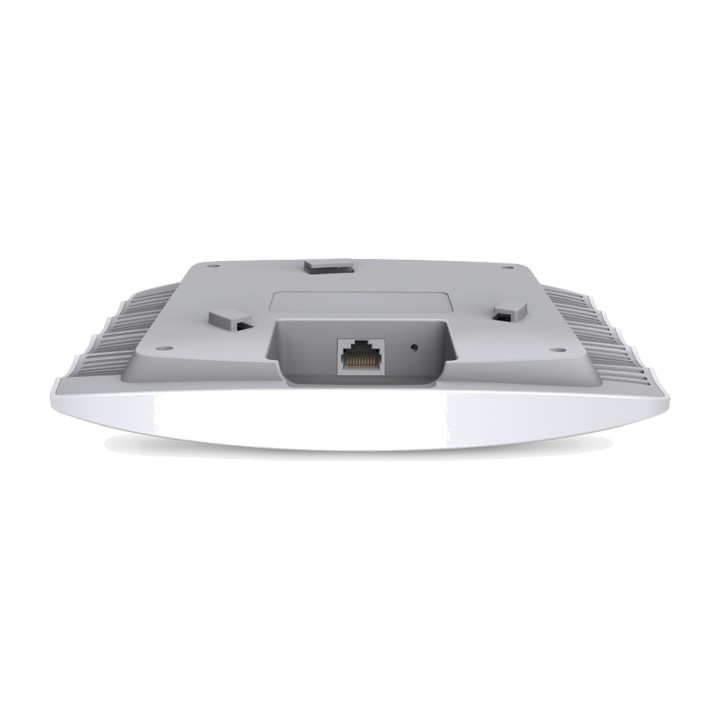

Interface 1*Fast Ethernet port (RJ-45) (Supports Passive PoE)
Buttons Reset
Power Supply Passive PoE adapter 24VDC / 0.5A
Power Consumption 2.8W
Dimensions 189.4172.329.5mm. (7.56.81.2 in.)
Antenna Type 2 Internal 4dBi Omnidirectional
Mounting Ceiling / Wall Mount (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4–2.4835 GHz
Signal Rate 11n: Up to 300 Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Reception Sensitivity 300M: -71 dBm @10% PER
150M: -75 dBm @10% PER
54M: -78 dBm @10% PER
11M: -93 dBm @8% PER
6M: -92 dBm @10% PER
1M: -96 dBm @8% PER
Multiple Wireless Functions SSIDs Up to 8 SSIDs
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjustable Transmit Power in dBm
QoS (WMM)
Speed Limit
Load balancing
Wireless schedule
Wireless Statistics Based on SSID/Access Point/Client
Wireless Security Captive Portal Authentication
Access control
Wireless MAC Address Filtering
Wireless client isolation
SSID-to-VLAN Mapping
Rogue Access Point Detection
Supports 802.1X
64/128/152-bit WEP / WPA / WPA2-Enterprise ,WPA-PSK / WPA2-PSK
CE Transmission Power:
<,19 dBm (EIRP)
FCC:
<,21 dBm
Management
Omada Cloud Access Yes
Omada App Yes
Omada Cloud Controller Yes
Omada Controller Software Yes
Email Alerts Yes
Control LED ON / OFF Yes
MAC Access Control Management Yes
SNMP v1,v2c
Local System Log Access/ Remote System Log Local/
Remote Syslog
Telnet Yes
SSH Yes
Web-based Management HTTP/HTTPS
Management VLAN Yes
Others
CE, FCC, RoHS certifications
Package Contents Wireless Ceiling Mount Access Point
N at 300Mbps EAP110
Passive PoE Adapter,
Power Cable,
Mounting kit
Installation guide
System Requirements Microsoft Windows 8/7/Vista/XP
Environmental Factors Operating Temperature: 0C~40C
(32~104)
Storage temperature : -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0047
