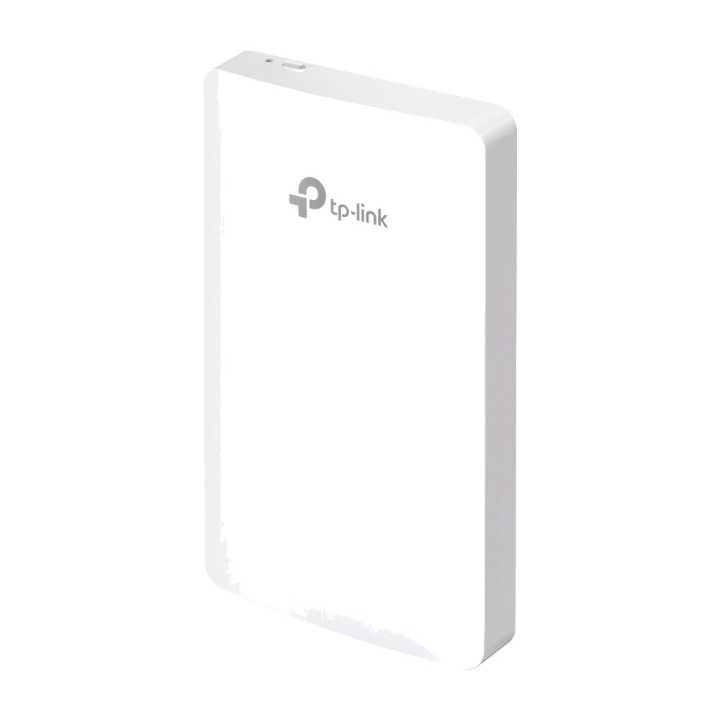

TP-LINK Wall-mounted WiFi 6 access point OMADA EAP615-WALL AX1800 DSP0000043110

Features of the EAP615-Wall AX1800 Wi-Fi 6 Access Point
The EAP615-Wall is a wall-mounted Wi-Fi 6 access point designed to extend and manage wireless networks in offices, hotels, retail stores and other professional environments. It offers combined wireless speeds of up to 1775 Mbps, Gigabit connectivity, PoE power and compatibility with the Omada centralized management platform.
High-speed Wi-Fi 6 AX1800
Thanks to Wi-Fi 6 technology and simultaneous operation on the 2,4 GHz and 5 GHz bands, the EAP615-Wall provides an efficient connection for multiple devices. It reaches up to 1201 Mbps on 5 GHz and up to 574 Mbps on 2,4 GHz, delivering a total speed of up to 1775 Mbps.

Wireless standards: IEEE 802.11ax/ac/n/g/b/a
5 GHz speed: up to 1201 Mbps
2,4 GHz speed: up to 574 Mbps
Combined speed: up to 1775 Mbps
Frequencies: 2,4 GHz and 5 GHz
Specified coverage: up to 50 m²
Specified capacity: more than 120 concurrent clients

Technologies to optimize the wireless connection
The access point incorporates various features designed to improve performance, distribute connected devices and optimize the use of the wireless spectrum. These include MU-MIMO, Beamforming, Band Steering, Airtime Fairness and load balancing.

MU-MIMO
Beamforming
Band Steering
Airtime Fairness
Load balancing
QoS via WMM
Automatic Channel Assignment
Transmit power control in dBm
Speed limiting
Reboot scheduling and wireless schedule
Wireless Statistics

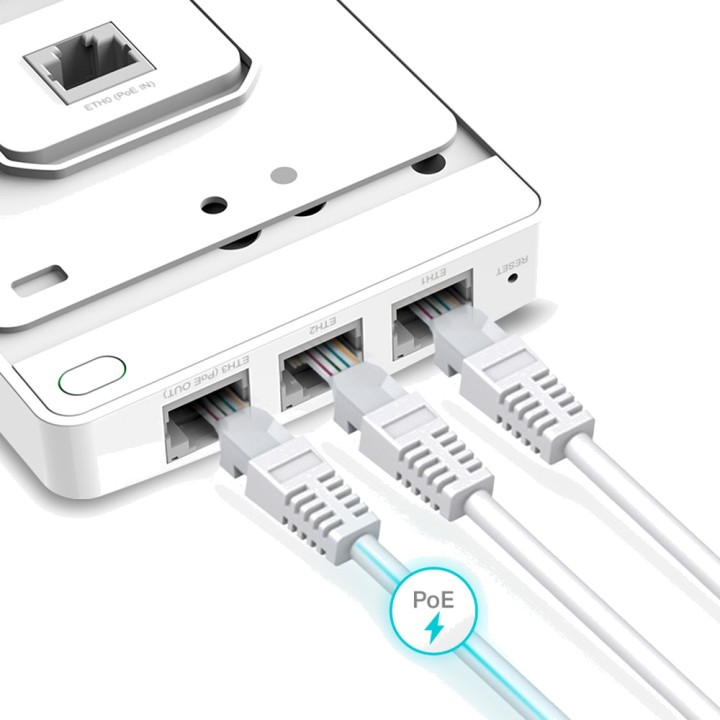

Four Gigabit Ethernet ports
The EAP615-Wall has four Gigabit Ethernet connections: one uplink port and three downlink ports. This configuration provides wired connectivity for nearby devices, while one of the output ports supports PoE OUT when using an 802.3at PoE+ input.

1 10/100/1000 Mbps Ethernet uplink port
3 10/100/1000 Mbps Ethernet downlink ports
1 downlink port compatible with PoE OUT
PoE OUT available with 802.3at PoE+ input power
Maximum PoE pass-through power: 13 W in the EU version

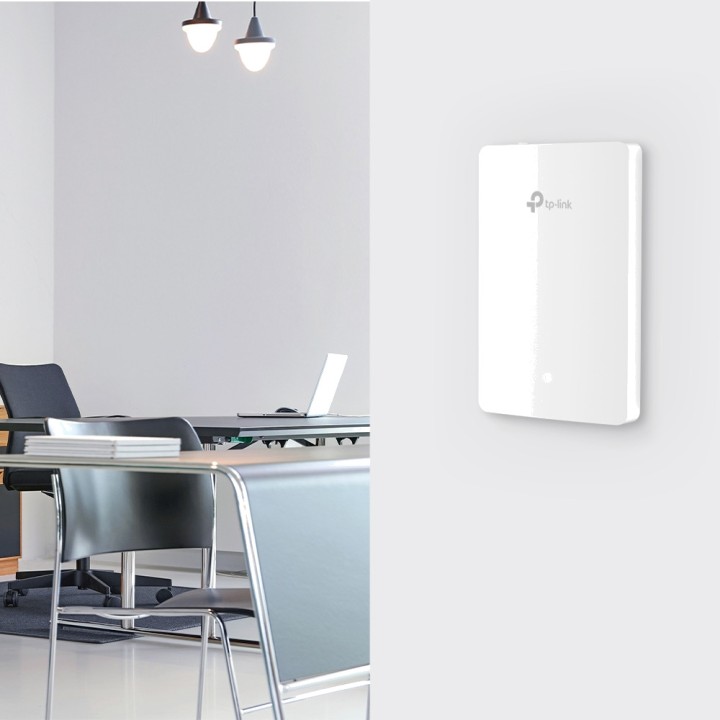

Powered via PoE and wall-mounted
802.3af/at PoE compatibility allows data and power to be transmitted over the same Ethernet cable, simplifying installation by eliminating the need for a separate power outlet next to the device. Its form factor is specifically designed for wall-plate mounting.

Power supply: 802.3af/at PoE
EU power consumption: 10 W with 802.3at PoE and PoE OUT disabled
US power consumption: 11.5 W with 802.3at PoE and PoE OUT disabled

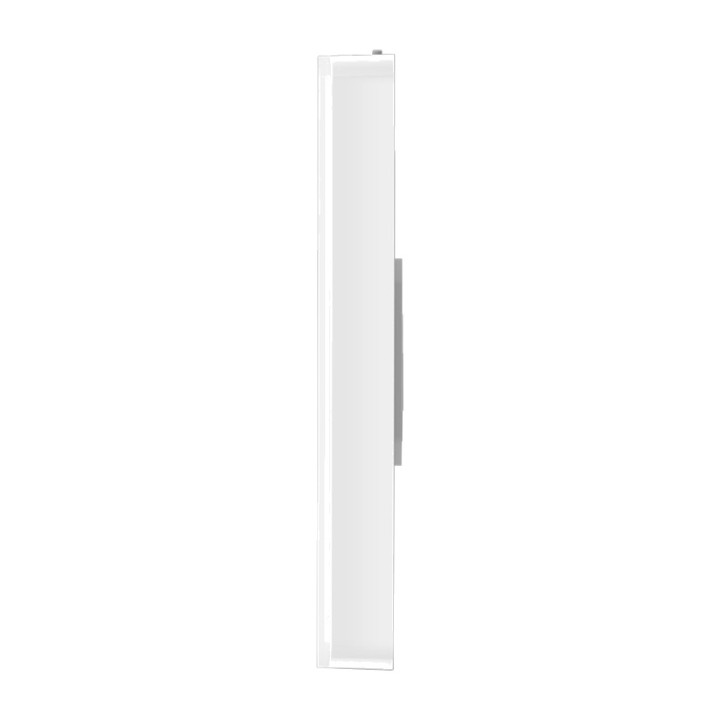

Dimensions: 143 x 86 x 20 mm
Mounting: wall plate
Integrated reset button
Physical security lock

Internal dual-band antennas
The device features two Dual-Band antennas designed to operate on both available wireless bands. The configuration provides a gain of 3 dBi at 2.4 GHz and 4 dBi at 5 GHz.

2 Dual-Band antennas
2.4 GHz: 2 x 3 dBi
5 GHz: 2 x 4 dBi

Centralised management with Omada
The EAP615-Wall can be integrated into the Omada ecosystem to simplify centralised network management, both locally and via cloud access. It is compatible with hardware, software and cloud-based controllers, and can also be managed through the Omada app.

Compatible with Omada App
Omada Cloud-Based Controller
Omada Hardware Controller OC300
Omada Hardware Controller OC200
Omada Software Controller
Cloud access via a compatible Omada controller
Web-based management via HTTP/HTTPS
L3 and multi-site management
Management VLAN
Zero-touch provisioning via Omada Cloud-Based Controller

Advanced management features
To facilitate integration into professional networks, it includes tools for monitoring, remote access and device management. These features make it possible to monitor the access point’s operation and adapt its configuration to different infrastructures.

Email alerts
Turn the LED on and off via management
MAC-based management access control
SNMP v1, v2c and v3
Local and remote Syslog
SSH access

Flexible wireless networks and roaming
The EAP615-Wall lets you configure up to 16 SSIDs, with a maximum of 8 per band, making it easy to separate networks for different users or services. It also supports Omada Mesh and seamless roaming via 802.11k/v/r when used in a compatible infrastructure.

TO 16 SSID
Up to 8 SSIDs per band
Omada Mesh
Seamless roaming via 802.11k/v/r
Wireless radio activation and deactivation
RADIUS Accounting
MAC authentication
Static or dynamic IP configuration

Security and guest network
The access point includes security features to separate users, control access and protect wireless communications. It offers a captive portal and various authentication mechanisms, as well as WPA3 compatibility for personal and enterprise networks.

Authentication via captive portal
Access control
Wireless MAC address filtering
Wireless client isolation
VLAN compatibility
Rogue access point detection
Compatibility with 802.1X
WPA-Personal and WPA-Enterprise
WPA2-Personal and WPA2-Enterprise
WPA3-Personal and WPA3-Enterprise
Authentication options for guest networks

Transmission power
The wireless power of the EAP615-Wall complies with the specifications of the different regions where it is marketed, with separate values for CE and FCC regulations.

CE at 2.4 GHz: less than 20 dBm EIRP
CE at 5 GHz Band 1: less than 23 dBm EIRP
FCC at 2.4 GHz: less than 21 dBm
FCC at 5 GHz Band 1: less than 21 dBm
FCC at 5 GHz Band 4: less than 21 dBm

Compatibility, certifications and environmental conditions
The EAP615-Wall is CE- and FCC-certified and is compatible with various operating systems for management. It is designed to operate in environments with temperatures between 0 and 40 °C.

Certifications: CE and FCC
Compatible systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11 and Linux
Operating temperature: 0 to 40 °C
Storage temperature: -40 to 70 °C
Operating humidity: 10% to 90% RH, non-condensing
Storage humidity: 5% to 90% RH, non-condensing

PACKAGE CONTENT
The package includes the items required to mount the EAP615-Wall access point in a compatible installation.

EAP615-Wall
Installation guide
Mounting kit
Volume (m ³): 0.0060
