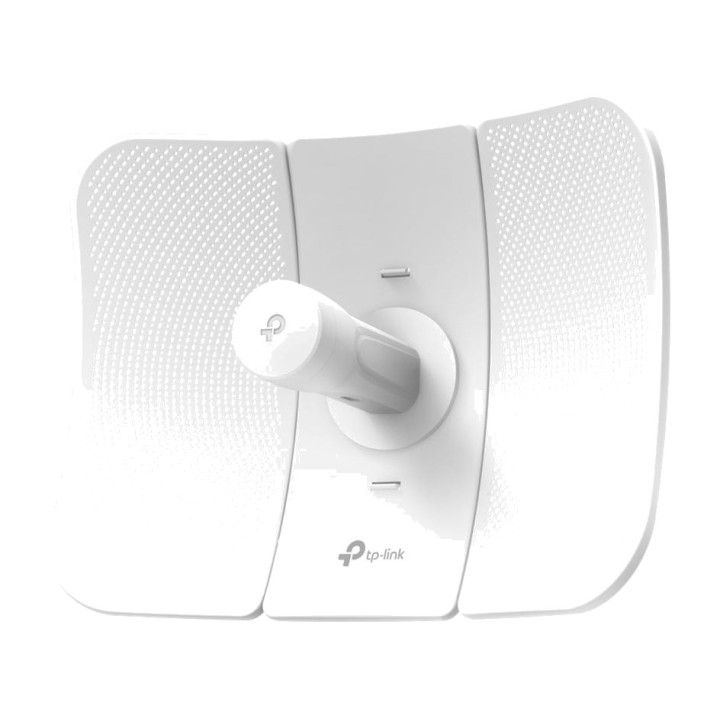

TP-LINK 5 GHz outdoor CPE access point PHAROS-CPE610 300MBPS 23DBI DSP0000039631
Price:
€86.07
Tax included
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosFeatures of the TP-Link CPE610 Outdoor 5GHz 300Mbps 23dBi CPE
The TP-Link CPE610 is a professional networking solution designed for long-distance wireless links in outdoor environments. Thanks to its high-gain directional antenna and advanced technologies such as Pharos MAXtream TDMA, it delivers a stable, efficient, high-performance connection, ideal for WISP deployments, video surveillance or connecting networks between buildings.
Long-range wireless connectivity
Equipped with a 23dBi 2x2 MIMO directional antenna, this device is designed to cover long distances with a stable, low-latency signal. Its optimized design improves beam directivity and reduces interference.
Wireless speed of up to 300Mbps at 5GHz
Range of up to 30 km under optimal conditions
Operating frequency: 5.15 ~ 5.85 GHz
Adjustable transmission power of up to 29dBm
High-gain, precision antenna
The integrated antenna and its metal reflector enable focused, efficient transmission, improving performance on point-to-point links and reducing ambient noise.
Antenna gain: 23dBi
Beamwidth: 9° (azimuth), 7° (elevation)
TECHNOLOGY MIMO 2x2
Durable design for outdoor use
The CPE610 is designed to operate in demanding conditions thanks to its weather-resistant enclosure and advanced electrical protection, ensuring stable operation in any environment.
IP65-rated, water- and dust-resistant
ESD protection up to 15kV
Lightning protection up to 6kV
Temperature range: -40°C to 70°C
Pharos MAXtream TDMA technology
TP-Link’s proprietary MAXtream TDMA technology significantly improves performance in scenarios with multiple devices, optimizing capacity, reducing latency and increasing throughput.
Greater efficiency in congested networks
Reduced interference
Improved transmission latency
Flexible installation with passive PoE
Thanks to passive PoE support, deploying the device is simpler and more flexible, allowing power and data to be transmitted through a single Ethernet cable.
24V passive PoE power supply included
Range of up to 60 metres over cable
Efficient energy consumption of 8.8W
Advanced management and versatile configuration
Includes professional management tools such as Pharos Control and web access, facilitating remote control and real-time system monitoring.
Modes: AP, Client, Bridge, Repeater, WISP Router
Free centralized management with Pharos Control
SNMP, SSH, HTTP/HTTPS support
Tools: spectrum analyser, speed test, ping and traceroute
Hardware optimised for high performance
The device integrates quality components that ensure stable, continuous operation, even in demanding deployments.
560MHz Qualcomm CPU
64MB RAM and 8MB Flash
Shielded 10/100Mbps Ethernet port
Dimensions: 366 x 280 x 207 mm
Other specifications
Wireless standards: IEEE 802.11a/n
Adjustable channel width: 5/10/20/40MHz
Security: WPA/WPA2, WPA-PSK/WPA2-PSK, WEP 64/128/152-bit
Network functions: DHCP, PPPoE, L2TP, PPTP, VLAN, QoS
Access control, SPI firewall and DoS protection
Contents: CPE, PoE adapter, power cable, mounting kit
Compatible with Windows, macOS and Linux
Operating humidity: 10%~90% non-condensing
Volume (m ³): 0.0090
The TP-Link CPE610 is a professional networking solution designed for long-distance wireless links in outdoor environments. Thanks to its high-gain directional antenna and advanced technologies such as Pharos MAXtream TDMA, it delivers a stable, efficient, high-performance connection, ideal for WISP deployments, video surveillance or connecting networks between buildings.
Long-range wireless connectivity
Equipped with a 23dBi 2x2 MIMO directional antenna, this device is designed to cover long distances with a stable, low-latency signal. Its optimized design improves beam directivity and reduces interference.
Wireless speed of up to 300Mbps at 5GHz
Range of up to 30 km under optimal conditions
Operating frequency: 5.15 ~ 5.85 GHz
Adjustable transmission power of up to 29dBm
High-gain, precision antenna
The integrated antenna and its metal reflector enable focused, efficient transmission, improving performance on point-to-point links and reducing ambient noise.
Antenna gain: 23dBi
Beamwidth: 9° (azimuth), 7° (elevation)
TECHNOLOGY MIMO 2x2
Durable design for outdoor use
The CPE610 is designed to operate in demanding conditions thanks to its weather-resistant enclosure and advanced electrical protection, ensuring stable operation in any environment.
IP65-rated, water- and dust-resistant
ESD protection up to 15kV
Lightning protection up to 6kV
Temperature range: -40°C to 70°C
Pharos MAXtream TDMA technology
TP-Link’s proprietary MAXtream TDMA technology significantly improves performance in scenarios with multiple devices, optimizing capacity, reducing latency and increasing throughput.
Greater efficiency in congested networks
Reduced interference
Improved transmission latency
Flexible installation with passive PoE
Thanks to passive PoE support, deploying the device is simpler and more flexible, allowing power and data to be transmitted through a single Ethernet cable.
24V passive PoE power supply included
Range of up to 60 metres over cable
Efficient energy consumption of 8.8W
Advanced management and versatile configuration
Includes professional management tools such as Pharos Control and web access, facilitating remote control and real-time system monitoring.
Modes: AP, Client, Bridge, Repeater, WISP Router
Free centralized management with Pharos Control
SNMP, SSH, HTTP/HTTPS support
Tools: spectrum analyser, speed test, ping and traceroute
Hardware optimised for high performance
The device integrates quality components that ensure stable, continuous operation, even in demanding deployments.
560MHz Qualcomm CPU
64MB RAM and 8MB Flash
Shielded 10/100Mbps Ethernet port
Dimensions: 366 x 280 x 207 mm
Other specifications
Wireless standards: IEEE 802.11a/n
Adjustable channel width: 5/10/20/40MHz
Security: WPA/WPA2, WPA-PSK/WPA2-PSK, WEP 64/128/152-bit
Network functions: DHCP, PPPoE, L2TP, PPTP, VLAN, QoS
Access control, SPI firewall and DoS protection
Contents: CPE, PoE adapter, power cable, mounting kit
Compatible with Windows, macOS and Linux
Operating humidity: 10%~90% non-condensing
Volume (m ³): 0.0090
- Brand
- TP-LINK
- Reference
- DSP0000039631
- EAN-13
- 6935364081027
- Weight
- 5 kg
