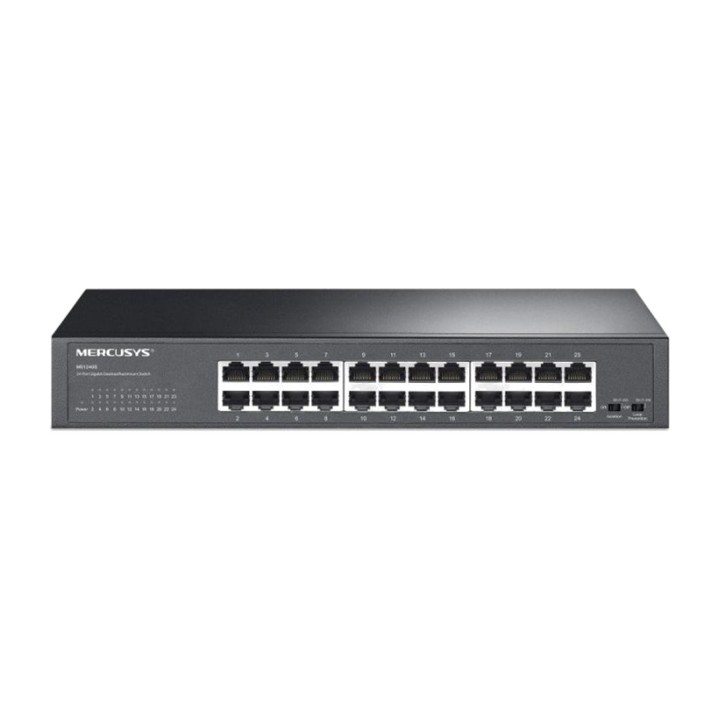

MERCUSYS 24-port unmanaged Gigabit switch MS124GS MGS0000030561

Features of the Mercusys Unmanaged Switch MS124GS 24P
The **Mercusys MS124GS** is an unmanaged switch designed for network environments that require **high speed, stability and ease of use**. With its **24 Gigabit RJ45 ports**, it delivers ideal performance for offices, small businesses and demanding home networks. Its metal, rack-mountable design, together with advanced features such as **port isolation** and **loop prevention**, makes it an efficient and durable solution for distributing network traffic with ease.
24 Gigabit ports for maximum speed
This switch provides **24 10/100/1000 Mbps Ethernet ports** with auto-negotiation, automatically adapting to different connection speeds. With its high switching capacity of **48 Gbps**, it enables smooth transmission of large data files such as **backups, 4K video or large file transfers**, without bottlenecks.

24 10/100/1000 Mbps RJ45 ports
Auto-Negotiation and Auto MDI/MDIX
Switching capacity: 48 Gbps

Smart features for a more stable network
Although it is an unmanaged switch, it includes advanced features such as **port isolation mode**, which improves security between connected devices, and **loop prevention**, which helps prevent interruptions caused by network configuration errors. All this without requiring prior configuration or additional software.

Isolation mode to separate client traffic
Loop prevention for greater stability
802.1P/DSCP QoS support to prioritize traffic

Metal, rack-mountable design
The MS124GS features a **robust metal casing** that enables efficient passive heat dissipation, extending the device’s service life. It supports **desktop or rack (1U) mounting**, making it versatile for different types of installations.

Dimensions: 294 × 140 × 44 mm
Rack-compatible design (1U)
Passive cooling, no fans

Plug and Play: easy to install
This switch is designed for quick, hassle-free installation. Simply connect it to your network and start using it: **no configuration, no drivers and no tools**. Ideal for anyone who needs a reliable solution that can be deployed quickly.

No configuration required (Plug and Play)
Internal power supply 100-240VAC
LED status and activity indicators

Other specifications

MAC address table: 8K
Standards: IEEE 802.3i/u/ab/x, IEEE 802.1p
Transfer method: Store and Forward
Certifications: CE, RoHS
Operating temperature: 0°C to 40°C
Operating humidity: 10% to 90% non-condensing
Volume (m ³): 0.0065
