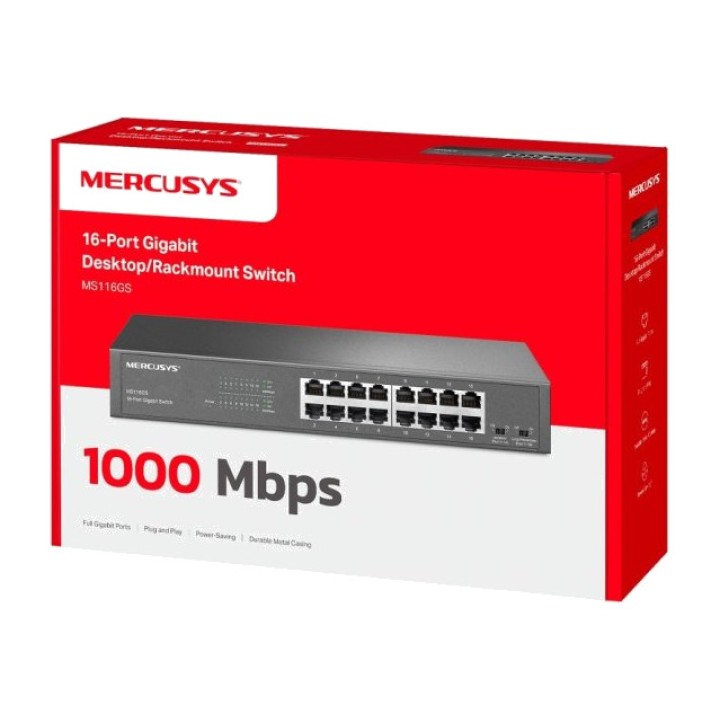

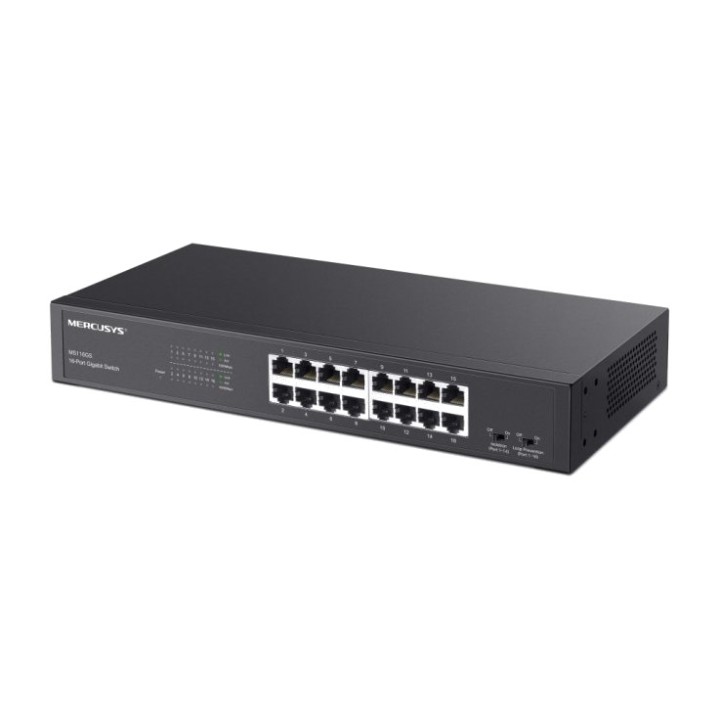

MERCUSYS 16-Port Unmanaged Gigabit Switch MS116GS MGS0000030560

Features of the Mercusys Unmanaged Switch MS116GS
The Mercusys MS116GS is an unmanaged switch designed for environments that require a fast, reliable and simple connection. With 16 Gigabit Ethernet ports and a durable metal housing, it offers robust performance and versatile installation, making it ideal for both small offices and advanced home networks. Its silent operation and non-blocking switching capacity make it an efficient and durable option for managing large volumes of network traffic.
Stable, high-performance Gigabit connectivity
This switch features 16 10/100/1000 Mbps RJ45 ports with Auto-Negotiation, enabling transmission speeds up to 10 times faster than Fast Ethernet. Its non-blocking architecture ensures smooth data transmission even on high-demand networks.

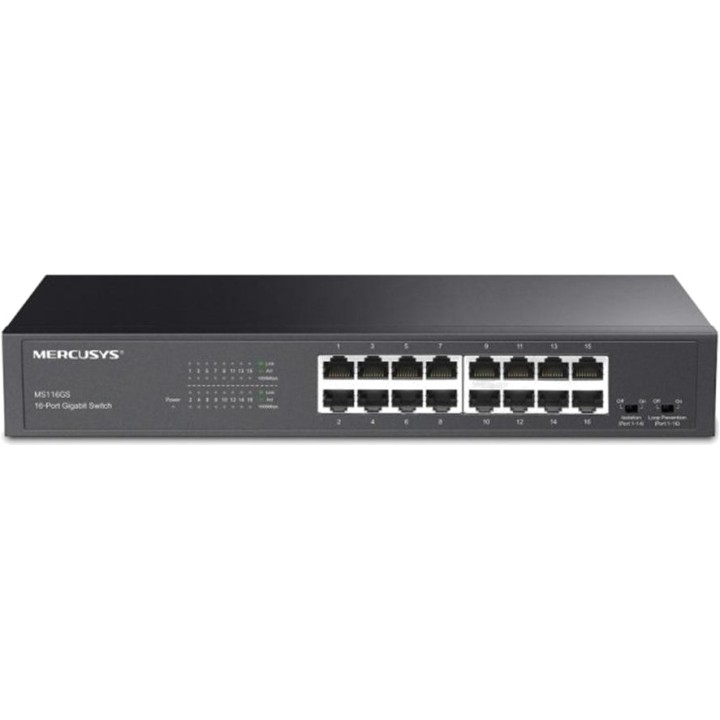

16 Gigabit RJ45 ports with Auto MDI/MDIX
32 Gbps switching capacity
Store-and-Forward transfer method

Enhanced security with port isolation
Thanks to its Isolation Mode function, the Mercusys MS116GS lets you isolate ports 1 to 14 with a single click, enhancing security by preventing snooping between connected devices. It also features loop prevention, automatically detecting and blocking connections that could compromise network stability.

Ports 1–14 isolation for enhanced security
Automatic network loop prevention
IEEE 802.3X flow control and QoS support S 802.1P/DSCP

Metal design and silent operation

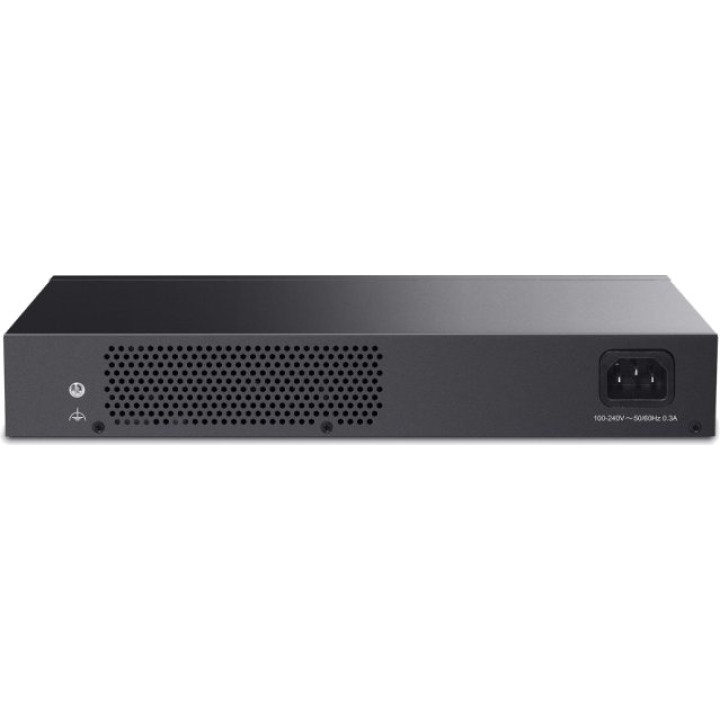

Built with a durable metal casing, this switch is designed to provide effective heat dissipation and silent, fanless operation. Its versatile design allows for both desktop and rack mounting, making it easy to adapt to different installation environments.

Fanless design for silent operation
Desktop or rack mounting
CE and RoHS certifications

Quick installation with no configuration
As an unmanaged switch, the MS116GS is ready to use straight out of the box. Simply connect it to the network and get started. Ideal for anyone looking for a hassle-free plug & play solution with no technical setup required.

Plug & Play: no configuration required
Integrated energy-efficient technology
Includes power adapter and installation guide

Other specifications

MAC address table: 8K
Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p
Dimensions: 294 x 140 x 44 mm
Power supply: 100–240VAC, 50/60Hz (internal)
Volume (m ³): 0.0065
