MERCUSYS 4G LTE router with dual-band Wi-Fi MB130-4G AC1200 MGS0000024586

Highlights

4G network: enjoy 4G LTE download speeds of up to 150 Mbps
Insert a SIM card and play: no configuration required; SIM card compatibility is guaranteed by years of field testing
1200 Mbps dual-band WiFi. Fast WiFi speeds of up to3.00 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band
Simultaneous connection: share Internet access with up to 32 Wi-Fi devices

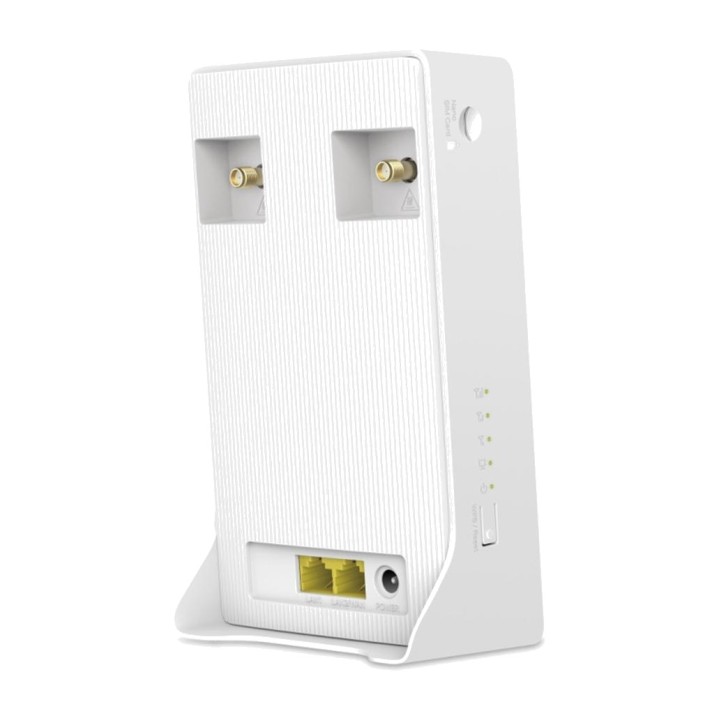

External antenna ports: connect your 4G/3G antennas to improve network signal
Wi-Fi router mode: connect an Ethernet cable to the LAN / WAN port for flexible access if you cannot get a connection 4G

4G LTE with dual-band WiFi AC1200 for a fast network
Dual-band 4G LTE wireless router AC1200

Insert your Nano SIM card and play
Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide. Insert a nano SIM card and turn on the router to share your 4G LTE network with multiple Wi-Fi devices.

Notes: Make sure your SIM card is unlocked. If it is not, you can
a. Configure the router through the MERCUSYS app and follow the app instructions to unlock your SIM card.
b. Log in to the router’s web administration page and go to Network > PIN Management > Advanced to verify.

Get Wi-Fi wherever you need it
Enjoy unparalleled convenience and versatility, and use fast, stable Wi-Fi whether you’re at home or working remotely.

Ultra-fast 4G LTE speeds for a reliable Wi-Fi connection
Operating as a 4G router, the MB130-4G uses 4G LTE technology to achieve super-fast download speeds of up to 150 Mbps and 50
Mbps upload. It can also share dual-band Wi-Fi with speeds of 867 Mbps on 5 GHz for bandwidth-intensive tasks such as HD streaming and gaming, and 300 Mbps on 2.4 GHz
for web browsing, email and social media.

Share Wi-Fi with your friends
A remarkable number of wireless devices are compatible with this 4G router without any issues. Up to 64 simultaneous connections
for tablets, laptops, mobile phones and other devices.

Packed with a strong, stable signal
The high-gain internal antennas strengthen the Wi-Fi signal, extend the connection range and increase the router’s sensitivity. In addition, by connecting your additional 4G antennas to the external antenna ports,
you can strengthen the signal even further.

WAN connection backup available
With a fully functional WAN/LAN port, the MB130-4G can work as a router compatible with cable modems,
fiber and DSL, or provide Internet access for wired devices. Reliable access is available for up to 64 devices simultaneously.

Note: When the router is set to Wireless Router mode, the port can be used as a WAN port to connect a DSL/cable modem or Ethernet output. To switch to
this mode, see Configuring the router in wireless router mode. (Refer to the steps in the User Guide.)

Easy setup and management via the MERCUSYS app
Set up and manage your Wi-Fi through the MERCUSYS app on your smartphone (Android, iOS).

Maximum wireless signal rates are the physical rates derived from the IEEE 802.11 standard specifications. Actual wireless data throughput and wireless coverage, as well as the number of devices
connected are not guaranteed and will vary as a result of network conditions, client limitations and environmental factors, including building materials, obstacles, the volume and density of traffic
and the client location.
Maximum 4G download speeds depend on external factors such as local 4G network coverage, data plan, real-time network capacity, client limitations and environmental factors.
WAN connection
Ethernet WAN Yes
DSL WAN No
SIM card slot Yes
Compatible with 3G / 4G USB modem Yes
CONNECTION TYPE WAN RJ-45
Wireless LAN features
Wi-Fi band Dual band (2.4 GHz / 5 GHz)
Wi-Fi standard Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max.) 867 Mbit/s
Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Connection
Ethernet Yes
Ethernet LAN interface type Ethernet
Ethernet LAN data transfer rate 10,100 Mbit/s
Port triggering Yes
Dynamic DNS Yes
Mobile networks
Mobile network generation 4G
Dual SIM support No
Standards 3G HSPA+, UMTS
STANDARD 4G LTE-TDD & LTE-FDD
SIM card type NanoSIM
Ports and Interfaces
Ethernet LAN (RJ-45) ports quantity 2
USB port No
DC-in jack Yes
Management features
Wi-Fi Multimedia (WMM)/(WME) Yes
Reset button Yes
WPS push-button security Yes
SECURITY
Supported security algorithms WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall Yes
DMZ support Yes
Protocols
DHCP, client Yes
DHCP, server Yes
Universal Plug and Play (UPnP) Yes
VoIP protocols IPv4, IPv6
Design
Product type Desktop router
Product colour White
Indicator light Yes
Antenna
Antenna design Internal
Antenna type 2x2
Characteristic
Upgradable firmware Yes
Power control
Output voltage 12 V
Output current 1 A
Environmental conditions
Relative humidity range during storage 5 - 90%
WEIGHT AND DIMENSIONS
Height 166 mm
Volume (m ³): 0.0030
