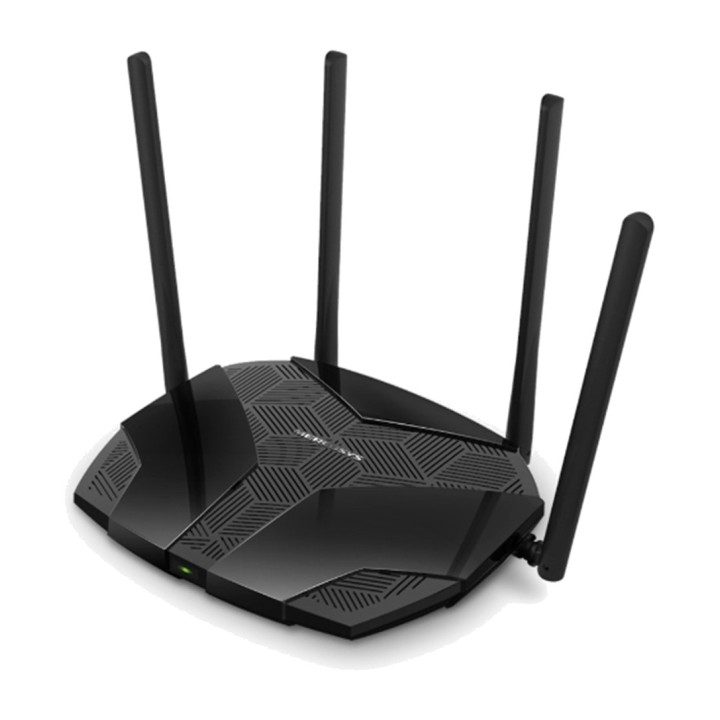

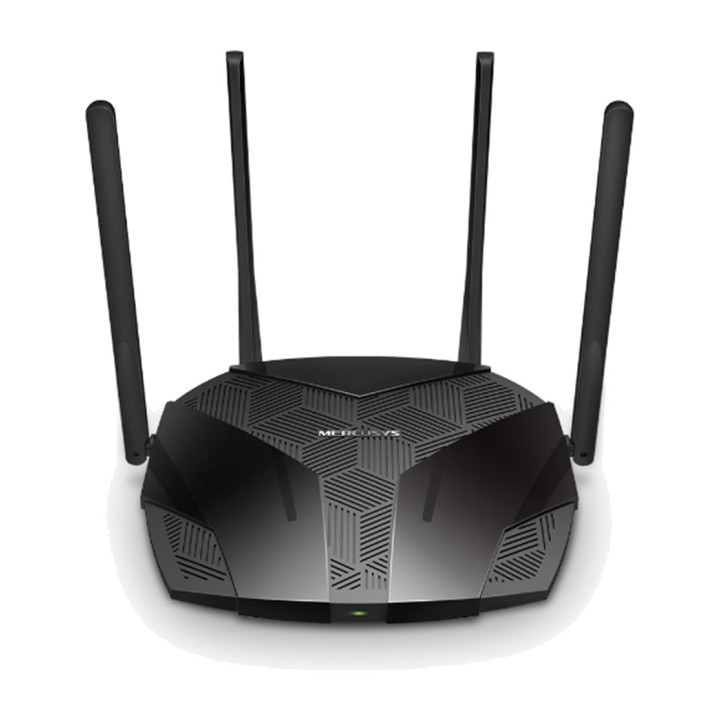

MERCUSYS Dual-band Wi-Fi 6 router with 4 antennas MR80X AX3000 MGS0000019347

Dual-band Wi-Fi 6 router AX3000

OPTIMAL 6-SPEED WIFI: Optimal 6-speed WiFi reaches up to 3 Gbps for faster browsing, streaming and downloading, all at the same time.
MORE DEVICES, MORE FUN: supports MU-MIMO and OFDMA to reduce congestion and quadruple average throughput.
WIFI THAT REACHES FURTHER: 4 high-gain multidirectional antennas with Beamforming increase stable connections throughout your home for strong WiFi signals in every corner.
Comprehensive security protection: the latest WPA3 provides enhanced WiFi security
Gigabit wired connections: make the most of your Internet access and transfer data at lightning-fast speeds for maximum performance
ECO-FRIENDLY ENERGY SAVING: Target Wake Time (TWT) reduces the power consumption of your mobile and IoT devices during data transmissions
LESS WIFI INTERFERENCE: minimizes interference from neighboring signals to improve transmission efficiency with BSS coloring
SMART CONNECT: intelligently selects the best available band for each device
Wireless

Wireless standards

Compatible with Wi-Fi 802.11ax/ac/a/b/g/n standards
WiFi speeds

2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Receive sensitivity

11g 6Mbps: -97dBm
11g 54Mbps: -79dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8:-75dBm
11ac VHT40 MCS9:-71dBm
11ac VHT80 MCS9:-67dBm
11ax HE20 MCS11:-67dBm
11ax HE40 MCS11:-64dBm
11ax HE80 MCS11:-61dBm
Transmission power

2.4 GHz <, 20 dBm (EIRP)
5 GHz <, 23 dBm (band 1, band 2)
5 GHz <, 30 dBm (band 3)
Wireless security

WPA/WPA2-Personal, WPA2/WPA3-Personal

WPA2-Enterprise, WPA/WPA2-Enterprise
WIRELESS FEATURES

Enable/disable wireless radio, WMM

SOFTWARE

WAN type

Dynamic IP/Static IP/PPPo E/L2TP/PPTP
Management

Access control
Local Management
Remote Management
DHCP

Server, DHCP client list
NAT Forwarding

Port forwarding, port triggering, UPnP, DMZ
Firewall security

SPI firewall, IP and MAC address binding
Guest network

2.4 GHz guest network, 5 GHz guest network
VPN server

OpenVPN/PPTP/L2TP/IPSec VPN server and clients

Hardware

DIMENSIONS

8.2 6.8 1.6 inches
(208.8 171.6 41.7 millimeters)

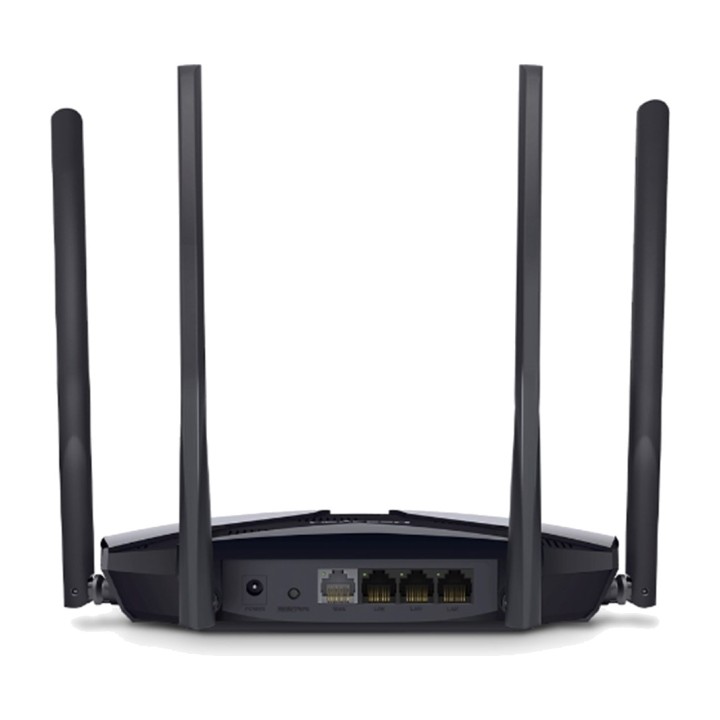

Interfaces

1 Gigabit WAN Port + 3 Gigabit LAN Ports
Button

Reset/WPS button
Antenna type

4 fixed 5 dBi omnidirectional antennas

Others

package contents

Wi-Fi router 6 AX3000 MR80X
Power adapter
Quick installation guide
Ethernet cable RJ45
Environment

Operating temperature : 0C~40C (32F~104F)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0079
