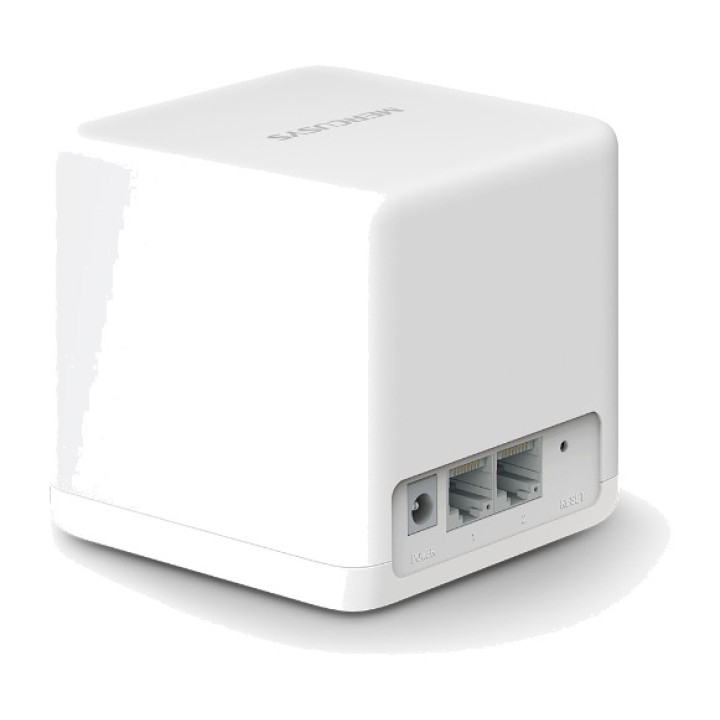

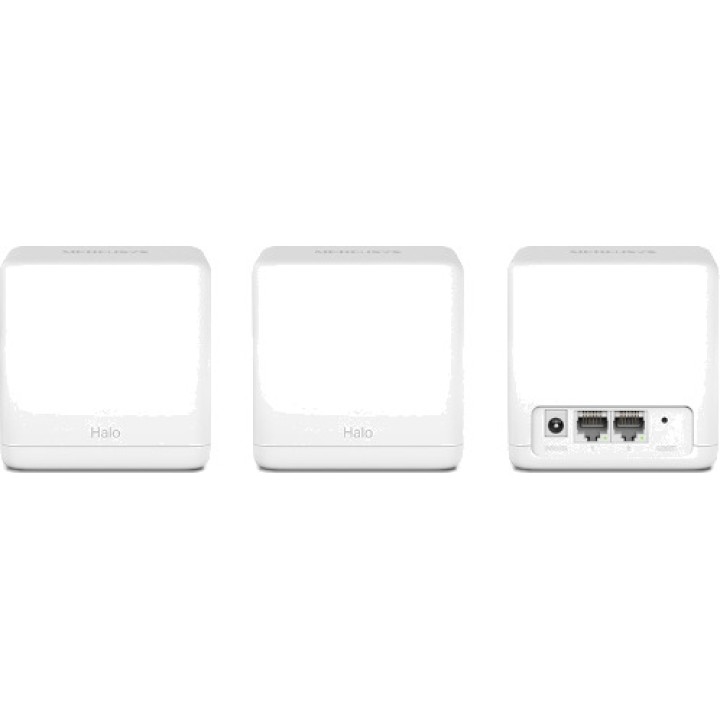

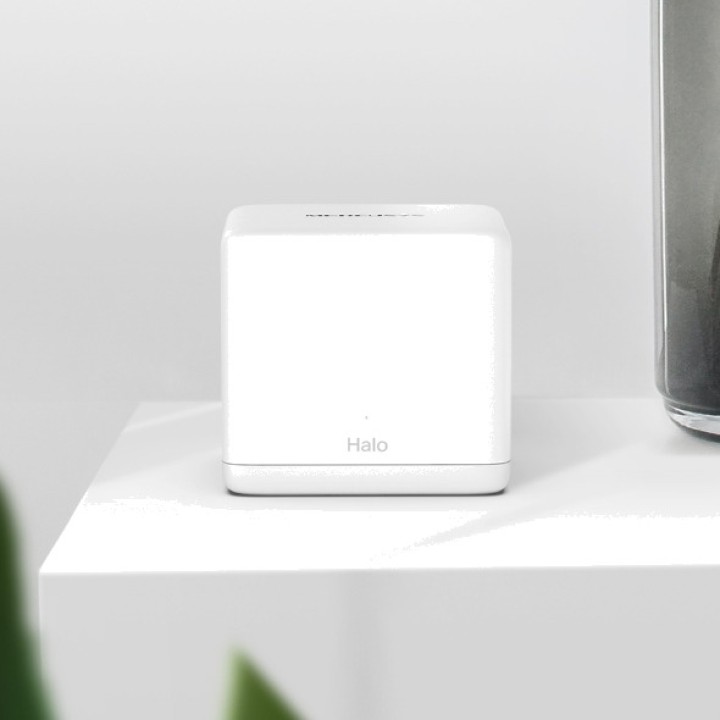

MERCUSYS Dual-band mesh Wi-Fi system HALO-H30G AC1300 3 UDS MGS0000012052

Halo H30G
Whole-home mesh Wi-Fi system AC1300

A unified network: with advanced mesh technology, Halo units work
together to form a single unified home network with one name and
Wi-Fi password.

Seamless roaming: automatically switches between Halos as you move around
your home, always getting the best signal for the fastest connections for all your
fast for all your devices.

Whole-home coverage: cover up to 320 m (3500 ft) with high-speed Wi-Fi,
eliminating Wi-Fi dead zones in your home.

1.3 Gbps dual-band WiFi: Halo H30G provides fast and
stable connections for up to 100 devices, with speeds of up to 1300 Mbps, and works
with major Internet service providers (ISPs) and modems.

Easy app control: use the MERCUSYS app to quickly set up and
manage your WiFi.

Full Gigabit ports: 2 Gigabit ports per Halo unit for ultra-fast wired
connections

*Please note that the Halo H series and the S series cannot work together.


Wireless

Wireless standards

IEEE 802.11 a/n/ac 5 GHz, IEEE 802.11 b/g/n 2.4 GHz
WiFi speeds

867 Mbps at 5 GHz, 400 Mbps at 2.4 GHz
Receive sensitivity

2,4 GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11n HT20 MCS7:-76dBm
11n HT40 MCS7:-73dBm
5 GHz:
11a 6Mbps:-95dBm
11a 54Mbps:-77dBm
11ac VHT20 MCS8:-72dBm
11ac VHT40 MCS9:-67dBm
11ac VHT80 MCS9:-63dBm
Transmission power

2.4 GHz <,20dBm (EIRP)
5 GHz <, 23dBm (EIRP)
Wireless security

WPA-PSK/WPA2-PSK
Mesh protocol

802.11k/v/r

SOFTWARE

Operating modes

Router, access point
Quality of service

MMM
WAN type

Dynamic IP/Static IP/PPPo E/L2TP/PPTP
administration

Local management, remote management, multi-manager
DHCP

Server, client
Firewall security

SPI firewall
Protocols

Supports IPv4 and IPv6
Guest network

2.4 GHz guest network x 1,
5 GHz guest network x 1

Hardware

DIMENSIONS

3.5 3.5 3.5 inches (88 88 88 mm)
Interfaces

2 Gigabit ports per Halo unit
(WAN/LAN auto-detection)
Button

Reset button

Others

package contents

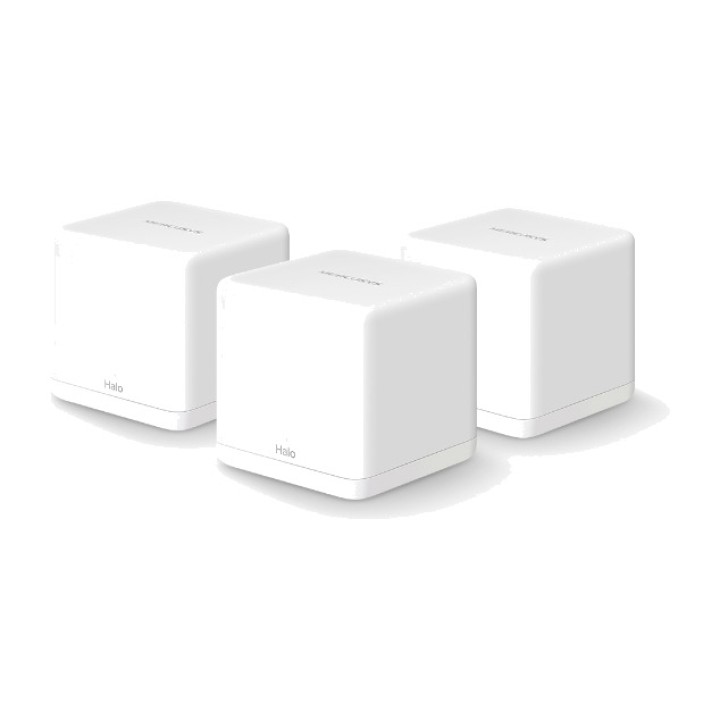

3 Halo units H30G
1 Ethernet cable RJ45.
3 power adapters
1 quick installation guide
Environment

Operating temperature : 0C~40C (32F~104F)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0070
