MERCUSYS Dual-band mesh Wi-Fi system HALO-H30G AC1300 2 UDS MGS0000009606

Nothing is worse than unreliable connections and Internet speeds that can’t
keep up with a digital lifestyle. Halo H30G works as
a unified system to ensure a strong Wi-Fi signal in every corner
of the home, delivering an incredibly fast and stable network experience. Interruptions and
buffering will be a thing of the past.
Characteristic

One unified network: with advanced mesh technology, Halo units
work together to form a single, unified home network with one Wi-Fi name
and password.
Seamless roaming: automatically switch between Halos as you
move around the home, always getting the best signal to enjoy the
fastest connections for all devices.
Whole-home coverage: covers up to 260 m2 with high-speed WiFi,
eliminating Wi-Fi dead zones in the home.
1.3 Gbps dual-band Wi-Fi: Halo H30G provides fast connections
and stable connections for up to 100 devices, with speeds of up to 1300 Mbps and
works with major Internet service providers (ISPs) and modems.
Easy app control: the MERCUSYS app lets you quickly configure and manage
the Wi-Fi.
Full Gigabit ports: 2 Gigabit ports per Halo unit for
ultra-fast wired connections.
*Note: Halo H series and S series cannot work together.

Mercusys Halo Specifications H30G

Design
Housing color: white
Antenna type: Internal
Reset button: Yes
Operating temperature range : 0 - 40 C
Relative humidity range for operation : 10 - 90%
Relative humidity range during storage : 5 - 90%

Wireless LAN features
Wi-Fi band: Dual band (2.4 GHz / 5 GHz)
Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5
(802.11ac) WLAN data transfer rate (first band): 400 Mbit/s
WLAN data transfer rate (second band): 867 Mbit/s
Network standards: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11k,IEEE 802.11n,IEEE
802.11r,IEEE 802.11v
Supported security algorithms: WPA-PSK,WPA2-PSK
Point-to-Point Protocol over Ethernet (PPPoE): Yes
Dynamic IP: Yes
Static IP: Yes
Guest access: Yes

Characteristic
Firewall security: SPI Firewall
Parental control: Yes
Parental control features: Content filter, Pause the Internet,
Time controls

Protocols
DHCP, client: Yes
DHCP, server: Yes
Supported network protocols (IPv 6): Y

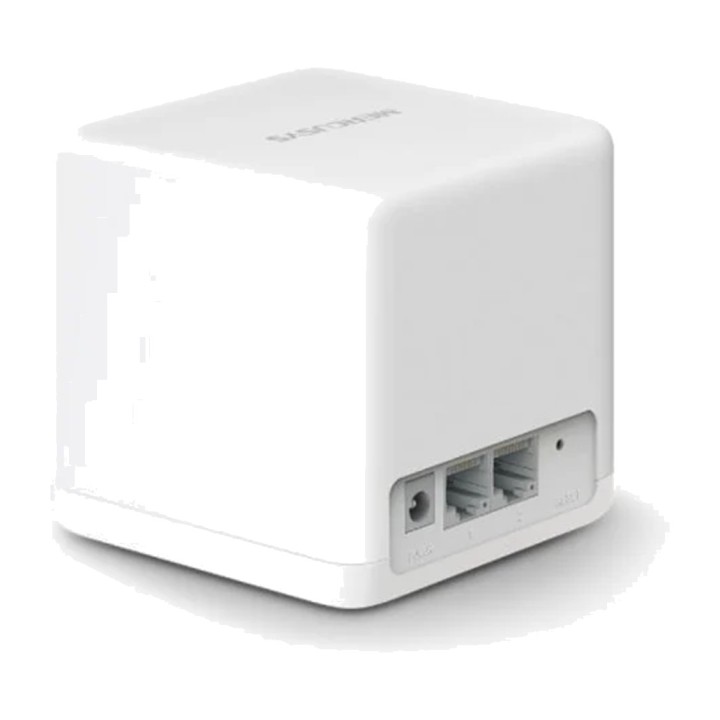

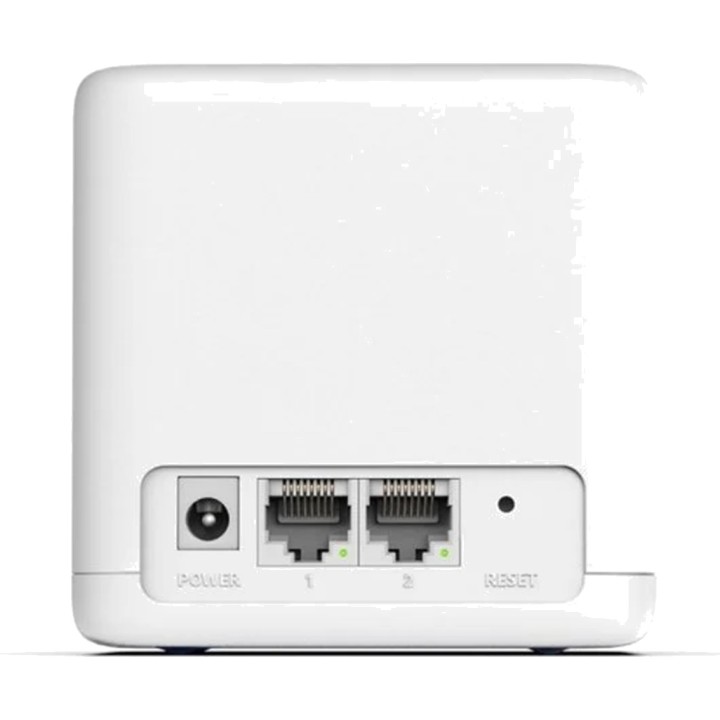

Ports and Interfaces
Ethernet LAN (RJ-45) port quantity : 2
DC-in jack: Yes

WEIGHT AND DIMENSIONS
Width: 88mm
Depth: 88 mm
HEIGHT: 88MM

Package contents
Number of products included: 2 piece(s)
AC adapter included: Yes
Number of adapters included: 2 piece(s)
Ethernet cable: Yes
Volume (m ³): 0.0051
