MERCUSYS Dual-band mesh Wi-Fi system HALO-H50G AC1900 2 UDS MGS0000009605

Halo H50G
AC1900 Whole Home Mesh Wi-Fi System (2-Pack)

Note: the Halo H series cannot be mixed with Halo S

One unified network: with advanced Mesh technology, Halo units work
together to form a single unified home network with one name and one
Wi-Fi password.
Seamless roaming: automatically switches between Halos as you
move around your home, always getting the best signal to enjoy the
fastest connections for all your devices.
Whole-home coverage: covers up to 550 m (depending on the number of
connected Halo devices) with high-speed Wi-Fi, eliminating Wi-Fi dead zones
in your home.
1.9 Gbps dual-band Wi-Fi: Halo H50G provides fast and
stable connections for more than 100 devices at speeds of up to 1900 Mbps and
works with major Internet service providers (ISPs) and modems.
Easy app control: use the MERCUSYS app to quickly set up and
manage your Wi-Fi.
Full Gigabit ports: 3 Gigabit ports per Halo unit for
ultra-fast wired connections

Seamless Streaming in Every Corner
Compared with a single standard router, which has limited range for
remote corners of the home, Halo H50G works as a unified system to
ensure a fast and stable Wi-Fi signal throughout the home, eliminating Wi-Fi dead zones
dead zones. Enjoying seamless Mesh Wi-Fi from the front door to the
backyard is now the norm.

Fits Any Type of Home
The Halo Wi-Fi Mesh kit includes several units to suit any type of
home. If that’s not enough, you can expand Wi-Fi Mesh coverage
at any time simply by adding more Halos.

Uninterrupted Entertainment with 1.9 Gbps Dual-Band Wi-Fi
Each unit in the Halo Wi-Fi system offers high-speed dual-band Wi-Fi,
offering combined speeds of up to 1.9 Gbps. With six simultaneous data streams,
Halo H50G can connect devices with more bandwidth, which
helps you stream, game, download and more on all your devices with
faster Internet speeds.

Smart Connect. Combines two bands into one
Smart Connect combines the 2.4 GHz and 5 GHz bands into a single Wi-Fi SSID and
helps devices intelligently choose the best available band
with the strongest signal and fastest speed, keeping your
devices always performing optimally.

Connect More Than 100 Devices
Halo H50G harnesses the power of three separate AC1900 units, delivering
super-fast, seamless Wi-Fi for more than 100 devices. With
MU-MIMO technology, Halo keeps phones, computers and all
IoT devices connected simultaneously and performing at their best
performance.

Beamforming for Directed Signals
Halo H50G supports Beamforming technology to detect devices, even if
they are far away or have a weak signal, and focuses wireless signal strength
toward them, making the connection more stable.

Gigabit Ports. Automatic WAN / LAN Detection
There is no need to distinguish between the LAN / WAN port with the detection technology
automatic WAN / LAN, which reduces time and effort. Halo H50G makes full
use of your ISP’s Internet access and transfers data to wired devices
at lightning-fast speeds for maximum performance with full
gigabit ports that are 10 times faster than Ethernet ports.

Powerful Parental Controls
Easily manage your children’s online time and content to create
a healthy online environment for children’s development

Check the status of connected devices
Intuitively view the operating status of each Halo network and see which
devices are connected, prioritize or block devices if
necessary.

Quality of Service
Prioritize selected devices to make them work better.

Set up a guest network
Provide a separate network for guests to ensure security and
privacy.

Monthly reports
View a complete list of network details each month, including usage,
blocked content, security threats, and more.

Shake to share
Shake to share your home Wi-Fi name and password to
invite friends to join the network.

New device access alert
The MERCUSYS app proactively sends an alert to let you know
when an unknown device connects. Tap to block the device
if it poses a security risk.


Wireless

Wireless standards

IEEE 802.11 a/n/ac 5 GHz, IEEE 802.11 b/g/n 2.4 GHz
Signal rate


1300 Mbps at 5 GHz, 600 Mbps at 2.4 GHz
Receive sensitivity

2.4 GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11n HT20 MCS7:-76dBm
11n HT40 MCS7:-73dBm
5 GHz:
11a 6Mbps:-95dBm
11a 54Mbps:-77dBm
11ac VHT20 MCS8:-72dBm
11ac VHT40 MCS9:-67dBm
11ac VHT80 MCS9:-63dBm
Wireless security

WPA-PSK/WPA2-PSK
Mesh protocol

802.11k/v/r

SOFTWARE

Operation Modes

Router, access point

Quality of service

WMM
WAN type

Dynamic IP / Static IP / PPPo E / L2TP / PPTP
Management

Local management, remote management, multiple administrators
DHCP

Server, client
Firewall security

SPI Firewall
Protocols

Supports IPv4 and IPv6
Guest network

2.4 GHz guest network,
5 GHz guest network

Hardware

Dimensions (W x D x H)

3.5 3.5 3.5 in (88 88 88 mm)

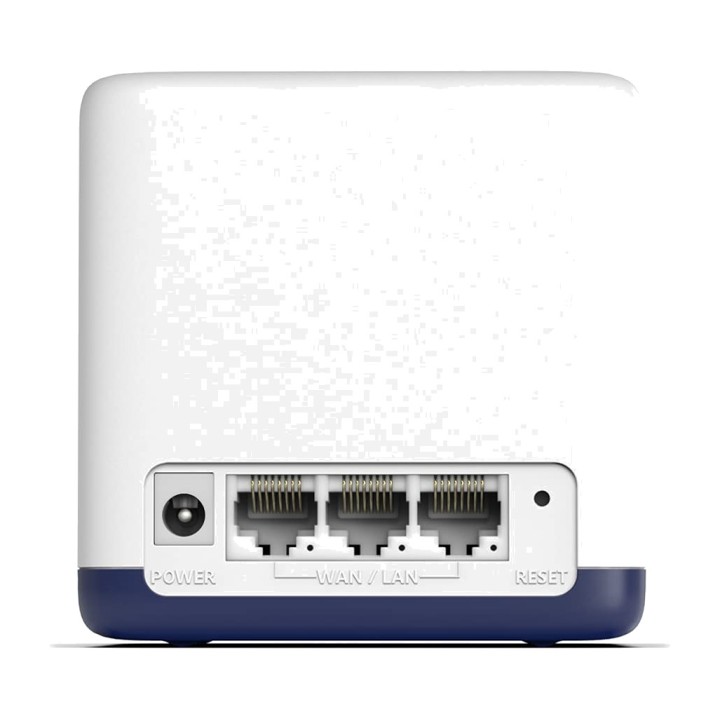

Interfaces

3 Gigabit ports per Halo unit
(Automatic WAN / LAN detection)
Button

Reset button

Others

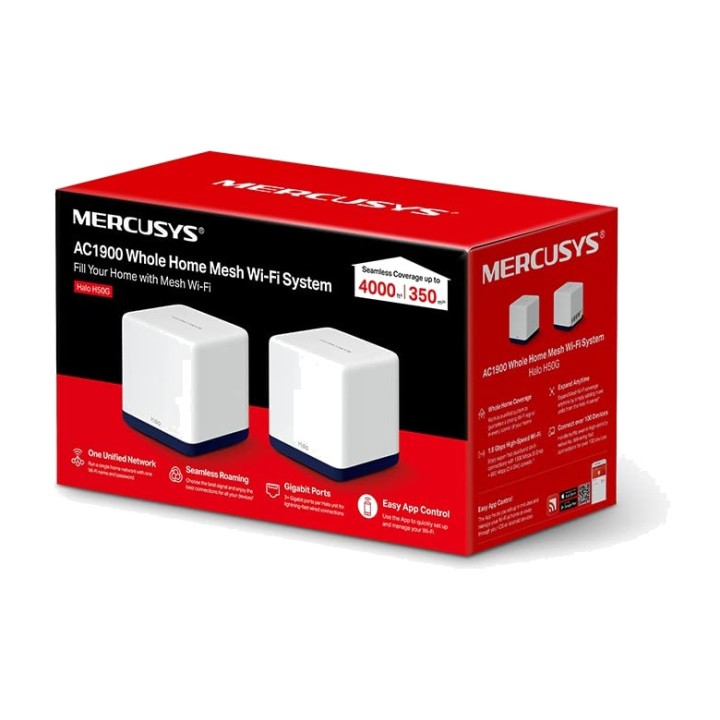

Package contents

2 Halo units H50G
1 Ethernet cable RJ45
2 power adapters
1 quick installation guide
Environment

Operating temperature : 0 C ~ 40 C (32 F ~ 104 F)
Operating Humidity: 10% ~ 90% without condensation
Storage Humidity: 5% ~ 90% without condensation
Volume (m ³): 0.0051
