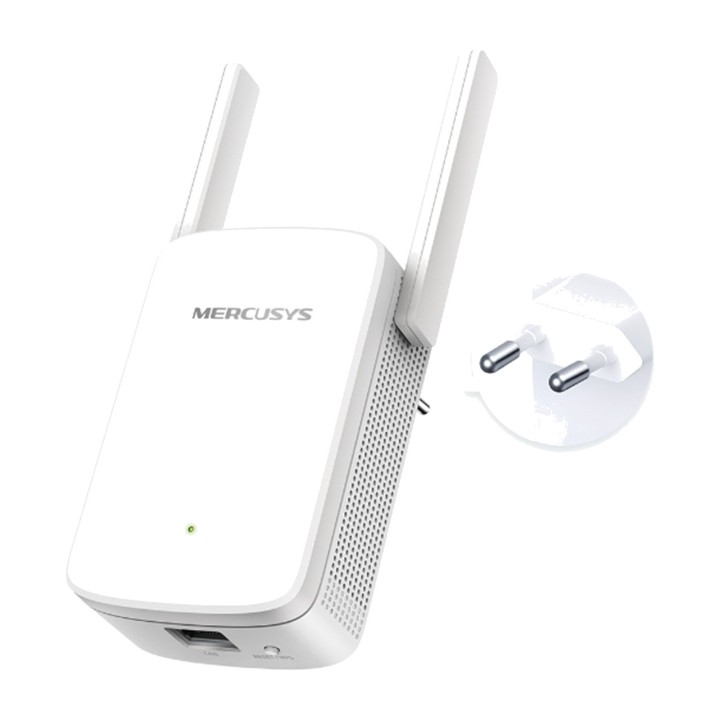

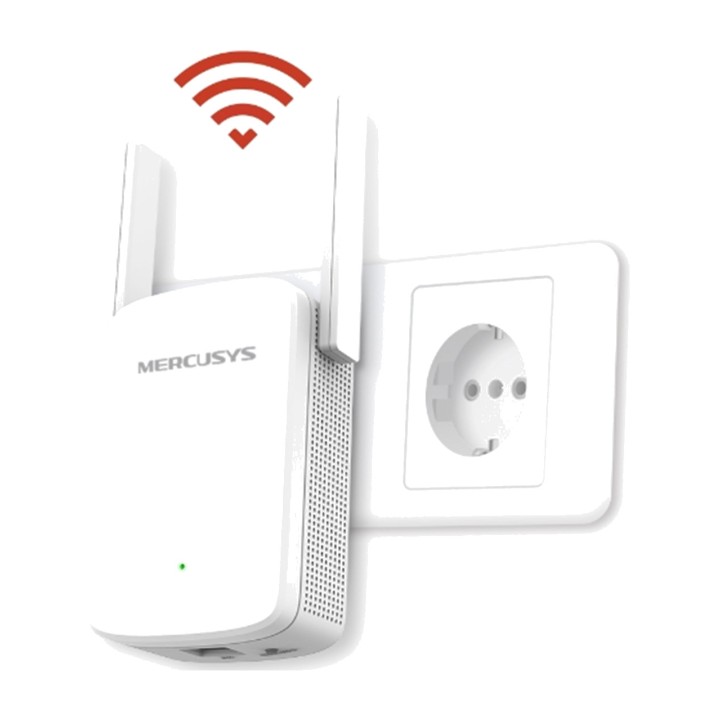

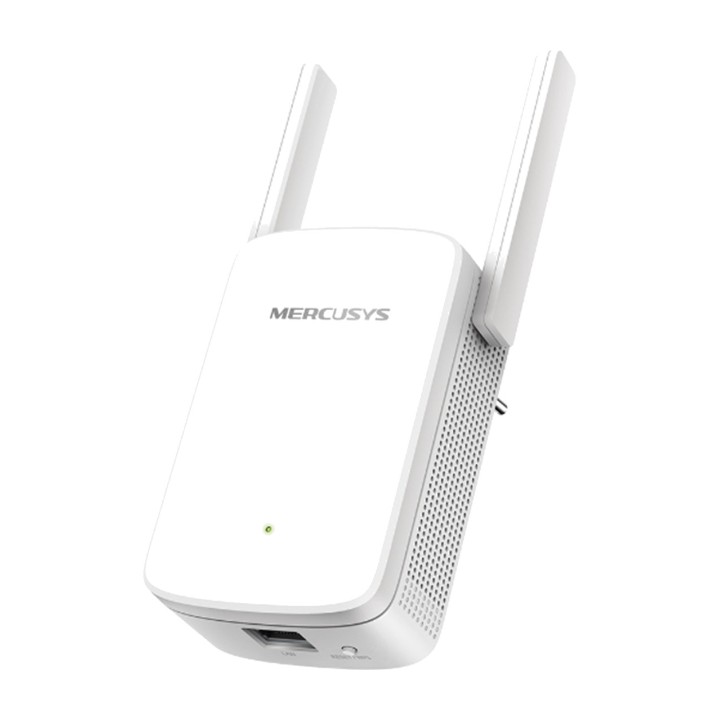

MERCUSYS Dual-band Wi-Fi repeater with 2 external antennas ME30 AC1200 MERCUSYS-ME30

Wi-Fi extender AC1200

Eliminate WiFi Dead Zones Boosts WiFi signals to previously unreachable or
hard-to-wire areas flawlessly
AC1200 Dual Band WiFi Keep your whole home connected with strong WiFi
expansion at a combined speed of up to 1.2 Gbps
Easy One-Touch Setup Simply press the WPS button to expand your WiFi
coverage in seconds
Signal Indicator Multicolor LED helps you find the right location for your range
extender for the best WiFi extension
Fast 10/100 Mbps Port Provides speedy wired connections for PCs, IPTVs, and
game consoles
Works with Any Router or Wireless Access Point


Wireless

Wireless standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
FREQUENCY

2.4 - 2.5 GHz, 5 GHz
Signal rate

Up to 1200 Mbps (867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz)

Receive sensitivity

5 GHz:
11ac HT80 MCS9 <, -63 dBm
2.4 GHz:
11n HT40 MCS7 <, -70 dBm
Transmission power

<, 20 dBm
Wireless security

WPA-PSK/WPA2-PSK

Hardware

Dimensions (W x D x H)

112 84.7 39 mm
Interfaces

1 10/100Mbps port RJ45
Button

RESET/WPS button
Antenna type

2 external antennas
Power consumption

9.2 W

Others

CERTIFICATES

CE, RoHS
Package contents

Wi-Fi range extender (ME30)
Quick installation guide
Environment

Operating temperature : 0 C ~ 40 C (32 F ~ 104 F)
Operating Humidity: 10% ~ 90% without condensation
Volume (m ³): 0.0018
