ZYXEL 16-port unmanaged Gigabit switch GS1100-16V4 DSP0000042146

Features of the 16-Port Zyxel GS1100-16 Switch

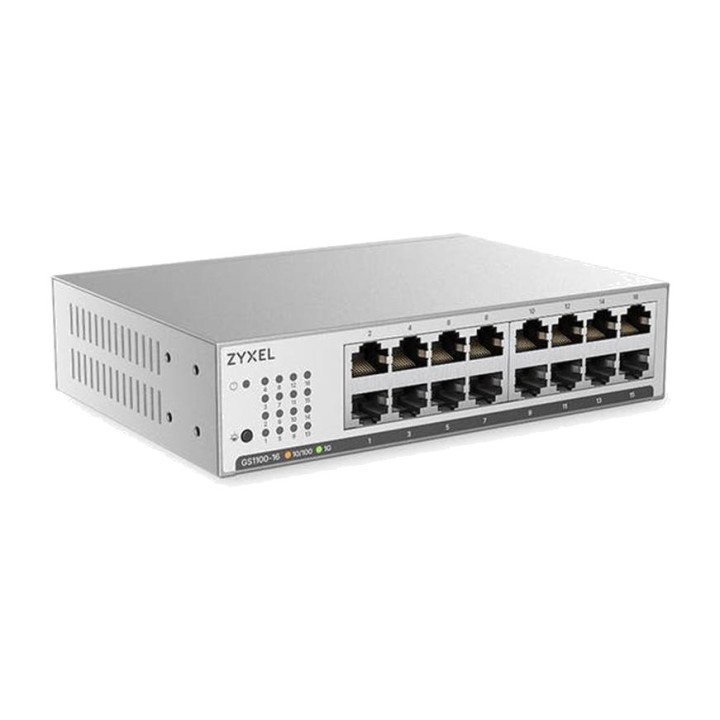

The Zyxel GS1100-16, SKU GS1100-16-EU0104F, is an unmanaged+ network switch designed to expand an Ethernet infrastructure with 16 Gigabit RJ-45 ports. It offers a switching capacity of 32 Gbps and additional management features via a web interface, making it a suitable solution for offices, professional installations and networks that need to connect numerous devices reliably.
16 Gigabit Ethernet ports
Its 16 RJ-45 connections, compatible with speeds of 10/100/1000 Mbps, allow computers, servers, network printers, access points and other Ethernet equipment to be connected. Its switching capacity and forwarding rate are designed to maintain consistent Gigabit performance between connected devices.

16 RJ-45 ports, 10/100/1000 Mbps
Switching capacity: 32 Gbps
Forwarding rate: 23.8 Mpps

Web management and VLAN features
While retaining the simplicity of an unmanaged+ switch, the GS1100-16 features a browser-based management interface that provides access to various configuration and maintenance functions. These include 802.1Q VLAN, VLAN trunking, port isolation and loop prevention mechanisms.

Compatibility with VLAN 802.1Q
VLAN trunking
Loop prevention and port isolation
EEE compatibility
Firmware update
Configuration backup and restore

Quiet and efficient operation
The fanless design allows the switch to operate at a noise level of 0 dBA at 25 °C, an especially useful advantage for offices and other spaces where reducing noise from network equipment is desirable. It also features low power consumption, from 2,1 W at idle to 8,43 W with all ports at full load.

Fanless design
Noise level at 25 °C: 0 dBA
Power consumption in standby mode : 2,1 W
Maximum consumption : 8,43 W
Heat dissipation: 27,91 BTU/h

Protection for ports and power supply
The GS1100-16 incorporates various measures designed to provide protection against surges and electrostatic discharges. The Ethernet ports feature 2 kV surge protection, while ESD protection reaches 8 kV by air and 4 kV by contact.

Ethernet port surge protection: 2 kV
Power supply surge protection Line-GND: 2 kV
Power supply surge protection Line-Line: 1 kV
Air discharge ESD protection: 8 kV
Contact discharge ESD protection: 4 kV

Network traffic management capacity
To complement its Gigabit connections, this switch incorporates features designed to efficiently manage traffic between connected devices. It has a 16K MAC address table, a 1 MB packet buffer and supports Jumbo Frames of up to 12 KB.

MAC address table: 16K
Packet buffer : 1 MB
Jumbo Frames: up to 12 KB
Flash Memory /RAM: 4 MB/256 KB

Flexible rack or wall installation
The device can be adapted to different installations thanks to its compatibility with rack and wall mounting. The package includes the accessories required for both options, making it easy to integrate into server racks, communications cabinets, wall cabinets or other network installations.

Rack mounting kit included
Wall-mounting kit included
Power cable included
Power supply: 100-240 V AC, 50/60 Hz

Dimensions and operating conditions
With dimensions of 165 x 118 x 39 mm and a weight of 0,601 kg, the GS1100-16 offers a compact form factor for a 16-port device. It is designed to operate at temperatures between 0 °C and 40 °C and has an MTBF of 712274 hours at 25 °C.

Dimensions: 165 x 118 x 39 mm
Weight: 0,601 kg
Packaging dimensions: 240 x 219 x 57 mm
Packaging weight: 1,268 kg
Operating temperature: 0 °C to 40 °C
Operating humidity: 10% to 95%, non-condensing
Storage temperature: -40 °C to 70 °C
Storage humidity: 10% to 95%, non-condensing
MTBF at 25 °C: 712274 hours
Volume (m ³): 0.0032
