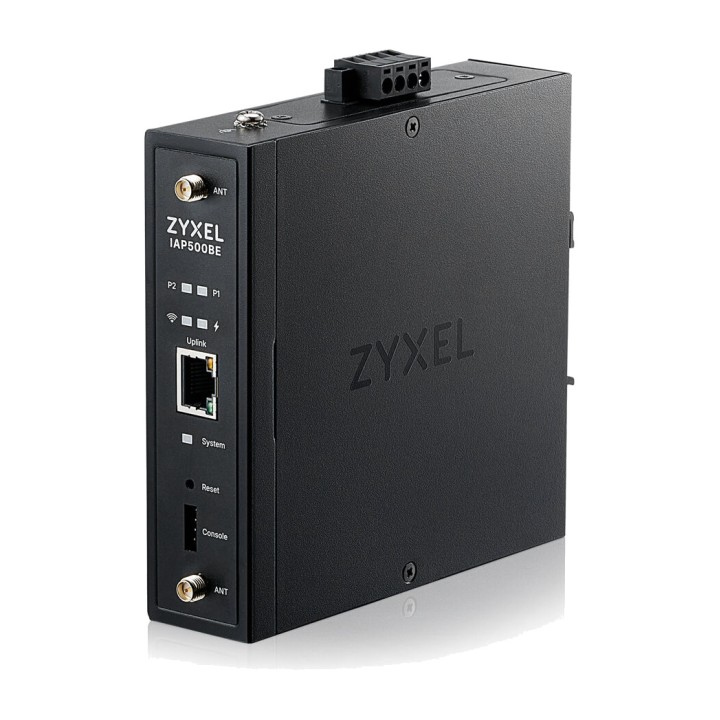

ZYXEL Dual-band WiFi 7 access point IAP500BE 5012MBPS DSP0000042142

Zyxel features IAP500BE
The Zyxel IAP500BE is a dual-band wireless access point designed to deliver high-performance Wi-Fi connections, with a maximum combined speed of up to 5012 Mbit/s. It operates on the 2.4 GHz and 5 GHz bands, supports the IEEE 802.11be standard and features advanced functions such as Multi User MIMO, fast roaming, VLAN support and Band Steering.
Dual-band Wi-Fi up to 5012 Mbit/s
The Zyxel IAP500BE distributes the wireless connection across the 2.4 GHz and 5 GHz bands, reaching up to 688 Mbit/s and 4324 Mbit/s respectively. This combination enables a maximum data transfer rate of 5012 Mbit/s.

2.4 GHz band: up to 688 Mbit/s
5 GHz band: up to 4324 Mbit/s
Maximum combined speed: 5012 Mbit/s
Compatible with IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g and IEEE 802.11n

Advanced features to optimize the network
This access point incorporates Multi User MIMO and features designed to efficiently manage wireless connections. It includes Band Steering to optimize performance, Wi-Fi Multimedia WMM/WME, fast roaming and VLAN support, facilitating integration into network infrastructures with different requirements.

Multi User MIMO
Wi-Fi Multimedia WMM/WME
Fast roaming
VLAN support
Band Steering for performance optimization
Compatible with IEEE 802.11k, IEEE 802.11r and IEEE 802.11v

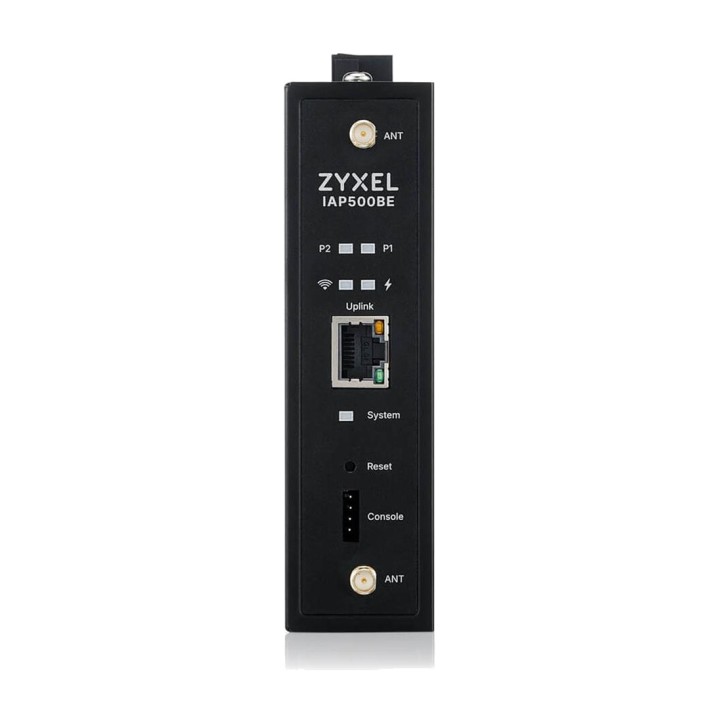

2.5 Gbit/s Ethernet connection and PoE power supply
The Zyxel IAP500BE features 1 RJ-45 Ethernet LAN port with a speed of up to 2500 Mbit/s, providing a wired connection ready to complement its wireless capabilities. It also supports Power over Ethernet (PoE) and is compatible with the IEEE 802.3at and IEEE 802.3bt standards.

1 Ethernet port LAN RJ-45
Ethernet LAN speed: 2500 Mbit/s
Power over Ethernet PoE
IEEE 802.3at and IEEE 802.3bt standards
DC input jack
Voltage range CC: 12 - 48 V

Network security and management
To protect wireless communications, the device is compatible with various security algorithms, including WPA3. It also supports cloud management, providing an additional option for managing the access point.

WEP security
WPA security
SECURITY WPA2
SECURITY WPA3
Cloud management

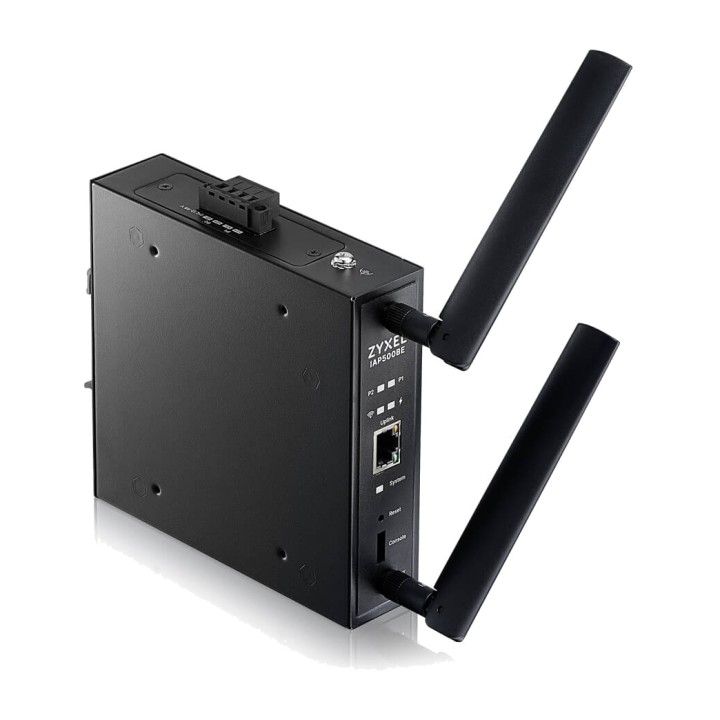

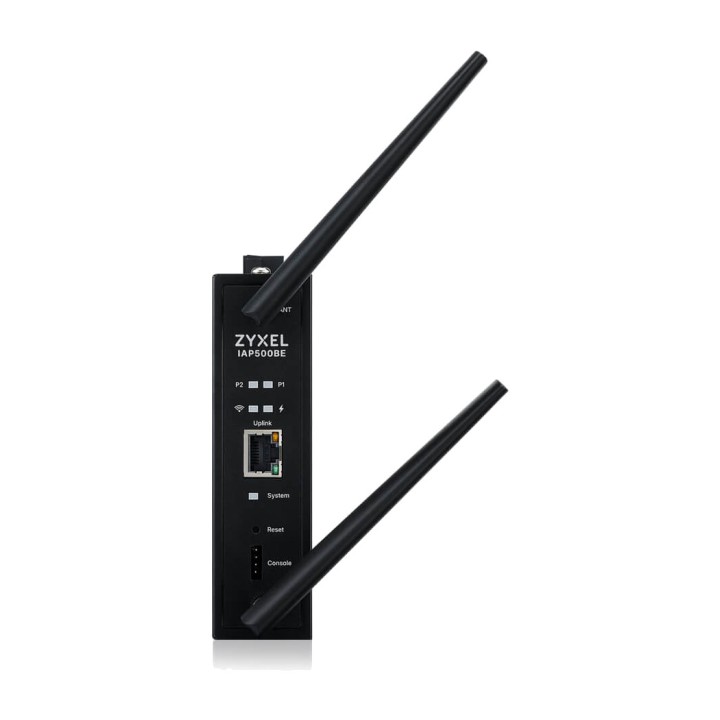

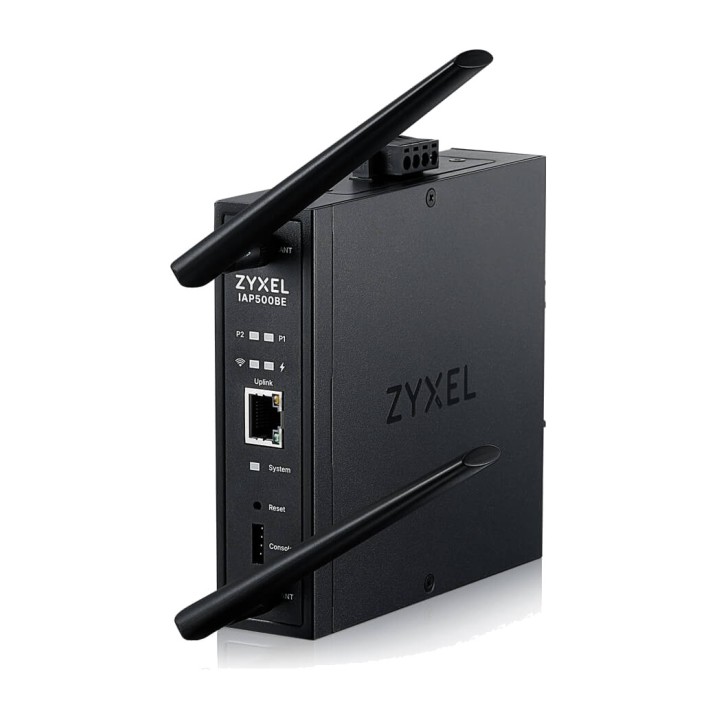

External antenna and compact design
The Zyxel IAP500BE uses an external antenna with a maximum gain of 3 dBi. Its black casing measures 125 x 130 x 35 mm and weighs 646 g, offering a compact form factor for installation.

Antenna type: external
Maximum antenna gain: 3 dBi
COLOUR: BLACK
Width: 125mm
Depth: 130 mm
Height: 35mm
Weight: 646 g

Operating and storage conditions
The access point is designed to operate within a temperature range of -25 to 65 °C, while its storage temperature range is between -40 and 70 °C. It supports a relative humidity of 10 to 90% during both operation and storage.

Operating temperature : -25 - 65 °C
Storage temperature : -40 - 70 °C
Operating relative humidity : 10 - 90%
Relative humidity during storage : 10 - 90%

Other specifications
The Zyxel IAP500BE is supplied in a box-type package, with specified package dimensions and weight to facilitate logistics management and product storage.

Package width: 160 mm
Package depth: 180 mm
Package height: 50 mm
Package weight: 864 g
Packaging type: Box
Volume (m ³): 0.0017
