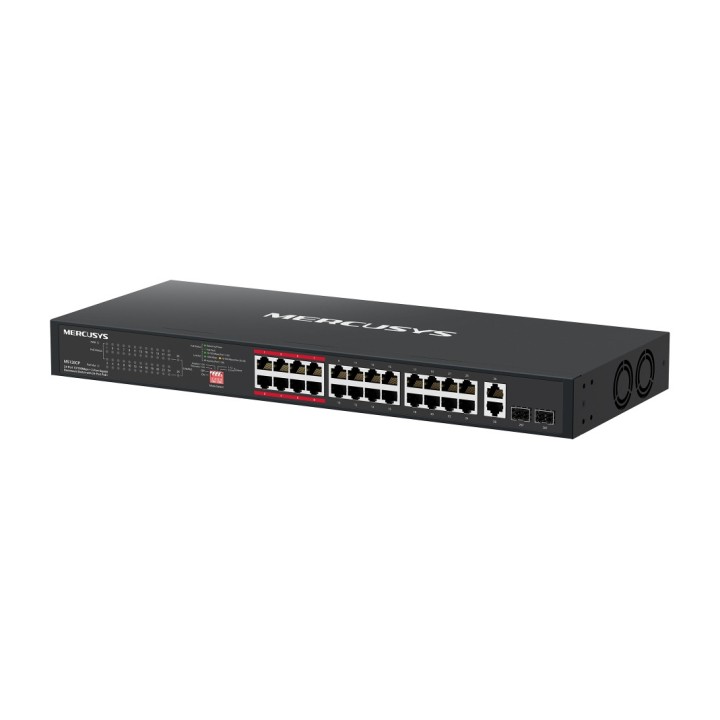

MERCUSYS 28-port rack switch with PoE+ MS126CP DSP0000041657

Switch Features MS126CP

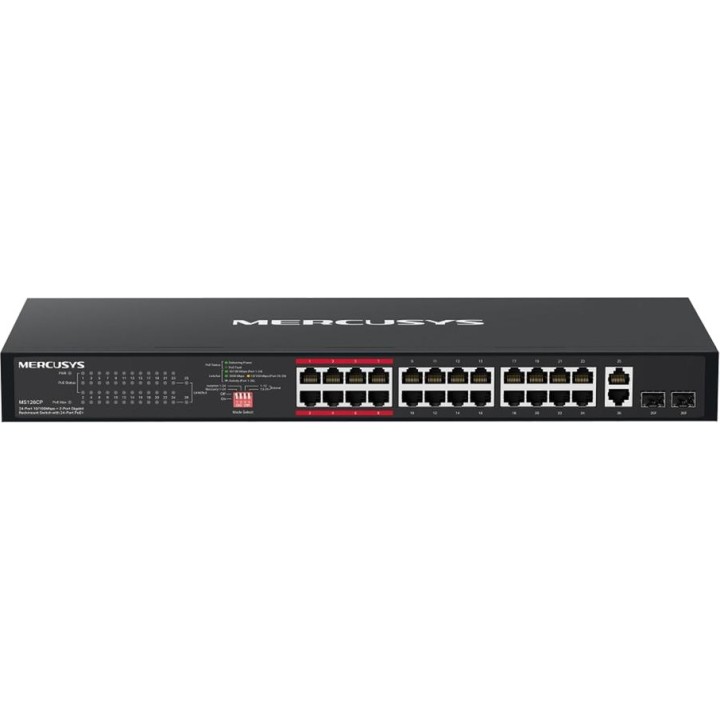

The MS126CP is a rackmount switch designed for network installations that require stable PoE+ power, multiple ports and Gigabit uplinks. With 24 10/100 Mbps PoE+ ports, 2 Combo Gigabit RJ45 ports and 2 Combo SFP slots, it offers a practical solution for connecting IP cameras, access points, VoIP phones or other IEEE 802.3af/at-compatible devices.
24 PoE+ ports with a high power budget
This switch features 24 10/100 Mbps PoE+ RJ45 ports, each capable of supplying up to 30 W. Its total PoE budget of 295 W allows it to power multiple devices through the network cable itself, reducing the need for additional power adapters.

24 PoE+ RJ45 10/100 Mbps ports
Up to 30 W per PoE port
Total PoE budget of 295 W
Compatible with IEEE 802.3af/at devices

Flexible connectivity with Gigabit uplink and SFP
Thanks to its 2 Combo Gigabit RJ45 ports and 2 Combo Gigabit SFP slots, the MS126CP makes it easy to connect to other switches, routers or fibre links. This configuration allows the installation to be adapted to different network requirements, over both copper and fibre.

2 Combo Gigabit ports RJ45
2 Combo Gigabit SFP slots
1000BASE-T compatibility and 1000BASE-X MMF/SMF
8.8 Gbps switching capacity

Extend Mode for long distances
Extend Mode allows data transmission and PoE power to be extended up to 250 m, an especially useful advantage in video surveillance installations, warehouses, large offices or spaces where devices are far from the communications cabinet.

PoE range up to 250 m
Extend Mode available on ports 1–12 and 13-24
Data transmission and power supply over the same cable

Management modes for greater stability
The MS126CP includes advanced features such as Isolation Mode, Priority Mode and PoE Auto Recovery. These options help improve security, prioritize sensitive applications such as video surveillance, and automatically restart PoE devices that stop responding.

Isolation Mode on ports 1-24
Priority Mode on ports 1-8
PoE Auto Recovery on ports 1-24
Flow control IEEE 802.3x

Easy installation and rackmount design
Its plug-and-play design allows it to be put into operation without configuration or centralized management. In addition, its rackmount format and included accessories make installation in communications cabinets easier.

Plug and Play Installation
No configuration required
Dimensions: 440 x 180 x 44 mm
Includes mounting brackets and fasteners

Performance and reliability for professional networks
With a 16 K MAC address table, 16 KB Jumbo Frames and a forwarding rate of 6.54 Mpps, this switch is designed to deliver stable operation in networks with multiple connected devices.

Store-And-Forward transfer method
MAC table of 16 K
Jumbo Frame of 16 KB
Packet Forwarding Rate of 6.54 Mpps

Other specifications

Power supply: 100-240 V AC, 50/60 Hz
Maximum power consumption: 11.72 W with no PD connected and 326.95 W with a 295 W PD connected
Maximum heat dissipation: 1168.47 BTU/hr at 110 V/60 Hz and 1114.9 BTU/hr at 220 V/50 Hz
Cooling: 2 fans
Physical security lock: Yes
Certifications: CE, RoHS
Operating temperature: -5 to 45 °C
Storage temperature: -40 to 70 °C
Operating humidity: 10-90% RH, non-condensing
Storage humidity: 5-90% RH, non-condensing
Package contents: MS126CP, power cable, installation guide, two mounting brackets and fasteners
Volume (m ³): 0.0099
