MERCUSYS Dual-band mesh Wi-Fi system HALO-H32G AC1200 2 UDS DSP0000041647

Features of the HALO H32G 2-PACK
The HALO H32G 2-PACK is an AC1200 Mesh Wi-Fi system designed to improve wireless coverage at home, eliminating dead zones and providing a stable connection for multiple devices. Its units work together to create a single Wi-Fi network with the same name and password throughout the home.
Unified Mesh network for the whole home
Thanks to advanced Mesh technology, the Halo units form a unified home network, allowing you to move around the house without having to switch networks manually. The system automatically switches between units to maintain the best available signal.

A single Wi-Fi network with the same name and password
Seamless roaming between Halo units
802.11k/v/r Mesh protocol

Dual-band AC1200 Wi-Fi
The system offers dual-band Wi-Fi connectivity, with combined speeds of up to 1,200 Mbps. This lets you browse, stream content, work online or connect multiple devices reliably.

867 Mbps on the 5 GHz band
300 Mbps on the 2.4 GHz band
Compatible with up to 100 devices

Wide coverage and stable connection
This pack is designed to cover up to 260 m², helping reduce Wi-Fi dead zones in medium-sized or large homes. It is also compatible with major internet service providers and modems.

Coverage of up to 2,800 ft² / 260 m²
Compatible with major ISPs and modems
Operating modes: router and access point

Easy control from the MERCUSYS app
The system is easy to set up and manage using the MERCUSYS app, allowing you to manage the network, control access and configure various options for local or remote use.

Quick setup from the app
Local and remote management
Support for multiple administrators

Connectivity, security and network features
The HALO H32G 2-PACK includes essential features for a secure and flexible home network, including WPA-PSK/WPA2-PSK security, SPI firewall, IPv4/IPv6 compatibility and a guest network on both bands.

Wireless security WPA-PSK/WPA2-PSK
Built-in SPI firewall
2.4 GHz and 5 GHz guest network
Compatible with IPv4 and IPv6
WAN: Dynamic IP, Static IP, PPPoE, L2TP and PPTP
DHCP: server and client
WMM Quality of Service

Compact design and pack contents

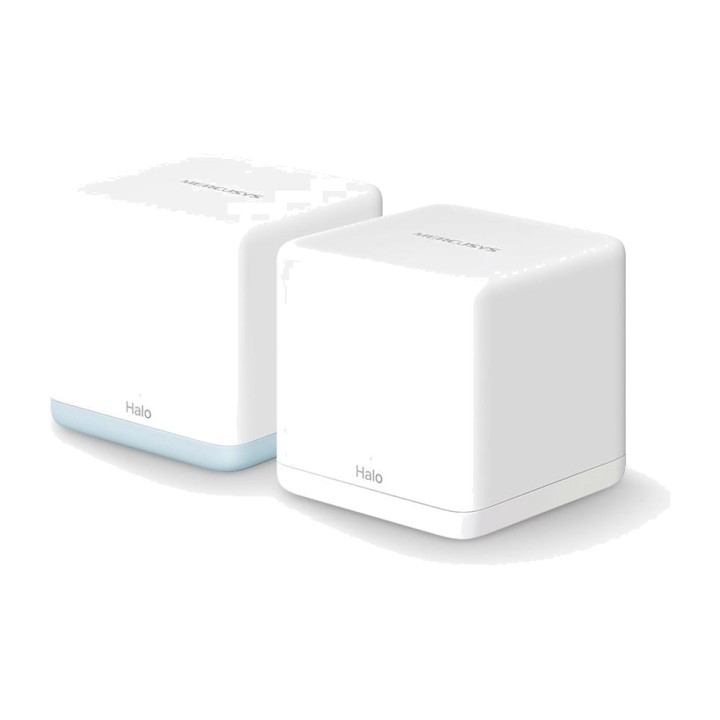

Each unit has a compact 88 x 88 x 88 mm design, making it easy to place in different rooms. The pack includes two Halo units, an Ethernet cable, power adapters and a quick installation guide.

Dimensions: 3.5 x 3.5 x 3.5 in / 88 x 88 x 88 mm
1 Halo H30G unit + 1 Halo unit H30
1 Ethernet cable RJ45
2 power adapters
1 quick installation guide

Other specifications

Wireless standards: IEEE 802.11 a/n/ac 5 GHz, IEEE 802.11 b/g/n 2.4 GHz
2.4 GHz transmission power: <, 20 dBm EIRP
5 GHz transmission power: <, 23 dBm EIRP
2.4 GHz sensitivity: 11g 6 Mbps -96 dBm, 11g 54 Mbps -78 dBm, 11n HT20 MCS7 -76 dBm, 11n HT40 MCS7 -73 dBm
5 GHz sensitivity: 11a 6 Mbps -95 dBm, 11a 54 Mbps -77 dBm, 11ac VHT20 MCS8 -72 dBm, 11ac VHT40 MCS9 -67 dBm, 11ac VHT80 MCS9 -63 dBm

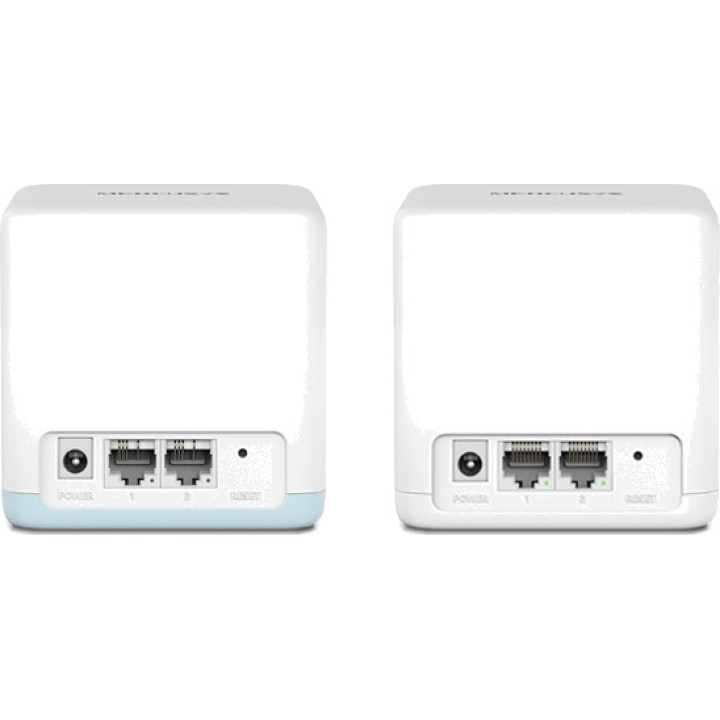

Halo H30G interfaces: 2 Gigabit WAN/LAN ports with auto-sensing
Halo H30 interfaces: 2 10/100 Mbps ports
Button: reset
Operating temperature : 0°C~40°C / 32°F~104°F
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Flexible Mesh system compatible with H30G and H30
Note: the Halo H series and the Halo S series cannot work together
Volume (m ³): 0.0051
