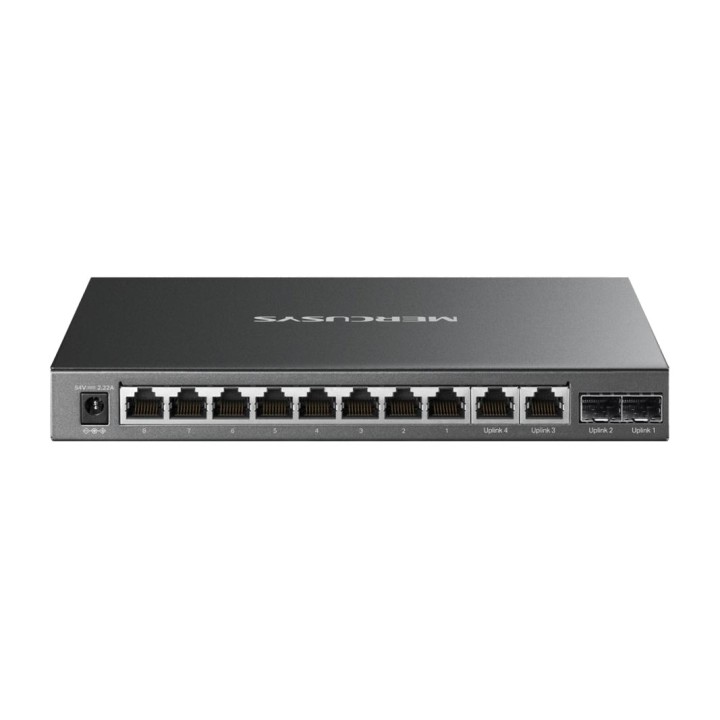

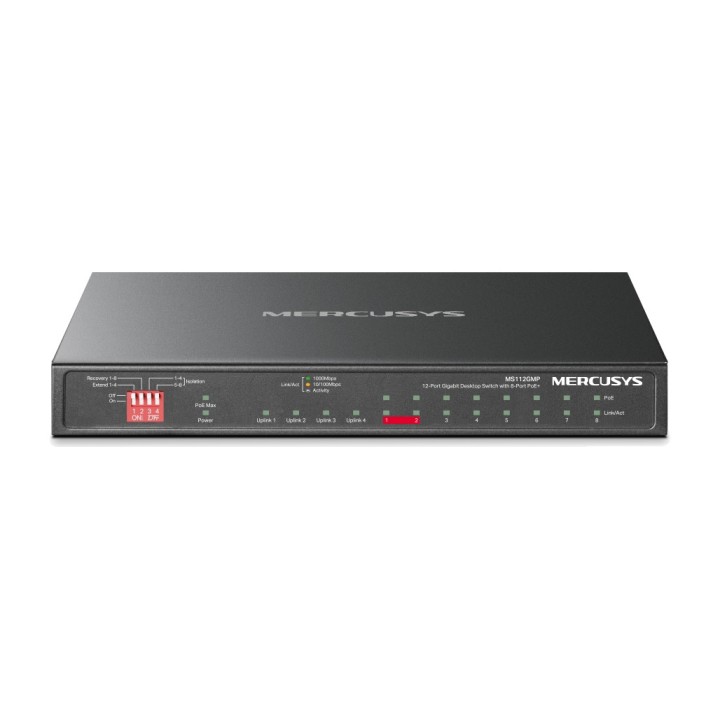

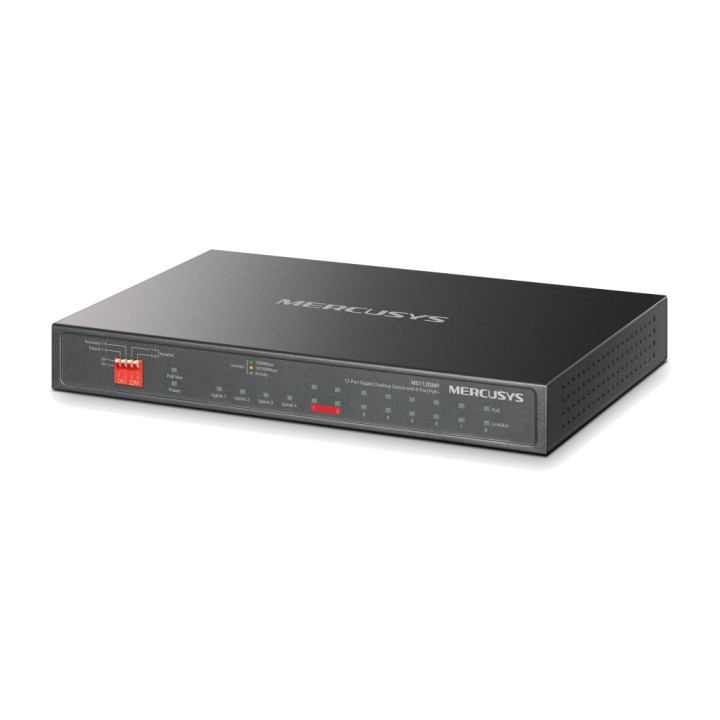

MERCUSYS 12-port desktop Gigabit switch MS112GMP DSP0000041643

Mercusys Switch Features MS112GMP
The Mercusys MS112GMP is a 12-port desktop Gigabit switch designed to provide high-speed connectivity and PoE+ power in a single device. With its 8 PoE+ ports, 2 Gigabit RJ45 ports and 2 Gigabit SFP slots, it is ideal for installing IP cameras, Wi-Fi access points, IP phones and other PoE-compatible devices, providing an efficient, secure and easy-to-deploy network infrastructure.
Gigabit connectivity with PoE+ power
Its 8 Gigabit PoE+ ports transmit data and power over a single Ethernet cable, simplifying installation and reducing the need for additional power supplies. Compatible with the IEEE 802.3af/at standard, it provides up to 30 W per port and a total power budget of 110 W.

8 10/100/1000 Mbps PoE+ ports
Up to 30 W per PoE+ port
Total PoE power of 110 W

Uplink ports for greater flexibility
The switch features 2 Gigabit RJ45 ports and 2 dedicated Gigabit SFP slots as uplinks, making it easy to connect to other switches, routers or fibre-optic links without using the available PoE ports.

2 Gigabit ports RJ45
2 Gigabit SFP slots
Auto-negotiation and Auto MDI/MDIX

Advanced features for more secure and reliable networks
The MS112GMP features different operating modes to suit various scenarios. Extend Mode allows data and PoE power to be transmitted up to 250 metres, while Isolation Mode isolates traffic between clients to improve security. In addition, the PoE Auto Recovery function automatically restarts PoE devices that stop responding, minimising service interruptions.

Extend Mode with a range of up to 250 m (ports 1–4)
Isolation Mode to separate traffic between clients (ports 1–4 / 5–8)
PoE Auto Recovery on ports 1–8

Stable performance for Gigabit networks
With a switching capacity of 24 Gbps, an 8,000-address MAC table and a forwarding rate of 17,856 Mpps, this switch delivers smooth performance even on networks with multiple devices connected simultaneously.

24 Gbps switching capacity
Forwarding rate of 17,856 Mpps
8K-entry MAC table

Quiet, easy-to-install design
Its fanless design ensures completely silent operation and lower energy consumption. In addition, as a Plug & Play device, it requires no configuration to get started.

Fanless design for silent operation
Plug-and-play installation with no configuration
Integrated physical security lock

Other specifications

Dimensions: 209 × 126 × 26 mm
External power supply : 54 V DC / 2,22 A
Compatible with Jumbo Frames up to 15 KB
Store-and-Forward transmission method
IEEE 802.3x flow control for Full-Duplex and Backpressure for Half-Duplex
Automatic MAC address learning and aging
Maximum power consumption: 10,37 W with no PoE devices connected and 124,32 W with a PoE load of 110 W
Maximum heat dissipation: up to 423,93 BTU/h
Operating temperature: -10 °C to 40 °C
Storage temperature: -40 °C to 70 °C
Operating humidity: 10 %–90 % non-condensing
Storage humidity: 5 %–90 % non-condensing
Certifications: CE and RoHS
Package contents: MS112GMP switch, power adapter and installation guide
Volume (m ³): 0.0099
