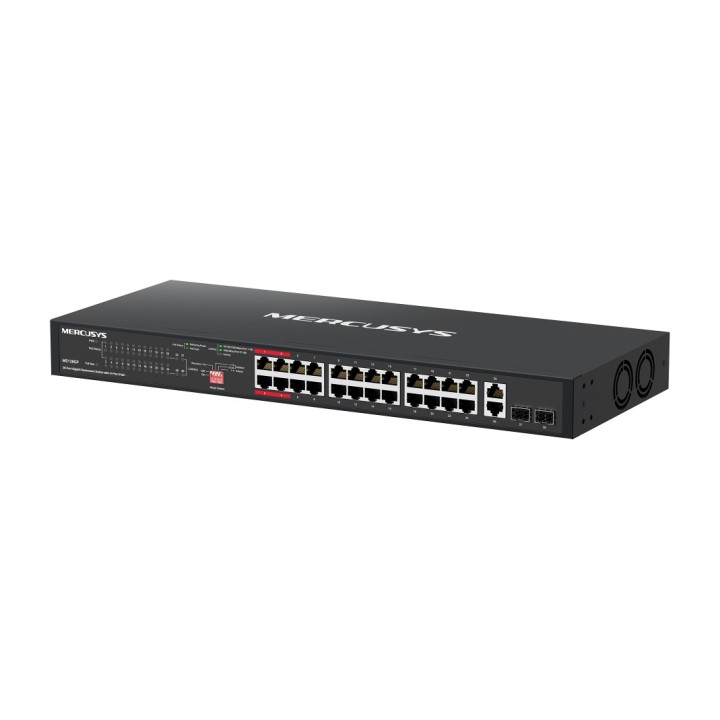

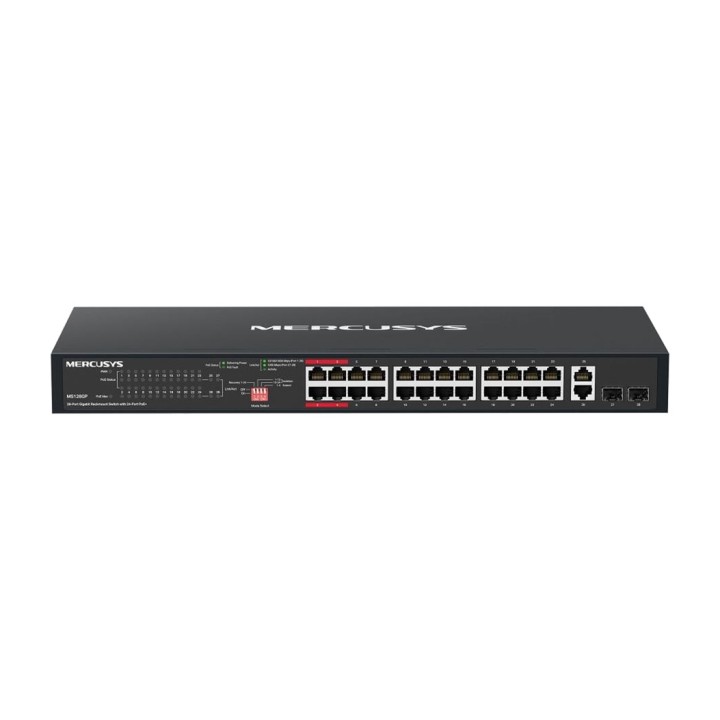

MERCUSYS 28-port Gigabit rack switch with 24 PoE+ MS128GP DSP0000041642

Features of the MS128GP 28-Port Gigabit Rack Switch with 24 PoE+ Ports
The MS128GP is a rack-mount Gigabit switch designed to provide reliable connectivity and efficient power delivery via PoE+. With a total of 28 ports, including 24 PoE+ ports, 2 Gigabit uplink ports and 2 Gigabit SFP slots, it is an ideal solution for video surveillance installations, business networks and deployments with access points or IP phones. Its Plug and Play operation allows for easy installation without the need for configuration.
Gigabit connectivity with PoE+ power
Equipped with 24 Gigabit PoE+ ports, the MS128GP delivers up to 30 W per port and has a total power budget of 295 W, compatible with devices that comply with the IEEE 802.3af/at standards.

24 Gigabit PoE+ RJ45 ports (10/100/1000 Mbps)
2 Gigabit RJ45 uplink ports
2 Gigabit SFP slots for fibre connections
Up to 30 W per PoE port
Total PoE budget of 295 W

Advanced features for more secure and stable networks
The switch includes different operating modes that allow you to optimise network performance according to the installation requirements. With Extend Mode, the PoE transmission distance can be extended up to 250 metres. It also features priority, isolation and automatic recovery modes for PoE devices.

Extend Mode with a range of up to 250 m
Priority Mode to prioritise sensitive applications (ports 1-4)
Isolation Mode to segment traffic (ports 1-12 and 13-24)
PoE Auto Recovery to automatically reboot unresponsive PoE devices

High performance for professional environments
Its 56 Gbps switching capacity and Store and Forward architecture ensure efficient data transmission. It also features an 8,000-address MAC table, automatic MAC address learning and IEEE 802.3x flow control to improve network stability.

56 Gbps switching capacity
Store and Forward transmission method
8K-address MAC table
Automatic MAC address learning and aging
Flow control IEEE 802.3x

Rack-mount design

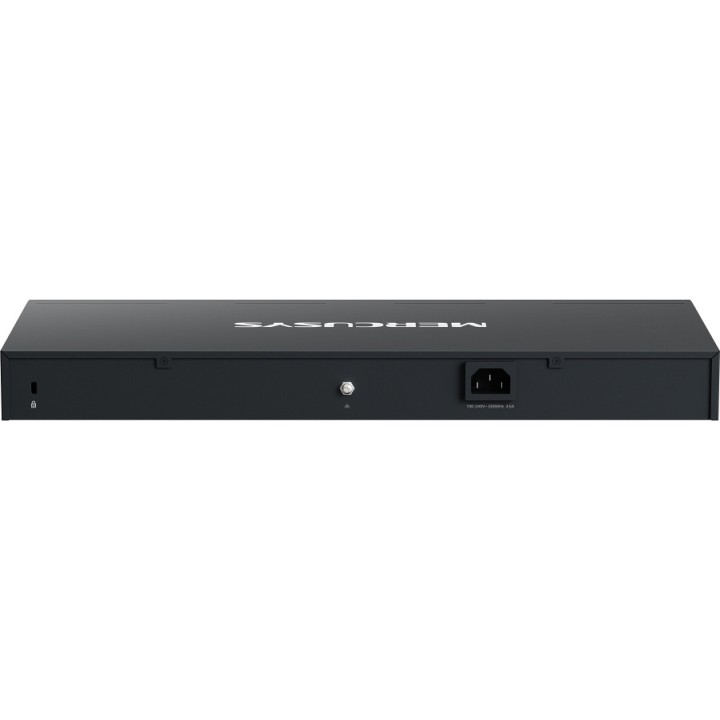

The MS128GP features a 19-inch rack-mount form factor, two fans to maintain adequate cooling and a physical security lock for greater equipment protection.

Rack format: 440 × 180 × 44 mm
2 integrated fans
Slot for physical security lock
LED indicators for power, link, PoE status and PoE Max

Compatibility and reliable operation
Compatible with major Ethernet and PoE standards, this switch is designed to integrate into a wide range of network infrastructures and operate reliably even in demanding environments.

Compatible with IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z, 802.3af and 802.3at
Compatible with Cat. 3, Cat. 5, Cat. 5e or higher cabling, depending on connection speed
Compatible with MMF and SMF fiber via SFP ports
Operating temperature from -10 °C to 45 °C

Other specifications

Maximum power consumption: 350,14 W (110 V) / 336,58 W (220 V) with a PoE load of 295 W
Maximum heat dissipation: 1193,98 BTU/h (110 V) and 1147,74 BTU/h (220 V)
Operating humidity: 10 % to 90 % non-condensing
Storage temperature: -40 °C to 70 °C
Storage humidity: 5 % to 90 % non-condensing
Certifications: CE and RoHS
Box contents: MS128GP switch, power cable, installation guide and rack-mount brackets
Volume (m ³): 0.0116
