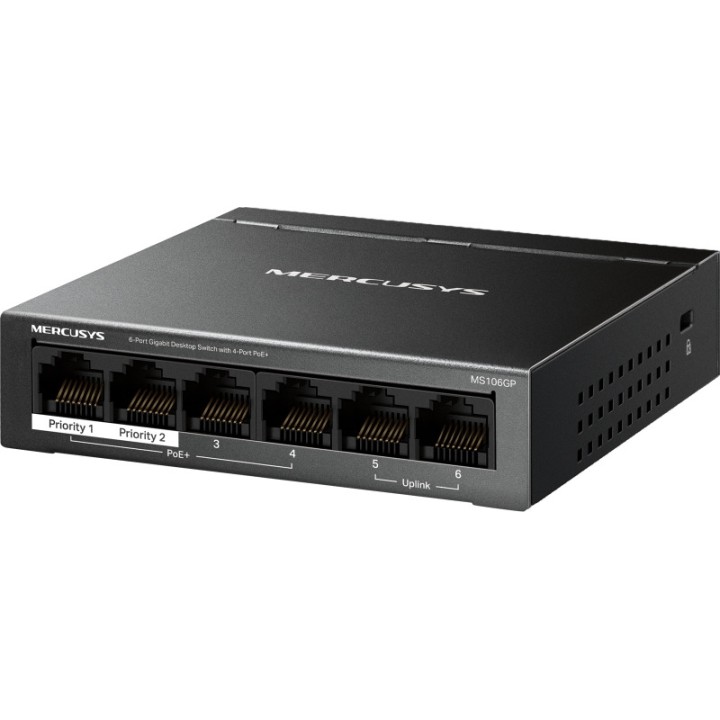

MERCUSYS 6-Port Gigabit Desktop Switch with PoE+ MS106GP DSP0000041641

Features of the MS106GP
The MS106GP is a 6-port Gigabit desktop switch designed to easily expand wired networks and power compatible devices via PoE+. It is a practical solution for IP cameras, access points, VoIP phones and other devices compatible with the IEEE 802.3af/at standards.
6 Gigabit ports with PoE+

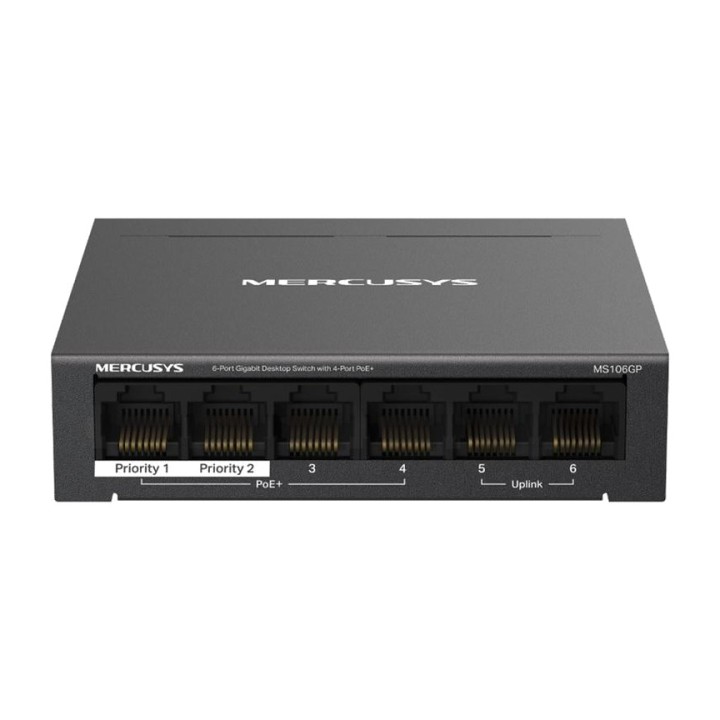

This switch features 6 Gigabit RJ45 ports, 4 of which support PoE+, allowing data and power to be transmitted over the same network cable. Each PoE port can deliver up to 30 W, with a total power budget of 65 W.

6 RJ45 ports, 10/100/1000 Mbps
4 PoE+ ports compatible with IEEE 802.3af/at
Up to 30 W per PoE port
Total PoE budget of 65 W

Uplink ports and isolation mode
Isolation mode allows traffic from specific ports to be separated to improve network stability and security. When enabled, the MS106GP provides 2 uplink ports, one intended for the Internet connection and the other for connecting an NVR.

2 uplink ports in isolation mode
One-click traffic separation
Greater stability for video surveillance installations

Extended range with Extend mode
Thanks to Extend mode, the MS106GP can increase the PoE transmission distance to up to 250 m, making it easier to install devices located far from the main switch.

PoE transmission up to 250 m in Extend mode
Compatible with IEEE 802.3af/at-powered devices
Ideal for IP cameras and access points located far away

PoE Auto Recovery for greater continuity
The PoE Auto Recovery function automatically restarts PoE devices that stop responding or lose their connection, helping keep the network operational without constant manual intervention.

Automatic restart of unresponsive PoE devices
Greater service continuity
Less maintenance for remote installations

Compact, silent and durable design
Its metal housing promotes better heat dissipation, while its fanless design ensures quiet operation. In addition, its compact form makes it easy to install on desks, in network cabinets or in confined spaces.

Durable metal housing
Fanless design
Dimensions: 99,8 × 98 × 25 mm

Other specifications

Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Switching capacity: 12 Gbps
MAC address table: 2K, auto-learning and auto-aging

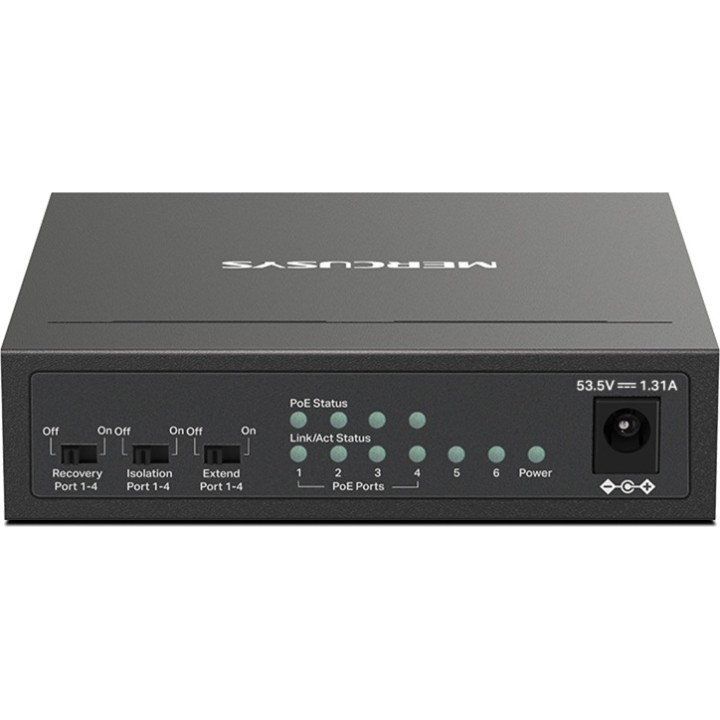

LED indicators: Power, Link/Act and PoE status
10BASE-T transmission medium: Cat. 3 or higher UTP/STP cable, up to 100 m
100BASE-TX transmission medium: Cat. 5 or higher UTP/STP cable, up to 100 m
1000BASE-T transmission medium: Cat. 5e or higher UTP/STP cable, up to 100 m
Maximum power consumption: 69,64 W at 110 V/60 Hz, 25 °C, with 65 W PD connected
Maximum heat dissipation: 237,47 BTU/h at 110 V/60 Hz , 25 °C
Maximum heat dissipation: 237,13 BTU/h at 220 V/50 Hz , 25 °C
Operating temperature: 0 °C to 40 °C
Storage temperature: -40 °C to 70 °C
Operating humidity: 10% to 90% RH, non-condensing
Storage humidity: 5% to 90% RH, non-condensing
Certifications: CE, RoHS
Volume (m ³): 0.0099
