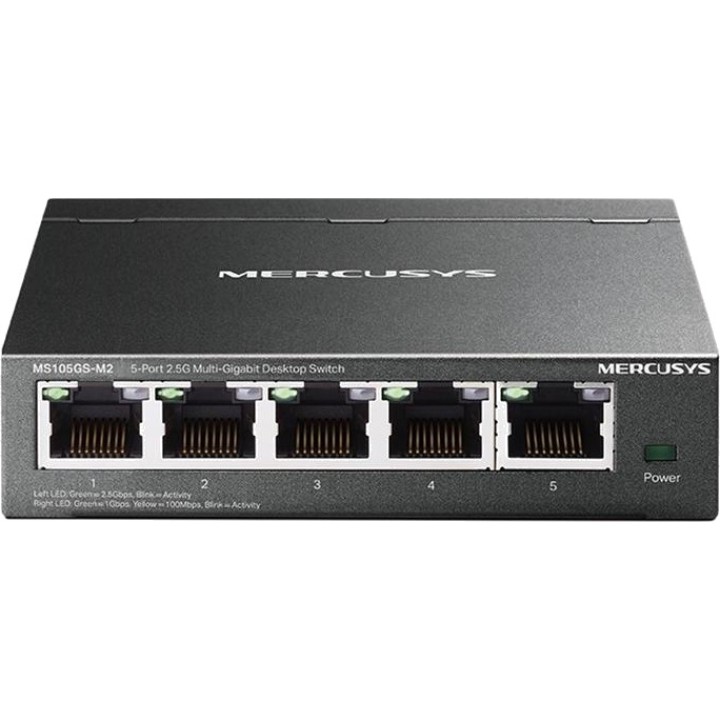

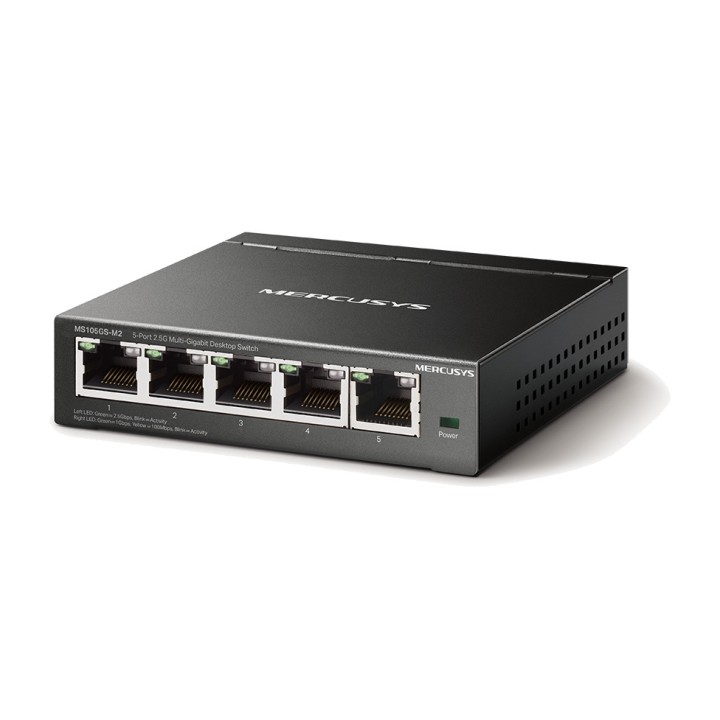

MERCUSYS 5-Port Multi-Gigabit Desktop Switch MS105GS-M2 2.5G DSP0000041637

Features of the MS105GS-M2
The MS105GS-M2 is a 5-port 2.5G Multi-Gigabit desktop switch designed to improve network speeds in homes, small offices, workspaces, gaming setups or 4K entertainment environments. It offers a switching capacity of 25 Gbps and quiet operation thanks to its fanless design.
2.5G connectivity for faster networks
Its 5 RJ45 ports supporting 100 Mbps/1 Gbps/2.5 Gbps let you make the most of Multi-Gig devices such as NAS systems, servers, gaming computers, WiFi 7/6E/6 access points or workstations. It also lets you upgrade your network to 2.5 Gbps without replacing your existing Cat5e cabling.

5 RJ45 ports, 100 Mbps/1 Gbps/2.5 Gbps
Auto-Negotiation and Auto MDI/MDIX
Switching capacity: 25 Gbps
Packet forwarding rate: 18.6 Mpps

Easy installation and immediate use
Thanks to its Plug and Play system, the MS105GS-M2 requires no advanced configuration. Simply connect the devices and the power adapter to start using a faster, more stable network.

Installation without configuration
Desktop use or wall mounting
Includes power adapter, installation guide and rubber feet

Quiet, durable design
Its fanless design ensures quiet operation, making it ideal for desks, offices, rooms or environments where noise must be kept to a minimum. The metal casing provides greater durability and stability for everyday use.

Fanless design
Durable metal housing
Dimensions: 3.9 x 3.9 x 1.0" / 99.8 x 98 x 25 mm
Maximum consumption : 5.67 W

Advanced features for a stable network
The MS105GS-M2 includes features designed to improve network stability and efficiency, such as loop prevention, flow control, QoS and IGMP Snooping. These features help maintain smooth communication between devices and prioritize important traffic.

Loop prevention button
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping
Jumbo frame : 12 KB
MAC address table: 4K

Other specifications

MODEL: MS105GS-M2
Standards and protocols: IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
Transfer method: Store and Forward
External power supply : 9 VDC / 0.6 A
LED indicators: Power and Link/Act
Maximum heat dissipation: 19.28 BTU/h
Certifications: CE, RoHS
Operating temperature : 0-40 °C / 32-104 °F
Storage temperature : -40-70 °C / -40-158 °F
Operating humidity: 10-90% RH, non-condensing
Storage humidity: 5-90% RH, non-condensing
Retail package dimensions: 5.45 x 4.96 x 3.98" / 138.5 x 126 x 101 mm
UNITS PER BOX: 24
Box dimensions: 15.75 x 11.81 x 16.93" / 400 x 300 x 430 mm
Package contents: MS105GS-M2 switch, power adapter, installation guide and rubber feet
Volume (m ³): 0.0026
