MERCUSYS Dual-band Wi-Fi 6 mesh system HALO-H80X AX3000 3 UDS DSP0000041636

Features of the Mercusys Halo H80X Wi-Fi Mesh System (3-Pack)
The Mercusys Halo H80X (3-Pack) is an AX3000 Wi-Fi 6 Mesh system designed to provide a fast, stable and seamless connection throughout your home. Thanks to Mesh technology, the three units work together under a single network name and password, allowing you to move around your home without interruptions to your connection. It is an ideal solution for large homes and households with numerous connected devices.
High-speed Wi-Fi 6 AX3000
Equipped with the Wi-Fi 6 (IEEE 802.11ax) standard, the Halo H80X offers combined speeds of up to 3000 Mbps, delivering excellent performance for high-resolution streaming, online gaming, video calls and large downloads.

Up to 2402 Mbps on the 5 GHz band.
Up to 574 Mbps on the 2.4 GHz band.
Compatible with IEEE 802.11ax/ac/n/a (5 GHz) and IEEE 802.11ax/n/b/g (2.4 GHz).

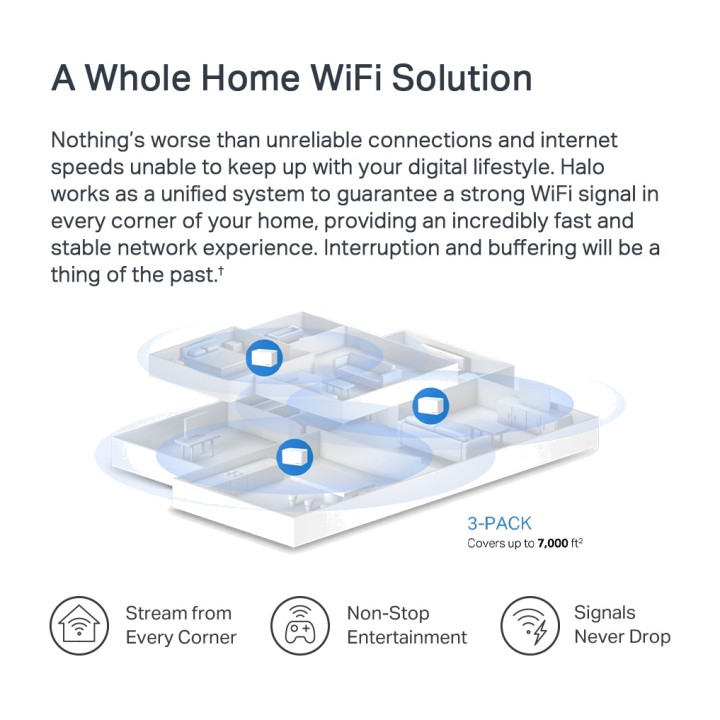

Mesh coverage throughout your home
The three Halo units create a unified Wi-Fi network that eliminates dead zones and maintains a stable connection in every room of your home. Coverage extends up to 650 m², providing a smooth browsing experience even in multi-storey homes.

Coverage of up to 650 m².
Smart roaming via the 802.11k/v/r Mesh protocol.
One Wi-Fi network for the whole house.

Connect more devices without losing performance
Thanks to the improvements introduced by Wi-Fi 6, this system is designed to handle a large number of devices connected simultaneously while maintaining a stable, low-latency connection.

Compatible with more than 150 connected devices.
Ideal for smart homes and home offices.
Greater efficiency in high-demand networks.

Easy setup and management via the app
The system can be set up in just a few minutes using the Mercusys App, which also lets you manage the network, control Internet access and manage parental control features.

Guided setup via the app.
Local and remote management.
Management by multiple administrators.

Wired Gigabit connectivity

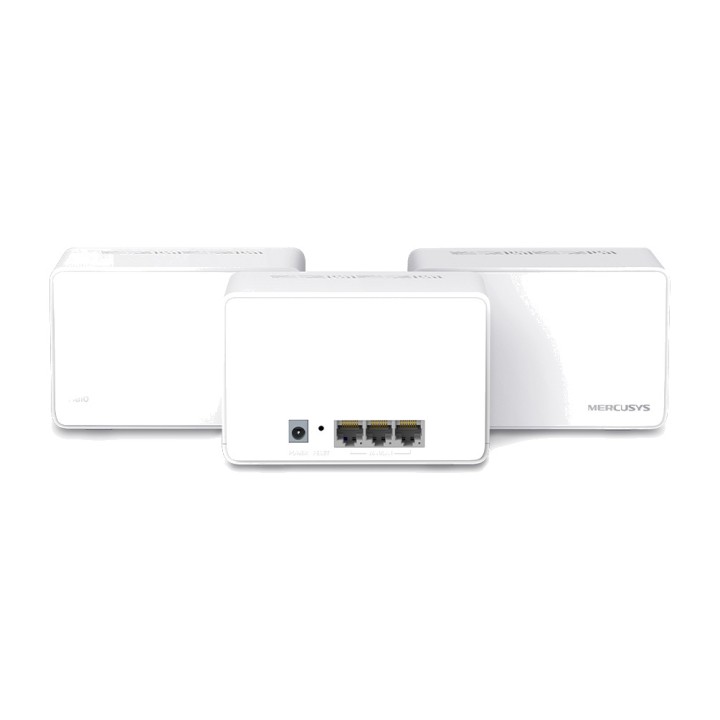

Each Halo unit features three Gigabit Ethernet ports with automatic WAN/LAN detection, allowing you to connect devices by cable at the highest available speed, including computers, consoles, TVs or NAS devices.

3 Gigabit ports per unit.
Automatic WAN/LAN detection.
High-speed wired connections.

Network security and compatibility
The Halo H80X incorporates various features to protect the network and offer broad compatibility with major Internet service providers and current devices.

WPA-PSK, WPA2-PSK and security WPA3.
Integrated SPI firewall.
IPv4 and IPv compatibility 6.
DHCP server and client.
QoS via WMM.
Router and Access Point operating modes.
WAN connection types: Dynamic IP, Static IP, PPPoE, L2TP and PPTP.
Separate guest network for 2.4 GHz and 5 GHz.

Other specifications

Transmission power: 2.4 GHz <, 20 dBm (EIRP) and 5 GHz <, 23 dBm (EIRP).
Dimensions of each unit: 128 × 81 × 83.7 mm.
Integrated reset button.
Operating temperature: 0°C to 40°C.
Operating humidity: 10% to 90% non-condensing.
Storage humidity: 5% to 90% non-condensing.
Package contents: 3 Halo H80X units, 1 RJ45 Ethernet cable, 3 power adapters and quick installation guide.
The Halo H series is not compatible with the Halo S series.
Volume (m ³): 0.0079
