MERCUSYS Dual-band mesh Wi-Fi system HALO-H32G AC1200 3 UDS DSP0000041635

Features of the MERCUSYS HALO H32G (3-Pack) WiFi Mesh System

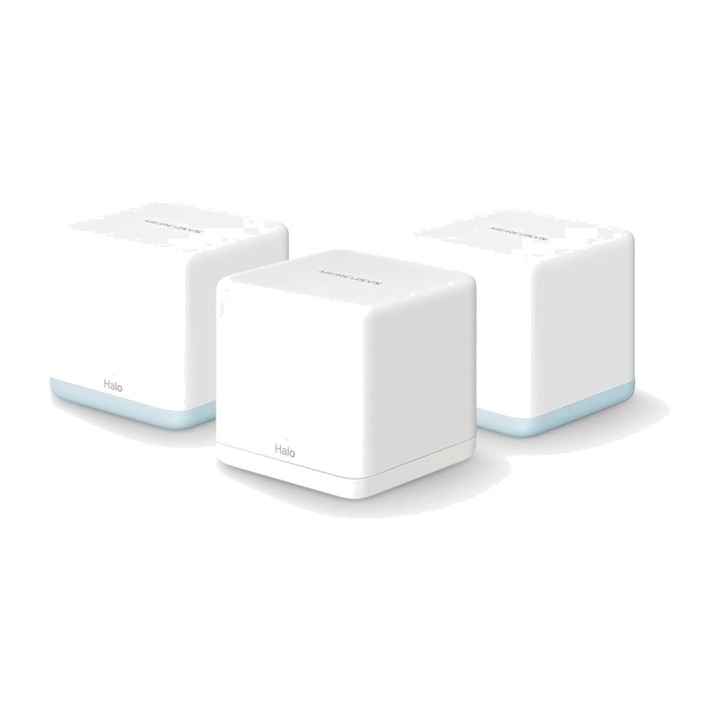

The MERCUSYS HALO H32G (3-Pack) is an AC1200 WiFi Mesh system designed to provide uniform wireless coverage throughout the home, eliminating dead zones and delivering a stable connection for multiple devices. Thanks to Mesh technology, all units work as a single network with the same name and password, allowing you to move around the home without interruptions to the connection.
Unified Mesh network with smart roaming
Integrated Mesh technology allows the different Halo units to work as a single WiFi network. The system automatically switches to the node with the best coverage as you move around your home, ensuring a stable, continuous connection without the need to manually switch networks.

Unified WiFi network with a single name and password.
Smart roaming compatible with 802.11k/v/r protocols.
Coverage of up to 320 m² (3.500 ft²).

Dual-band AC1200 WiFi for multiple devices
The system offers a combined wireless speed of up to 1.200 Mbps across the 2,4 GHz and 5 GHz bands. It is designed to maintain fast, stable connections in homes with numerous devices connected simultaneously.

Up to 867 Mbps on the 5 GHz band.
Up to 300 Mbps on the 2,4 GHz band.
Compatible with up to 100 connected devices.

Easy installation and management from the MERCUSYS app
Initial setup is quick and easy using the MERCUSYS app, which also lets you manage the network and users and configure settings both locally and remotely.

Guided setup from the MERCUSYS app.
Local and remote management.
Support for multiple administrators.

Flexible connectivity for different installations
The HALO H32G can operate in either Router mode or Access Point mode, adapting to different types of home networks. It is also compatible with the main Internet service providers and modems on the market.

Router and Access Point operating modes.
Compatible with Dynamic IP, Static IP, PPPoE, L2TP and PPTP.
Compatible with IPv4 and IPv 6.

Network security and control
The system includes security and management features to protect the home network and make it easy for guests to connect without compromising the main network.

Encryption WPA-PSK/WPA2-PSK.
Integrated SPI firewall.
Separate guest WiFi network on 2,4 GHz and 5 GHz.
DHCP server and client.
Quality of Service (WMM).

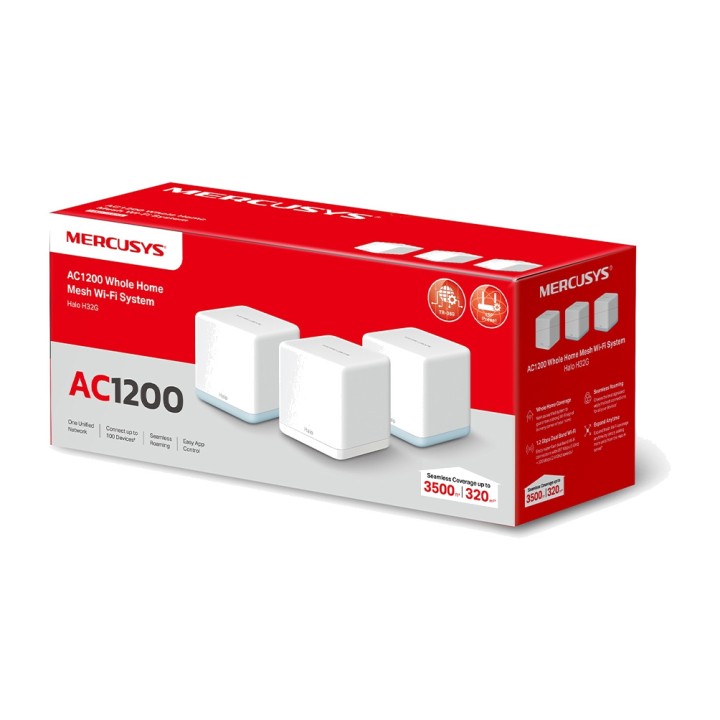

Compact design and package contents
The Halo units feature a compact design that makes them easy to integrate into any room in the home. The package includes all the accessories needed for installation right from the start.

Dimensions of each unit: 88 × 88 × 88 mm.

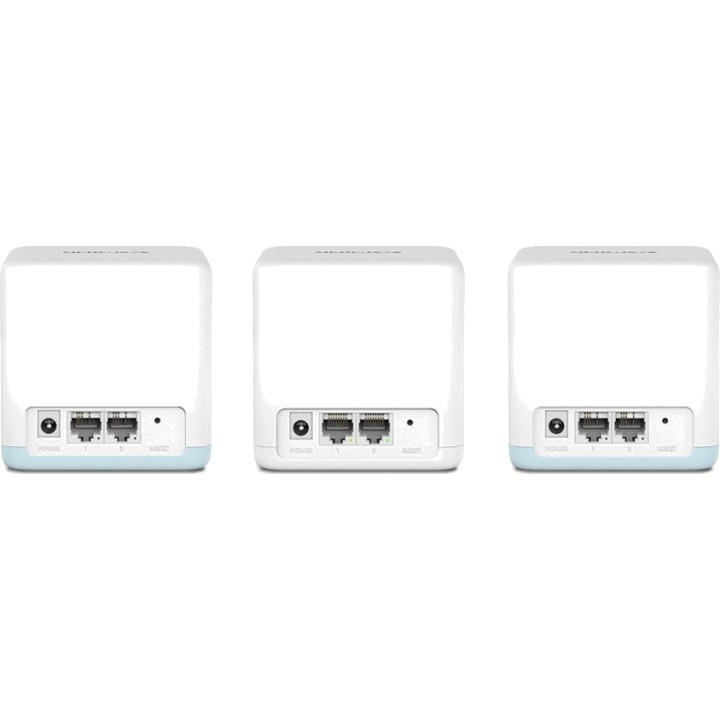

1 Halo H30G unit with 2 auto-sensing Gigabit WAN/LAN ports.
2 Halo H30 units with 2 10/100 Mbps Ethernet ports.
Integrated reset button.
1 Ethernet cable RJ45.
3 power adapters.
Quick installation guide.

Other specifications

WiFi standards: IEEE 802.11a/n/ac (5 GHz) and IEEE 802.11b/g/n (2.4 GHz).
Transmission power: 2.4 GHz <, 20 dBm (EIRP) and 5 GHz <, 23 dBm (EIRP).
Optimized reception sensitivity for 2.4 GHz and 5 GHz networks.
Operating temperature: 0°C to 40°C.
Operating humidity: 10%~90% non-condensing.
Storage humidity: 5%~90% non-condensing.
Mesh system expandable using Halo H30G and Halo devices H30.
The Halo H series is not compatible with Halo S series devices.
Volume (m ³): 0.0068
