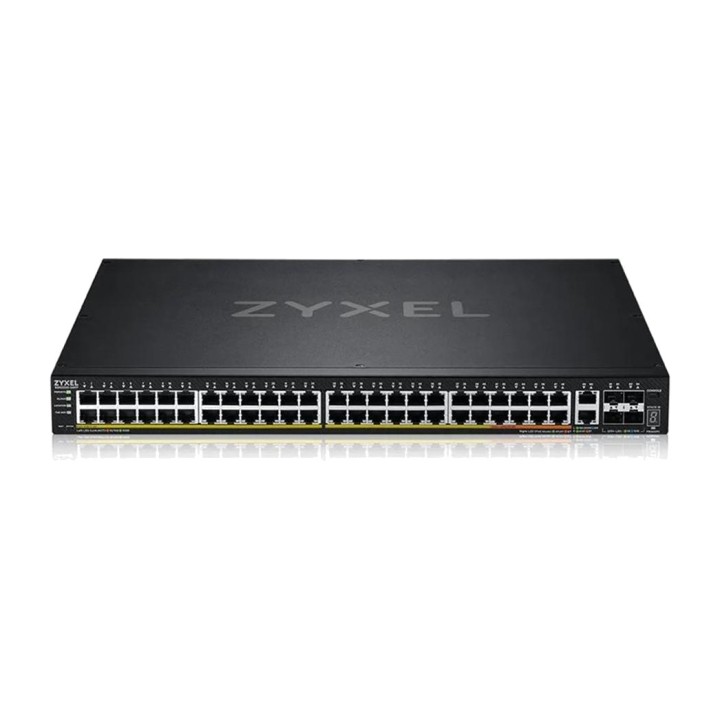

ZYXEL 48-port Gigabit PoE L3 managed rack switch XGS2220-54FP 960W DSP0000038107

Features of the Zyxel XGS2220 Series XGS2220-54FP
The Zyxel XGS2220-54FP is a high-performance managed switch designed for business environments that require high network capacity, advanced PoE power and Layer 3 features. With 48 Gigabit ports, 10 Gigabit uplinks and a powerful 960 W PoE budget, it is an ideal solution for offices, educational institutions, hotels or installations with WiFi access points, IP cameras and IoT devices that require power and stability.
High performance and Layer 3 switching
With a switching capacity of 216 Gbps and a forwarding rate of up to 161 Mpps, this switch ensures smooth traffic even on networks with a high device density. Its Layer 3 switching features enable advanced traffic management and efficient network segmentation.

Switching capacity: 216 Gbps
Forwarding rate: 161 Mpps
Layer 3 switching with 64 routing tables
32 IP interfaces
Up to 1000 IPv4 entries and 512 IPv6 entries

PoE++ power for demanding infrastructures
The 960 W PoE budget can power multiple high-consumption devices simultaneously, such as WiFi 6/6E access points, PTZ cameras or IP phones. Compatible with the IEEE 802.3at and 802.3bt standards, it supports PoE+ and PoE++ up to 60 W per port.

40 100/1000Base-T RJ-45 PoE+ ports
8 100/1000Base-T RJ-45 Po ports E++ (60 W)
2 1/2.5/5/10GBase-T RJ-45 Po ports E++ (60 W)
Total PoE budget E: 960 W
Compatible with IEEE 802.3at and 802.3bt

Flexible connectivity and 10 Gigabit links
It features 10 Gigabit uplink ports that allow the switch to be integrated into high-performance backbone networks or connected to high-speed servers and storage. The combination of RJ-45 and SFP+ ports offers maximum versatility for deployment.

48 Gigabit Ethernet ports
6 10 Gigabit uplink ports
4 1/10GBase-SX SFP+ ports
Supports Jumbo Frames up to 9000 bytes

Reliability, protection and professional design
Designed for continuous operation, the XGS2220-54FP features 2KV surge protection and ESD protection up to 8 KV (air discharge). Its Smart Fan system optimises cooling according to the workload, reducing noise and energy consumption.

Surge protection 2KV
ESD protection: 8 KV (air) and 6 KV (contact)
MTBF: 227.352 hours
Operating temperature: -20 °C to 50 °C
Desktop format and rack mounting (kit included)

Memory and management capacity
Equipped with 1 GB of RAM and 64 MB of Flash memory, this switch delivers stable performance and sufficient capacity for advanced configurations. Its MAC table supports up to 32K entries, making it suitable for medium- and large-sized enterprise networks.

MEMORY RAM: 1 GB
Flash Memory : 64 MB
MAC address table: 32K entries
Packet buffer : 2 MB
IGMP protocol with IGMP snooping

Physical specifications and power supply
Features an internal power supply compatible with 100-240 V electrical networks, making it easy to install in various professional environments. Its rack-mount format is designed to fit into standard communications cabinets.

Voltage: AC 100-240 V (50/60 Hz)
Dimensions: 44.1 cm x 33 cm x 4.4 cm
Weight: 5kg
Power cable included
Location: Europe

Environmental and storage conditions

Storage temperature: -40 °C to 70 °C
Operating humidity: 10 - 95 % non-condensing
Storage humidity: 10 - 90 % non-condensing
Packaged weight: 6.33 kg
Packaging dimensions: 58 cm x 50.3 cm x 9.5 cm
Volume (m ³): 0.0281
