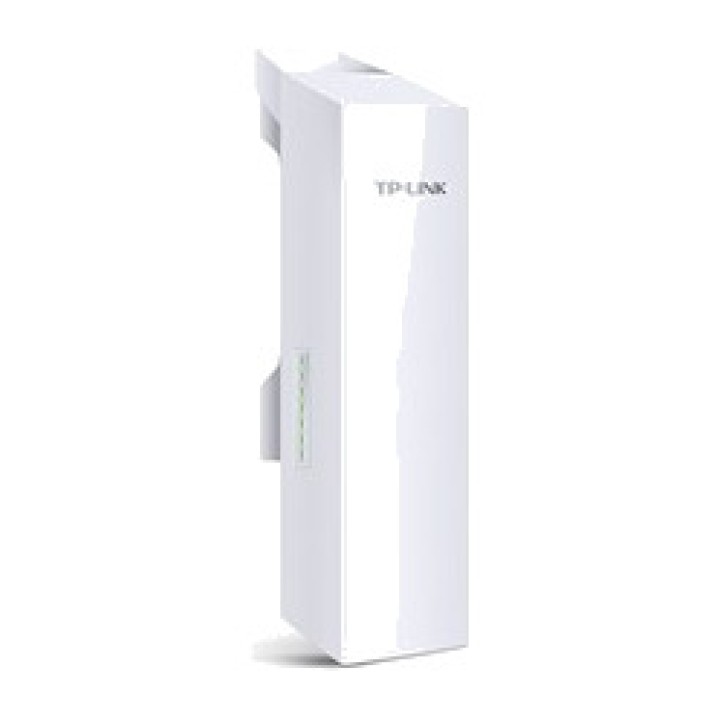

TP-LINK Outdoor WiFi access point with passive PoE and 9 dBi antenna PHAROS-MAXTREAM 2,4GHZ 300MBPS CPE210

Features dual-polarized directional 9dBi MIMO antennas
2x2
Adjustable transmission power from 0 to 27dBm/500mw
System-level optimizations for long-distance wireless transmission
with a range of more than 5 kilometers
TP-LINK Pharos MAXtream TDMA (Time Division Multiple Access) technology
improves product performance, capacity and latency
making it ideal for PTMP applications
Pharos Control Centralized Management System
Operating modes: AP / Client / Bridge/ Repeater / Router AP / Router
AP Client (WISP) Client
Passive PoE adapter supports up to 60 metres (200 feet) of
PoE deployment and allows the device to be reset remotely

Hardware Features
CPU Qualcomm Atheros 560MHz, MIPS 74Kc processor
DDR2 64MB RAM, Flash 8MB
Interface 1 shielded 10/100Mbps Ethernet port (LAN0, Passive PoE
Input)
1 shielded 10/100Mbps Ethernet port (LAN1, Passive PoE Passthrough)
1 grounding terminal
1 Reset button
Power supply Passive PoE adapter via LAN0 (+4,5pins, -
7,8pins)
Voltage range: 16-27VDC
Maximum power consumption of 10.5 Watts
Note: When configured using the passive POE adapter, the power
obtained from the power supply will vary depending on the
length of the connection cable.
Dimensions 224 x 79 x 60 mm
Antenna type 2x2 MIMO dual-polarized directional antenna of
9dBi
Beamwidth: 65 (H-plane) / 35 (E-plane)
Note: For more details, please refer to the data sheet
Protection ESD protection of 15KV
Lightning protection of 6000V
Enclosure Outdoor ASA-stabilized plastic material
Waterproof certified IPX5
WIRELESS FEATURES
IEEE 802.11b/g/n Wireless Standards (with Pharos MAXtream
disabled)
TDMA Mode Proprietary Protocol (with Pharos MAXtream enabled)
Wireless Speed Up to 300Mbps (40MHz, Dynamic)
Up to 144.4Mbps (20MHz, Dynamic)
Up to 72.2Mbps (10MHz, Dynamic)
Up to 36.1Mbps (5MHz, Dynamic)
Frequency 2.4~2.483GHz
Note: Available operating frequencies may vary depending on
the limitations of the countries or regions where this device is used.
Reception Sensitivity • 802.11b:
11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm
• 802.11g:
54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm
• 802.11n:
MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm,
MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm,
MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm,
MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm,
MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm
Transmission Power 27dBm/500mw (adjustable power up to 1dBm)
Note: The maximum transmission power may vary across different
channels depending on the limitations of the countries or regions where the
device is used.
SOFTWARE FEATURES
Pharos MAXtream TDMA Technology Wireless Settings
802.11b/g/n modes
Selectable bandwidth: 5/10/20/40MHz
Automatic channel selection
Transmission power control
Dynamic Frequency Selection (DFS)
WDS enabled/disabled
Security: Encryption WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP),
64/128/152-bit WEP encryption
SSID Broadcast enabled/disabled
Multi-SSID with VLAN tagging (AP mode only)
Distance/ACK Timeout Setting
Wi-Fi MAC address filtering
Advanced Wi-Fi features:
Beacon Interval/RTS Threshold/Fragmentation
Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management Discovery and remote management through Pharos control
control Pharos
HTTP/HTTPS web-based administration
System log
SNMP Agent (v2c)
Ping Watch Dog
Dynamic DNS
SSH Server
System Tools Wi-Fi signal quality indicators:
Signal strength/Noise/Transmission CCQ/CPU/Memory
MONITORS: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum analyzer
Speed test
Ping
Traceroute
System-level optimizations Optimized IGMP Snooping/Proxy
for multicast applications
Hardware watchdog
POE ADAPTER SPECIFICATIONS
Dimensions (W*D*H) 110*57*33.5mm
Input Current 0.8A Ma x @ 100VAC
Input Voltage 100VA~240VAC @ 50Hz~60Hz
Output 24VDC, 1.0A Max
+4, 5pins, -7, 8pins. (Supports up to 60m of power over Ethernet)
Efficiency > ,80%
Output Voltage 100VA~240VAC @ 50Hz~60Hz
Input 100-240VAC, 50/60Hz
Status LEDs Power Green: 0~0.8A
RED: 0.8A~1.0A
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Interfaces 1 AC jack with ground
1 shielded 10/100Mbps Ethernet port (Power + Data)
1 shielded 10/100Mbps Ethernet port (Data)
Button Remote Reset Button
Others
Certifications CE, FCC, Ro HS, IPX5
Package Contents Wireless Outdoor CPE
Passive POE Adapter of 24V 1A
Mounting Straps
power cord
Installation guide
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or
Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend using one of the following web browsers
for an enhanced user experience: Google Chrome, Safari or Firefox.
Internet Explorer is not recommended.
Volume (m ³): 0.0039
