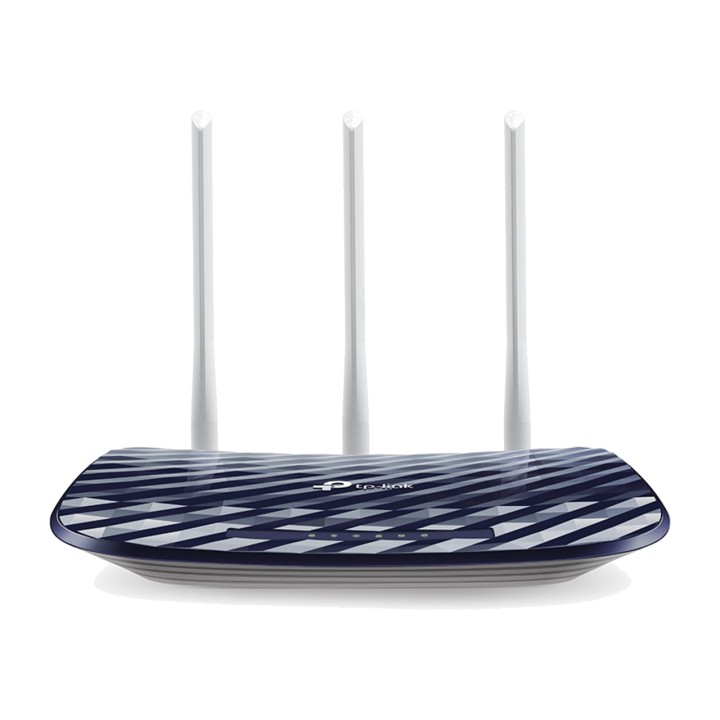

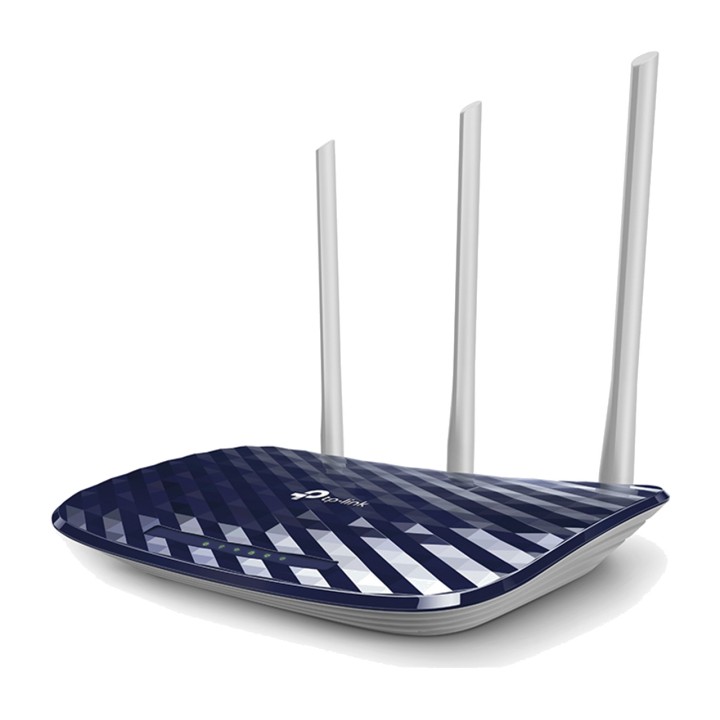

TP-LINK Dual-band WiFi 5 router ARCHER-AC750 433MBPS ARCHERC20

Archer AC750 Dual-Band Wireless Router C20

Supports 802.11ac standard - the next generation of Wi-Fi.
Simultaneous 2.4GHz and 5GHz connections at 300Mbps and 433Mbps for a
total of 733Mbps of available bandwidth.
Stable omnidirectional signal and superior wireless coverage.

Hardware Features

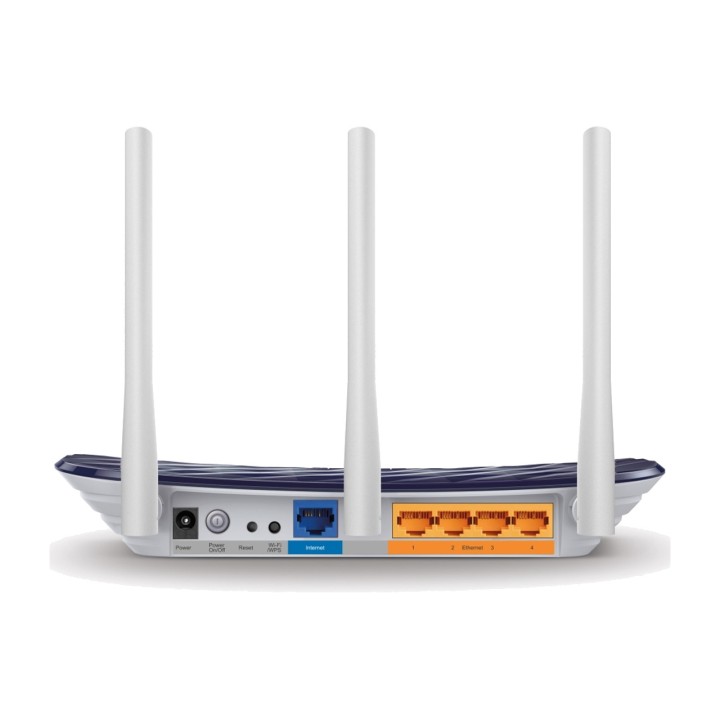

Interface 4 10/100Mbps LAN ports
1 10/100Mbps WAN port
Buttons WPS/Reset button
Wi-Fi On/Off button
Power On/Off button
External power supply 9V/0.6A(EU)
Dimensions 230 x 144 x 35mm. (9.1 x 5.7 x 1.4 in)
Antennas 2 × 2.4GHz antennas
1 × 5GHz antenna
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz: Up to 433Mbps
2.4GHz: Up to 300Mbps
Reception Sensitivity 5GHz:
11a 54M: -76dBm, 11ac VHT20 MCS8: -71dBm,
11ac VHT40 MCS9: -66dBm, 11ac VHT80 MCS9:
-62dBm
2.4GHz:
11g 54M: -76dBm11n, HT20 MCS7: -73dBm,
11n HT40 MCS7: -71dBm
Wireless Functions Enable/Disable Wireless Radio, WDS
Bridge, WMM, Wireless Statistics
Wireless Security 64/128-bit encryption WEP,WPA / WPA2,WPA-
PSK/ WPA2-PSK
CE Transmission Power:
<,20dBm(2.4GHz)
<,23dBm(5GHz)
SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control
Management Access Control
Local management
Remote Management
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec
Access Control Parental Control, Local Management Control
Host Control List
Access Schedules
Rule Management
DoS Firewall Security, SPI Firewall
Filtering by IP/MAC addresses/domain
IP and MAC address binding
Protocols Supports IPv4 and IPv6
Guest Network 1 x 2.4GHz guest network
1 x 5GHz guest network
Others
CE, FCC, RoHS certifications
Package Contents Dual Bandal AC750 Wireless Router Archer
C20
Power supply
Ethernet cable RJ45
Quick installation guide
Box Dimensions 285x223x91mm
System Requirements Microsoft Windows XP/Vista /7/8/8.1/10, MAC OS,
UNIX or Linux
Internet Explorer, Firefox, Chrome, Safari or other Java-based browsers-
Fiber, Cable or DSL Modem/Terminal
(For Internet access)Subscription with an Internet Service Provider
Internet
Environmental Factors Operating Temperature : 0~40 (32
~104)
Storage temperature : -40~70 (-40 ~158)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0055
