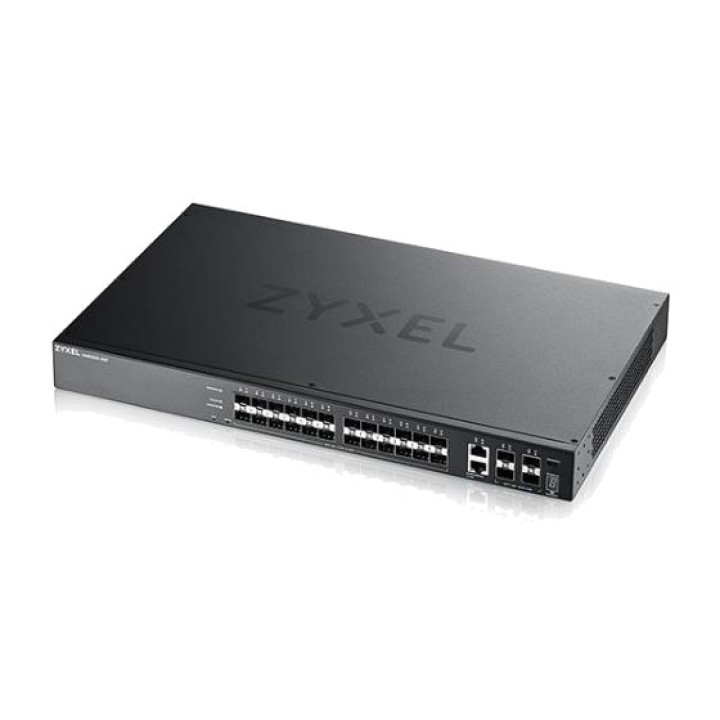

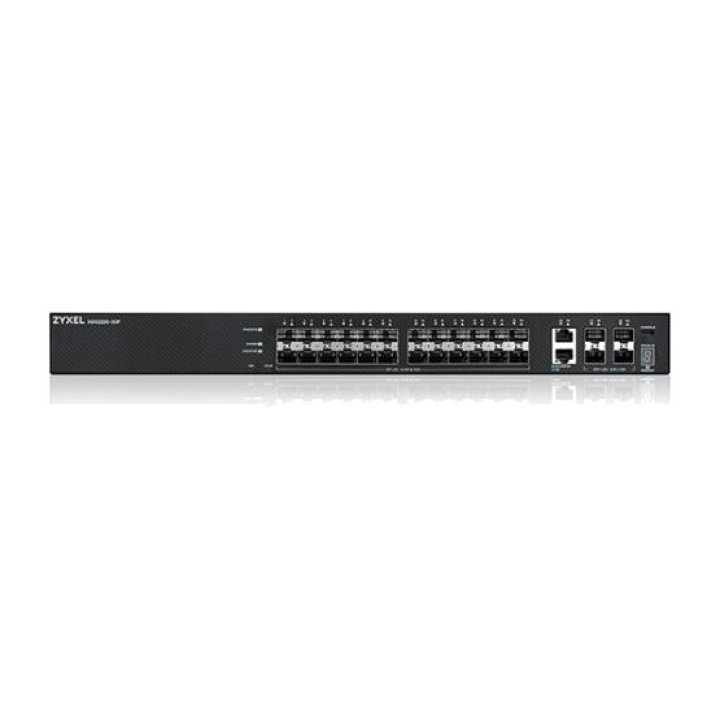

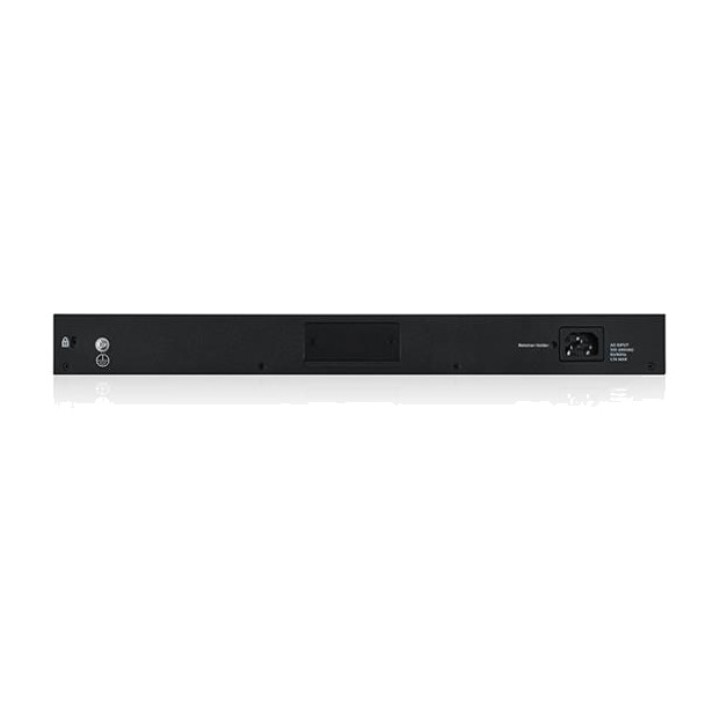

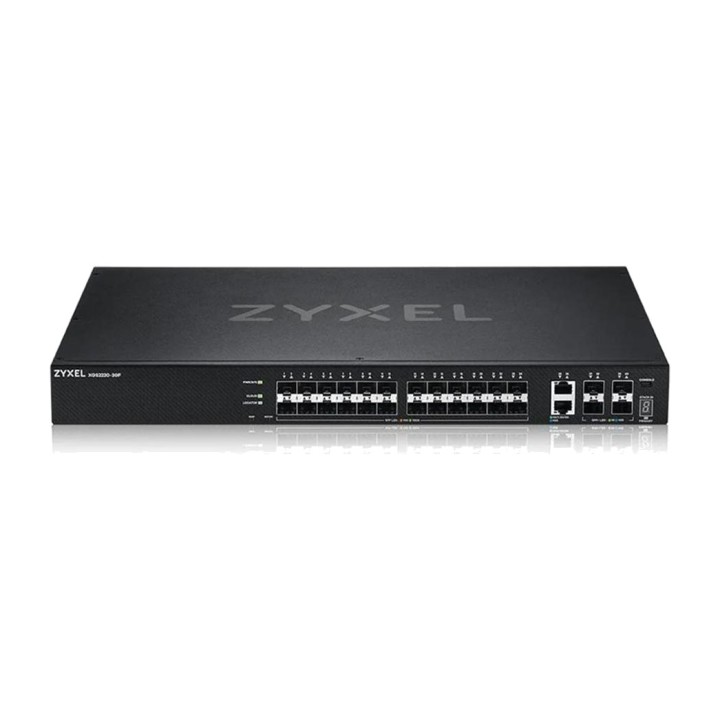

ZYXEL L3 managed switch with 24 fibre ports for rack mounting XGS2220-30F 4X-SFP+ DSP0000035564

Features of the Zyxel XGS2220-30F 24-Port Managed Switch
The Zyxel XGS2220-30F is an enterprise-grade managed switch designed for environments requiring high switching capacity, advanced connectivity and Layer 3 features. Ideal for medium and large corporate networks, data centres or educational environments, this switch offers an excellent balance of performance, scalability and reliability.
High-performance connectivity for demanding environments
The Zyxel XGS2220-30F integrates 24 Gigabit SFP ports and 6 10G uplink ports, enabling a stable data flow even under heavy loads. With a switching capacity of up to 168 Gbps, this device ensures a smooth network without bottlenecks.

24 x SFP 100/1000 Base-X
4 x SFP/SFP+ 10 Gigabit
2 x RJ-45 Multi-Gig (100/1000/2.5G/5G/10G)
Transmission speed: 125 Mbps
Packet buffer : 2 MB

Advanced Layer 3 and security features
This model includes comprehensive Layer 3 switching features, such as static routing, IGMP snooping and support for IPv4/IPv6 forwarding tables. This makes it suitable for infrastructures with network segmentation and intensive traffic.

Routing tables: up to 64
IPv4 entries: up to 1000
IPv6 entries: up to 512
IP interfaces: 32
ESD protection: 8KV (air), 6KV (contact)

Robust and efficient design for professional installations
Designed for rack use, the Zyxel XGS2220-30F includes a mounting kit and features a Smart Fan that adjusts its operation according to the temperature, reducing noise and extending the system's service life. In addition, its resistance to extreme temperatures makes it a reliable choice for demanding technical rooms.

Format: desktop or rack-mount
Operating temperature: from -20 °C to 50 °C
MTBF: 352.923 hours
Dimensions: 44,1 x 27 x 4,4 cm
Weight: 3.5kg

Efficient power supply and guaranteed durability
The switch includes an internal power supply with a wide voltage range, suitable for international installations. Its design is intended to provide maximum electrical stability and energy efficiency.

Voltage: AC 100-240 V, 50/60 Hz
Energy-efficient consumption
Power cable included

Other specifications

MEMORY RAM: 1 GB
Flash Memory : 64 MB
Jumbo frame size: up to 9000 bytes
MAC address table: up to 32K entries
Geographical location: Europe
Operating humidity range: 10% - 95% non-condensing
Storage humidity range : 10% - 90%
Volume (m ³): 0.0250
