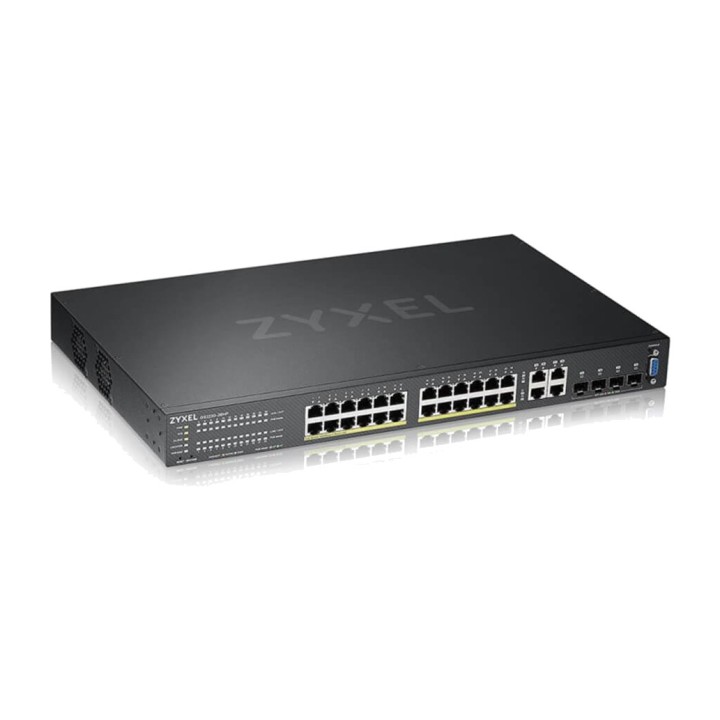

ZYXEL 24-port Gigabit PoE managed switch with 4 combo SFP GS2220-28HP DSP0000025075

Highlights

L2 managed, web-based administration
Quality of Service (QoS) support, location settings configuration (CLI)
Number of basic RJ-45 Ethernet switching ports : 24
10BASE-TX, 1000BASE-T
MAC address table: 16000 entries Switching capacity: 56 Gbit/s
Access control list (ACL)
Rack mounting
Power over Ethernet (PoE)

Zyxel GS2220-28HP-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Number of basic ports
RJ-45 Ethernet switching: 24. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE
802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting

Ports and Interfaces
Number of basic RJ-45 Ethernet switching ports
24
Basic-type RJ-45 Ethernet switching ports
Gigabit Ethernet (10/100/1000)
Combo SFP port count
4
Connection
SUPPORT 10G
NOT
Link aggregation
YES
Storm control
YES
Network standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE
802.3z Virtual LAN functions
Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Rate limiting
YES
Spanning Tree Protocol
YES
Flow control support
YES
VLAN support
YES
Copper Ethernet cabling technology
10BASE-TX, 1000BASE-T
Power control
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
463,5 W
Environmental conditions
Heat dissipation
1580,535 BTU/h
Operating temperature range
0 - 50 C
Storage temperature range
-40 - 70 C
Relative humidity range for operation
10 - 95%
Relative humidity range during storage
10 - 95%
WEIGHT AND DIMENSIONS
HEIGHT
44 mm
WIDTH
441 mm
WEIGHT
3,8 kg
DEPTH
270 mm
SECURITY
Access control list (ACL)
YES
Supported security algorithms
SNMP, SNMPv2, SNMPv 3, SSH-2, SSL/TLS
Authentication
Guest VLAN, MAC-based authentication
DHCP features
DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
IGMP
YES
MAC address filtering
YES
Authentication type
IEEE 802.1x, RADIUS
Packaging
Package height
107 mm
Package width
616 mm
Cables included
AC
Package weight
4,97 kg
Package depth
355 mm

Data transmission
Switching capacity
56 Gbit/s
MAC address table
16000 entries
Packet buffer
1,5 MB
Forwarding rate
42 Mpps
Management features
Web-based administration
YES
Location settings configuration (CLI)
YES
Quality of Service (QoS) support
YES
Switch cover
L2
System event log
YES
Switch type
Managed
Power over Ethernet (PoE)
Number of Power over Ethernet (PoE) ports
24
Power over Ethernet (PoE)
YES
Power over Ethernet (PoE) budget
375 W
Design
CERTIFICATION
LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A
Product color
BLACK
Rack mounting
YES
Performance
Upgradeable firmware
YES
Flash Memory
32 MB
Internal memory
256 MB
Noise level
49,8 dB
Mean time between failures
693245 h
Volume (m ³): 0.0242
