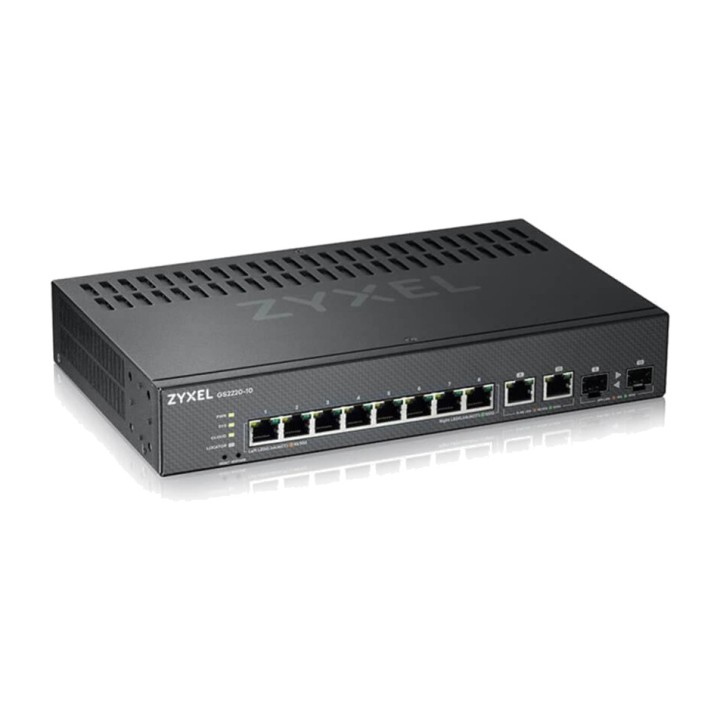

ZYXEL 8-port Gigabit L2 managed switch GS2220-10 2X-COMBO DSP0000025070

Highlights

L2 managed, web-based administration
Quality of Service (QoS) support, location settings configuration (CLI)
Number of basic RJ-45 Ethernet switching ports : 10
10BASE-TX, 1000BASE-T
MAC address table: 16000 entries Switching capacity: 20 Gbit/s
Access control list (ACL)
Rack mounting

Zyxel GS2220-10-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Number of basic switching ports
RJ-45 Ethernet switching: 10. MAC address table: 16000 entries, switching capacity: 20 Gbit/s. Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE
802.1s, IEEE 802.1w , IEEE 802.1x, IEEE....
Rack mounting

Ports and Interfaces
Number of basic RJ-45 Ethernet switching ports
10
Basic-type RJ-45 Ethernet switching ports
Gigabit Ethernet (10/100/1000)
Connection
SUPPORT 10G
NOT
Link aggregation
YES
Storm control
YES
Network standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features
Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Rate limiting
YES
Spanning Tree Protocol
YES
Flow control support
YES
VLAN support
YES
Copper Ethernet cabling technology
10BASE-TX, 1000BASE-T
Power control
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
11 W
Environmental conditions
Heat dissipation
37.51 BTU/h
Operating temperature range
0 - 50 C
Storage temperature range
-40 - 70 C
Relative humidity range for operation
10 - 95%
Relative humidity range during storage
10 - 95%
WEIGHT AND DIMENSIONS
HEIGHT
44 mm
WIDTH
267 mm
WEIGHT
1,3 kg
DEPTH
162 mm
SECURITY
Access control list (ACL)
YES
Supported security algorithms
SNMP, SNMPv2, SNMPv 3, SSH-2, SSL/TLS
Authentication
Guest VLAN, MAC-based authentication
DHCP features
DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
IGMP
YES
MAC address filtering
YES
Authentication type
IEEE 802.1x, RADIUS
Packaging
Package height
61 mm
Package width
375 mm
Cables included
AC
Package weight
2,21 kg
Package depth
235 mm

Data transmission
Switching capacity
20 Gbit/s
MAC address table
16000 entries
Packet buffer
1,5 MB
Forwarding rate
15 Mpps
Management features
Web-based administration
YES
Location settings configuration (CLI)
YES
Quality of Service (QoS) support
YES
Switch cover
L2
System event log
YES
Switch type
Managed
Power over Ethernet (PoE)
Power over Ethernet (PoE)
NOT
Design
CERTIFICATION
LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A
Product color
BLACK
Rack mounting
YES
Performance
Upgradeable firmware
YES
Flash Memory
32 MB
Internal memory
256 MB
Fanless
YES
Mean time between failures
1213492 h
Logistics data
Harmonized System (HS) Code
85176990
Multicast functions
Multicast support
YES
Volume (m ³): 0.0073
