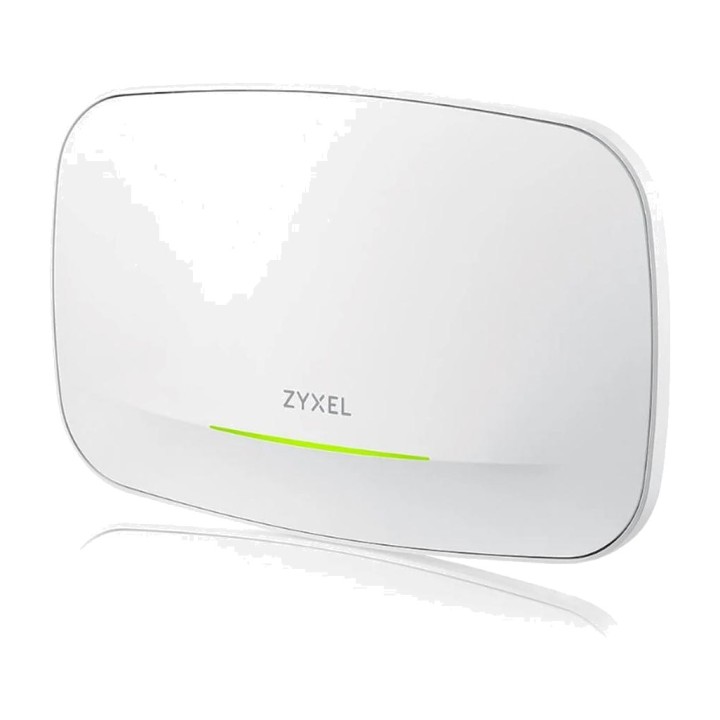

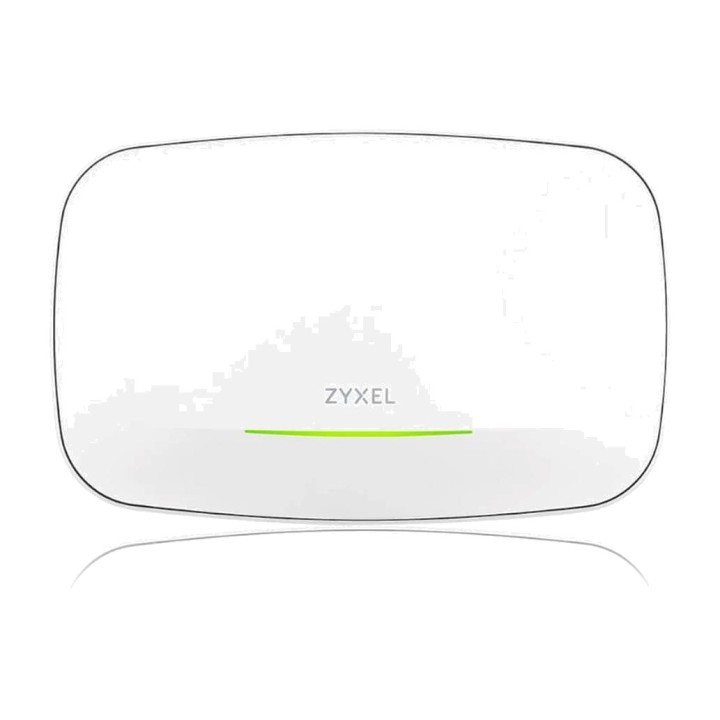

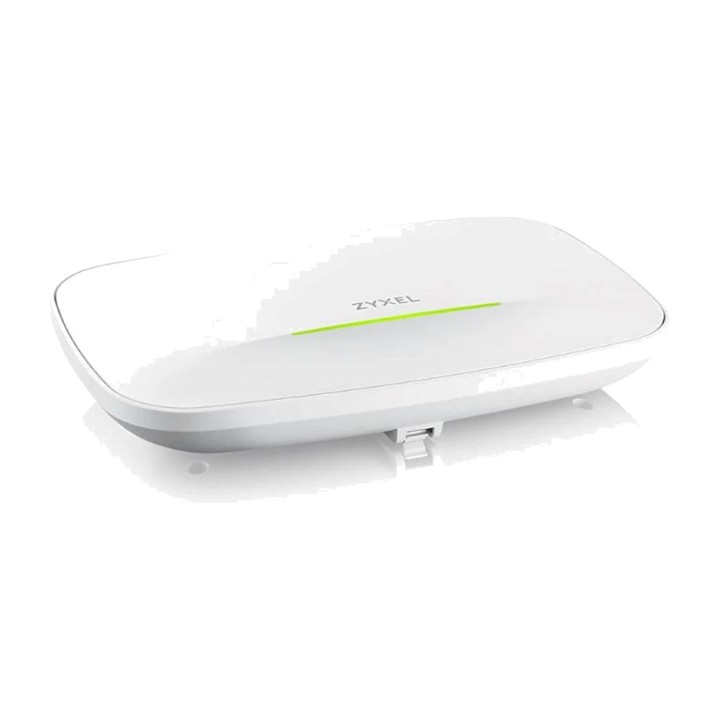

ZYXEL WiFi 7 ceiling access point NWA130BE DSP0000023782

Zyxel NWA130BE AP WiFi7 BE11000 2x2 2x2.5GbE
Brand ZyXEL
MODEL NWA130BE-EU0101F

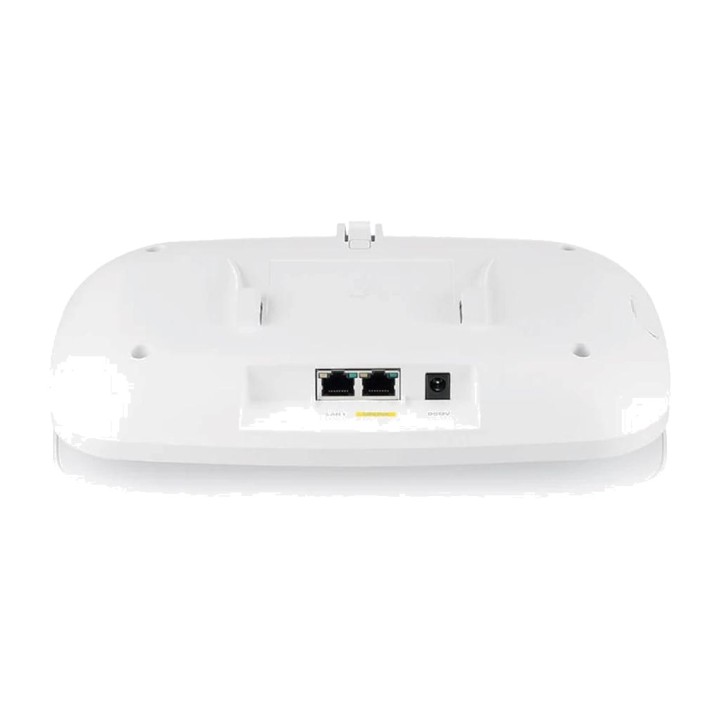

Hardware features - Ethernet port: 2 x 1/2.5Gbps LAN
- Power:
PoE (802.3at): power draw 24 W
DC input : 12 VDC 2A
Wireless features - Standard: IEEE802.11 be/ax/ac/n/g/b/a
- MIMO: MU-MIMO
- Wireless speed
2.4 GHz: 688 Mbps
5 GHz: 4324 Mbps
6 GHz: 5764 Mbps
- Frequency band
2.4 GHz:
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
USA (FCC): 5.15 to 5.35 GHz, 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz, 5.470 to 5.725 GHz
6 GHz:
USA (FCC): 5.925 to 6.425 GHz, 6.525 to 7.125 GHz
European (ETSI): 5.925 to 6.425 GHz
- Bandwidth: 20-, 40- ,80-, 160- , 240- and 320-MHz
- Typical conducted transmit output power
US (2.4GHz/5GHz/6GHz): 27/25/23dBm
EU (2.4GHz/5GHz/6GHz): 19/25/21dBm
RF design
- Antenna type: Internal antenna
- Antenna gain
2.4 GHz: 3 dBi , 2X2:2SS
5GHz: 4 dBi , 2X2:2SS
6GHz: 4 dBi , 2X2:2SS
- Minimum receive sensitivity: Min. receive sensitivity down to -99 dBm
WLAN function
- Band steering
- WDS/mesh
- Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
- DCS
- Load balancing
- Advanced cellular coexistence
Other Security Features
- Encryption
WEP
WPA
WPA2-PSK
WPA3
- Authentication
WPA
WPA2-Enterprise
EAP
IEEE 802.1X
RADIUS authentication
- Rogue AP detection
L2-isolation
MAC filtering
Environment
- Operating temperature
0C a 50C / 32F a 122F
- Operating humidity
10% to 90% (non-condensing)
- Storage temperature
40 C a 70 C/-40 F a 158 F
- Storage humidity
10% to 90% (non-condensing)
Certifications
- RADIUS
FCC Part 15C
FCC Part 15E
FCC Part 2.1091
ETSI EN 300 328
EN 301 893
Draft EN 303 687
EN 50385
EN 50665
EN IEC 62311,LP0002
- EMC
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55032
EN55035
EN61000-3-2/-3
EN60601-1-2
BSMI CNS15936
- Safety
EN 62368-1
IEC 62368-1
BSMI CNS15598-1
Dimensions and weight
- 250 x 160 x 47 mm
- 808 g
Volume (m ³): 0.0033
