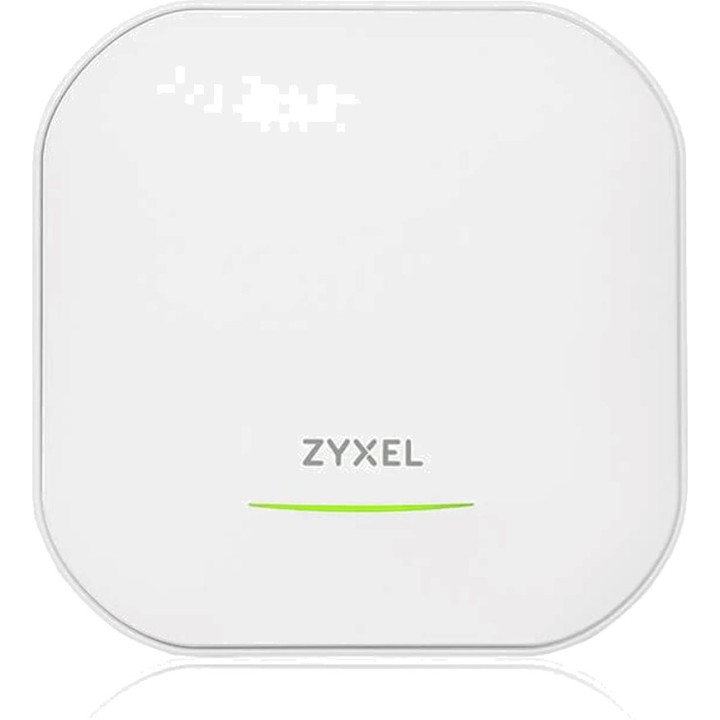

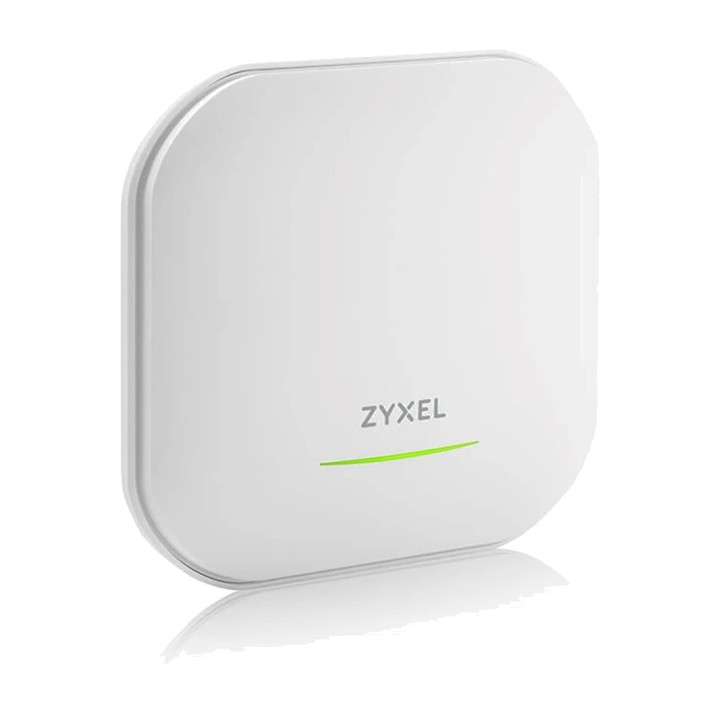

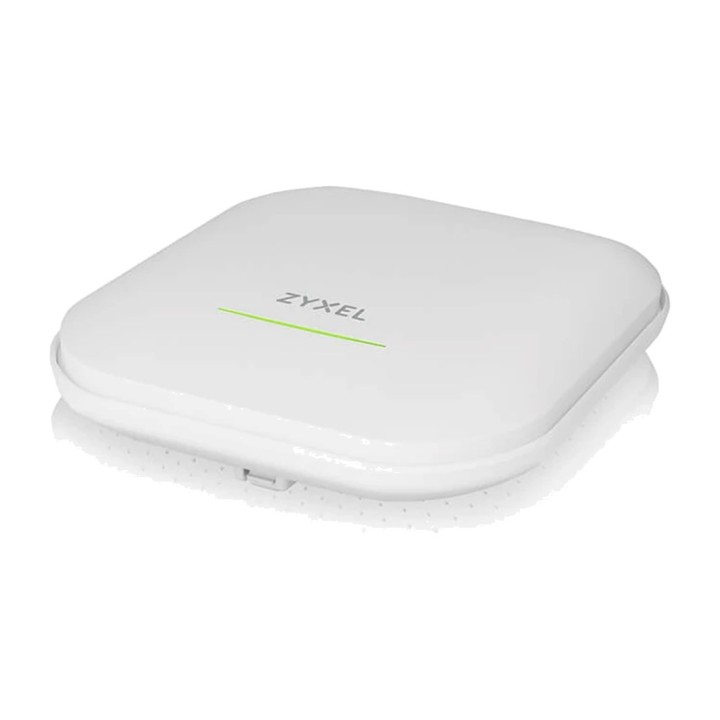

ZYXEL Enterprise WiFi 6E access point with 2.5 Gigabit port WAX620D-6E 4X4 DSP0000016463

Zyxel WAX620D-6E AP WiFi6E Nebula 4x4 1x2.5GbE

Brand ZyXEL
MODEL WAX620D-6E-EU0101F

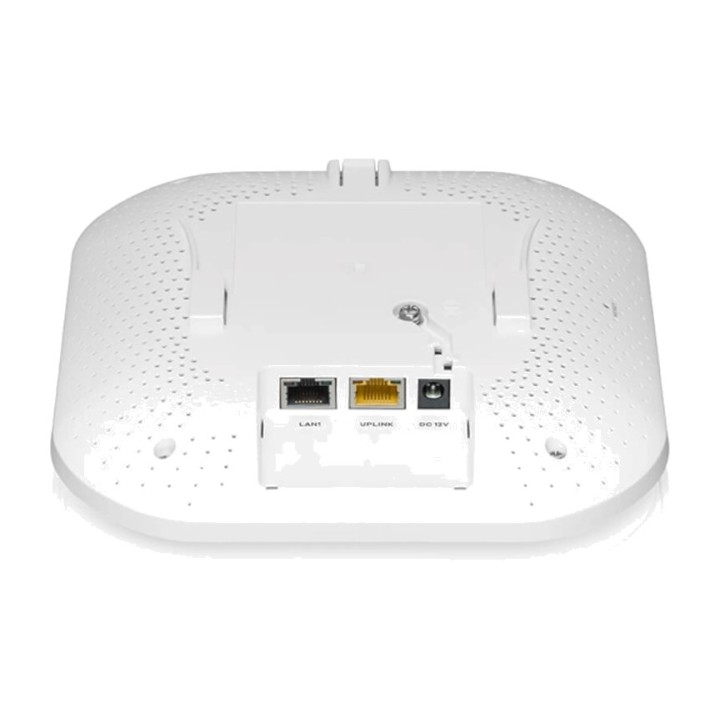

Features Ports and interfaces
- 1 x 1/2.5Gbps LAN
- 1 x 1Gbps LAN
Power control
- Power over Ethernet (PoE)(802.3)at: power draw 21.5 W
- PoE modes:
IEEE802.3af: No Wireless
IEEE802.3at: Unrestricted
IEEE802.3bt: Unrestricted
- DC input : 12 VDC 2A
SECURITY
- Encryption : WEP, WPA, WPA2-PSK, WPA3.
- Authentication: WPA, WPA2, WPA3-Enterprise, EAP, IEEE 802.1X, RADIUS authentication
- Access control: L2-isolation, MAC filtering, Rogue AP detection
Antenna
- Antenna type: 4x4 + 2x2 Dual-optimized
- Gain:
2.4 GHz: Peak Gain 3dBi
5 GHz: Peak Gain 5dBi
6 GHz: Peak Gain 6dBi
- Minimum receive sensitivity: up to -101 dBm
Frequency band
- 2.4 GHz
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
- 5 GHz
USA (FCC): 5.15 to 5.35 GHz, 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz, 5.470 to 5.725 GHz
- 6 GHz
USA (FCC): 5.925 to 6.425 GHz, 6.525 to 7.125 GHz
European (ETSI): 5.925 to 6.425 GHz
Performance
- Transfer rate (max): 4800 Mbps
- 2.4 GHz: Yes
- 5 GHz: Yes
- 6GHz: Yes
- Network standards: IEEE 802.11 ax/ac/n/g/b/a
- Ethernet: LAN, data transfer speed up to 2.5Gbps
- Bandwidth: 20-, 40-, 80- and 160-MHz
- VLAN support: Yes
- Wi-Fi Multimedia (WMM): Yes
- Certifications:
Radio: FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, EN 303 687, LP0002
EMC: FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN60601-1-2, BSMI CNS13438
Safety: Safety EN 62368, BSMI CNS14336-1
WEIGHT AND DIMENSIONS
- Width: 180 mm
- Depth: 180 mm
- Height: 42 mm
- Weight: 650g
- Package width: 197 mm
- Package depth: 190 mm
- Package height: 60 mm
- Package weight: 780g
Environmental conditions
- Relative humidity range for operation : 10 - 95%
- Operating temperature range : 0 - 50 C
- Storage temperature range : -40 - 70 C
- Relative humidity range during storage : 10 - 95%
Volume (m ³): 0.0013
