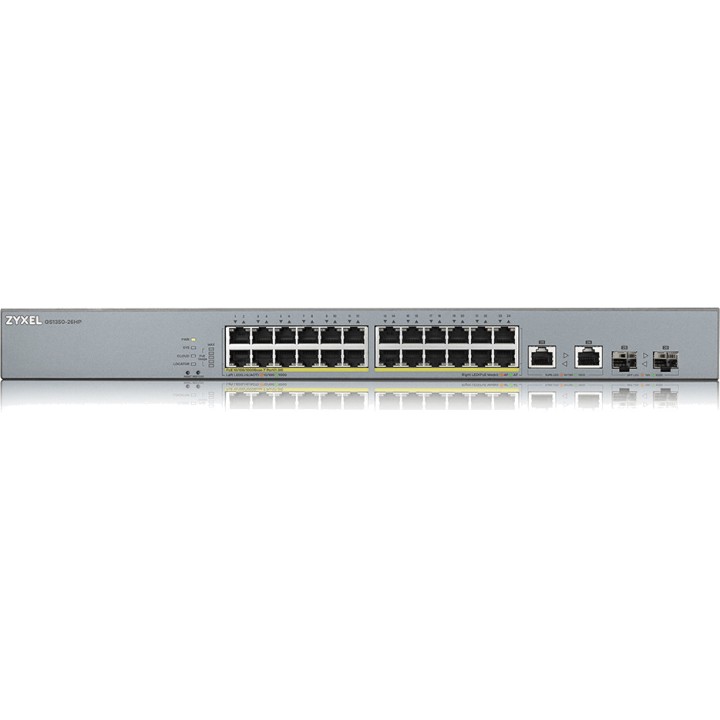

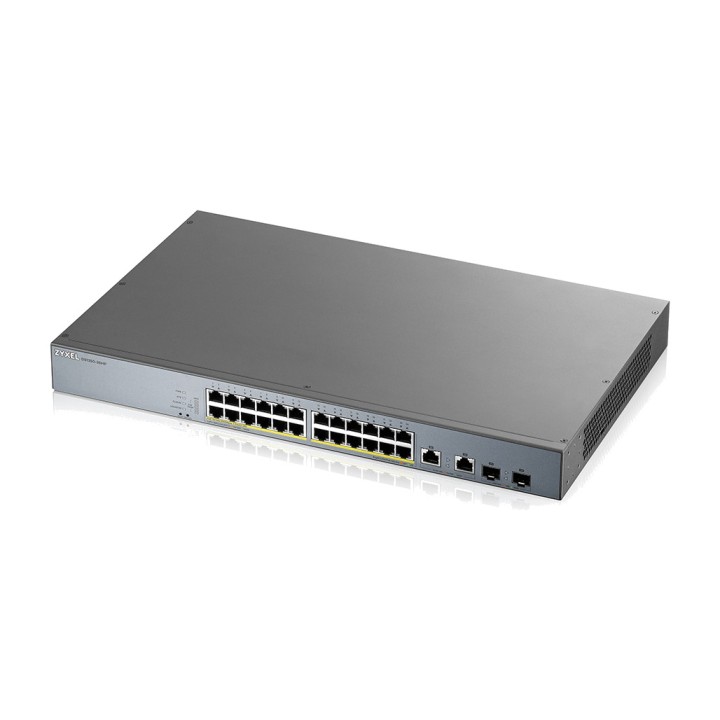

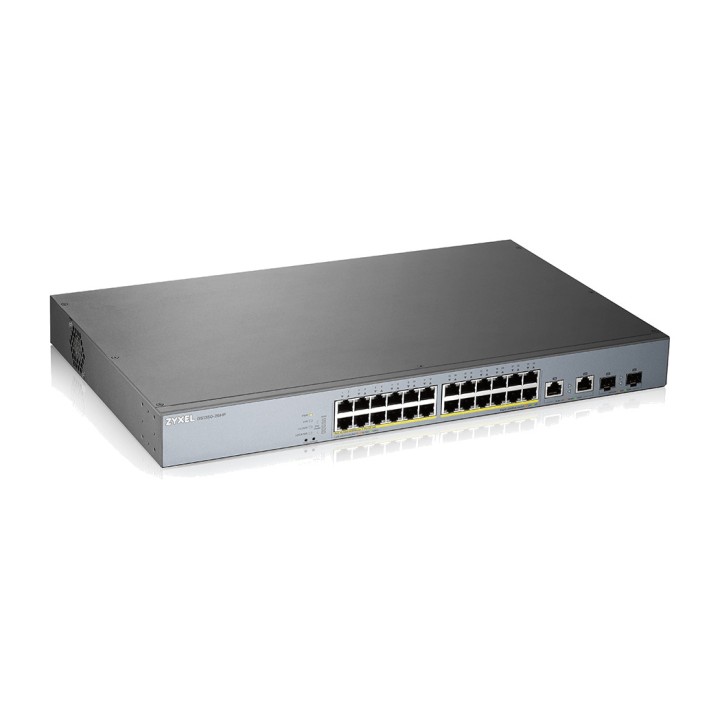

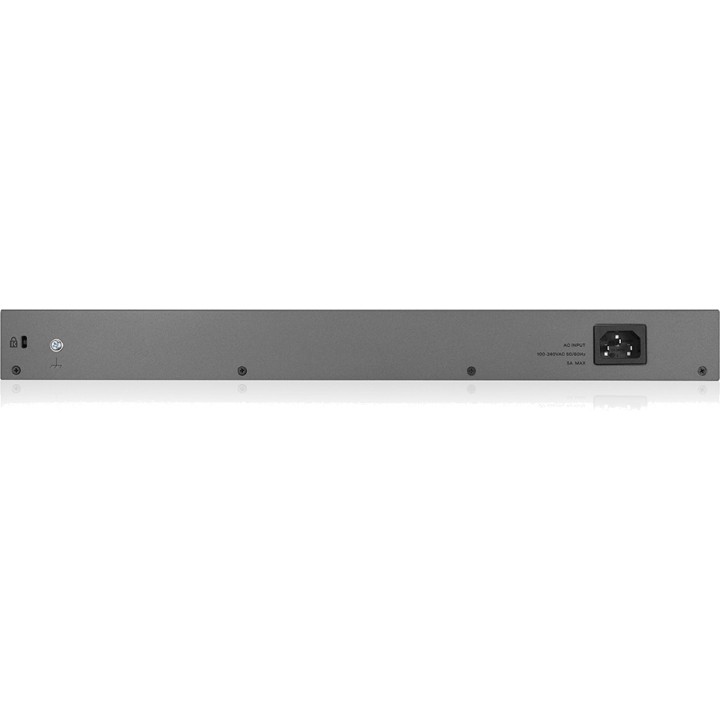

ZYXEL 24-port Gigabit PoE managed switch with 2 combo SFP ports GS1350-26HP DSP0000009636

New perspectives
Coated in titanium grey, the GS1350 stands out with an identity
strikingly dedicated to video surveillance switches.

Specialized PoE software features for video surveillance.
Automatically detect and recover IP cameras and devices
powered with customizable granular parameters suitable
for any type of device and scenario.

Easy long-distance deployment
Traditionally, a PoE switch delivers power and data within the
100-metre distance limit. The GS1350 series meets the
need to deploy an IP camera or powered devices
using existing Cat 5e cable in remote locations. By enabling
extended range mode, instantly achieve
remote deployments of up to 250 m. Save money and
effort with just one PoE.

High power budget, intuitive front panel design
The GS1350 series includes four models with large power budgets
power of up to 375 W, meeting the requirement for powering
multiple IP cameras. The intuitive LED indicator on the front panel
lets you inspect PoE status in real time. In addition, the
one-touch "Restore" button on the GS1350 series helps with effortless recovery
from misconfigurations.

- Total ports : 26
- 24 x 100/1000 Mbps
- 2 x Gigabit combo (RJ-45/SFP)
- 16 x configurable extended-range ports
Characteristic
Feeding
- Input: 100 - 240 V AC, 50/60 Hz
- Maximum consumption : 448,9 W
POE
- PoE ports E: 24
- Total PoE power E: 375W
- PoE standard: 802.3af/at
Performance
- Switching capacity: 52 Gbps
- Forwarding rate: 38.7 Mbps
- Packet buffer: 525K bytes
- Address table MAC: 8 K
physical characteristics
- Dimensions: 441 x 270 x 44 mm
- Weight: 3,58 Kg
- Included accessories: Power cable, rack mounting kit
Surge protection
- Ethernet port : 4 KV
- Power supply (line to ground) : 4 KV
- Power supply (line to line) : 2 KV
- Protection against electrostatic discharge on the Ethernet port : 15 KV / 8
K.V.
Environmental Characteristics
- Operating temperature: -20ºC to 50ºC / -4ºF to 122ºF
- Operating humidity: 5% to 95% (non-condensing)
- Storage temperature: -40ºC to 70ºC / -40ºF to 158ºF
- Storage humidity: 5% to 95% (non-condensing)
- MTBF (mean time between failures): 888.495 hours
- Heat dissipation: 1.530,75 BTU/hr
- Acoustic noise @ 25ºC: 40,1 dBA
Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-Tx Ethernet
- IEEE 802.3ab 1000Base-T Ethernet
- IEEE 802.3z 1000 Base-X
- IEEE 802.3x flow control
- IEEE 802.3af PoE
- IEEE 802.3at PoE plus
- IEEE 802.3bt (GS1350-6HP)
- IEEE 802.3az EEE support / Green Ethernet
- IEEE 802.1p CoS support
Certifications
EMC
- CE, FCC, C-Tick, Class A
- BSMI CNS13438
SECURITY
- LVD EN62368-1
- BSMI CNS14336-1
Volume (m ³): 0.0000
