ZYXEL 16-port Gigabit PoE managed switch with 2 combo SFP ports GS1350-18HP DSP0000006902

Specifications ZyXEL GS1350-18HP Switch 16xGB Po E 2xSFP 250W

New perspectives
Coated in titanium grey, the GS1350 stands out with a striking identity
dedicated to video surveillance switches.

Specialized PoE software features for video surveillance.
Automatically detect and recover IP cameras and powered devices
with customizable granular parameters suitable for any type of
device and scenario.

Easy long-distance deployment
Traditionally, a PoE switch delivers power and data within the distance
limited to 100 metres. The GS1350 series meets the need to
deploy an IP camera or powered devices using the cable
existing Cat 5e cable in remote locations. By enabling extended range
mode, instantly achieve remote deployments of up to 250
m. Save money and effort with just one PoE.

High power budget, intuitive front panel design
The GS1350 series includes four models with large power budgets
of up to 375 W that meet the requirement for powering multiple

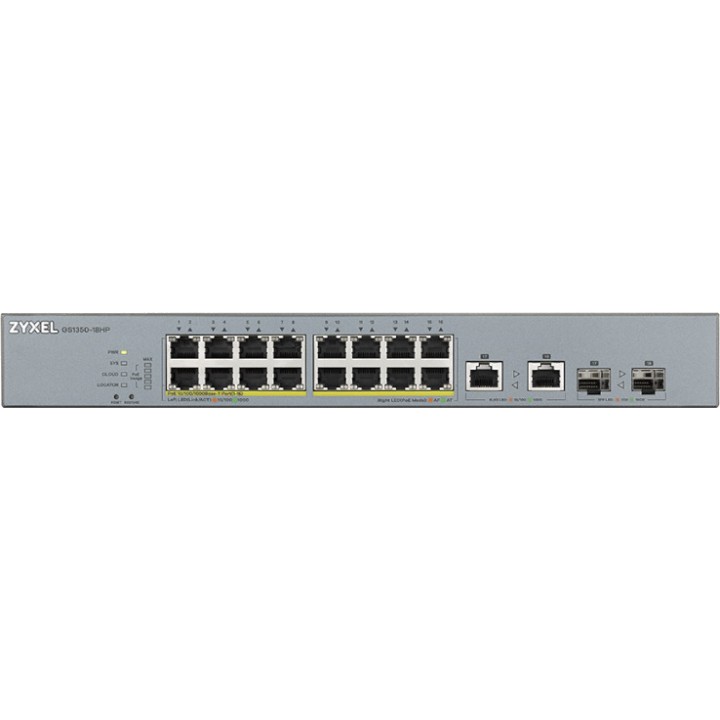

IP cameras. The intuitive LED indicator on the front panel allows you to inspect
the PoE status in real time. In addition, the single-touch "Restore" button
on the GS1350 series helps effortlessly recover from
misconfigurations.

Brand ZyXEL
MODEL GS1350-18HP-EU0101F
Ports - Total ports : 18
- 16 x 100/1000 Mbps
- 2 x Gigabit combo (RJ-45/SFP)
- 16 x configurable extended-range ports
Characteristic
Feeding
- Input: 100 - 240 V AC, 50/60 Hz
- Maximum consumption : 300,9 W
POE
- PoE ports E: 16
- Total PoE power E: 250W
- PoE standard: 802af/at
Performance
- Switching capacity: 36 Gbps
- Forwarding rate: 26.7 Mbps
- Packet buffer: 525K bytes
- Address table MAC: 8 K
physical characteristics
- Dimensions: 330 x 230 x 44 mm
- Weight: 2.42 Kg
- Included accessories: Power cable, rack mounting kit
Surge protection
- Ethernet port : 4 KV
- Power supply (line to ground) : 4 KV
- Power supply (line to line) : 2 KV
- Protection against electrostatic discharge on the Ethernet port : 15 KV / 8 KV
Environmental Characteristics
- Operating temperature: -20ºC to 50ºC / -4ºF to 122ºF
- Operating humidity: 5% to 95% (non-condensing)
- Storage temperature: -40ºC to 70ºC / -40ºF to 158ºF
- Storage humidity: 5% to 95% (non-condensing)
- MTBF (mean time between failures): 1.699.692,18 hours
- Heat dissipation: 1.026,07 BTU/hr
- Acoustic noise @ 25ºC: 39 dBA
Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-Tx Ethernet
- IEEE 802.3ab 1000Base-T Ethernet
- IEEE 802.3z 1000 Base-X
- IEEE 802.3x flow control
- IEEE 802.3af PoE
- IEEE 802.3at PoE plus
- IEEE 802.3bt (GS1350-6HP)
- IEEE 802.3az EEE support / Green Ethernet
- IEEE 802.1p CoS support
Certifications
EMC
- CE, FCC, C-Tick, Class A
- BSMI CNS13438
SECURITY
- LVD EN62368-1
- BSMI CNS14336-1
RoHS compliant
Volume (m ³): 0.0106
