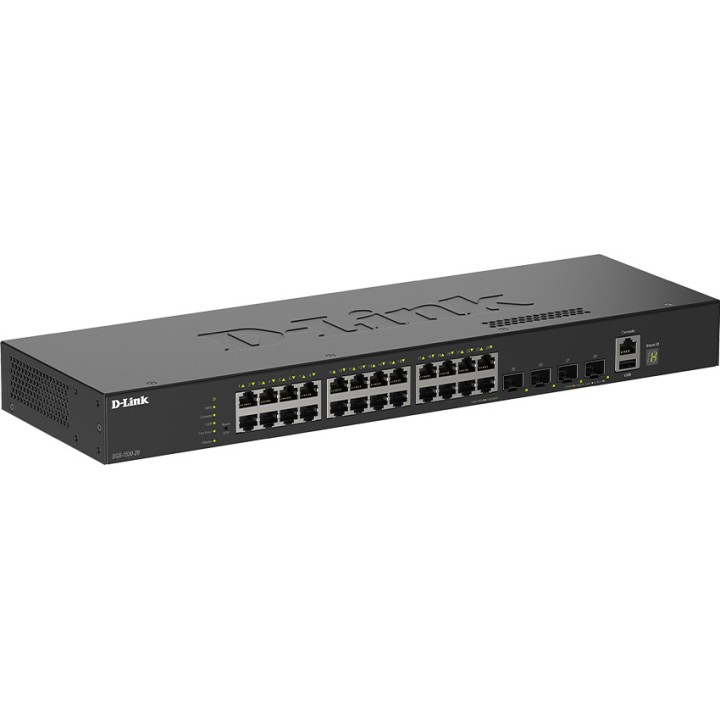

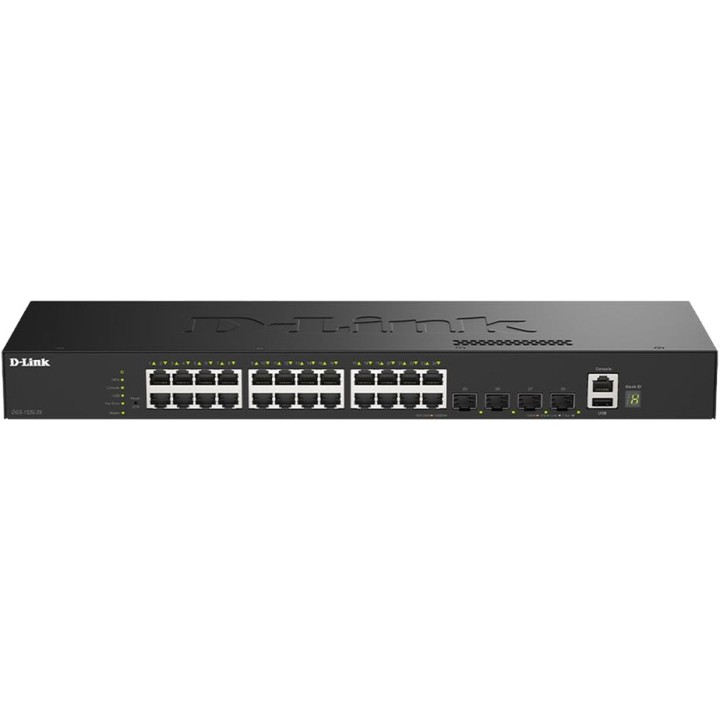

D-LINK 24-port Gigabit stackable managed switch and 4 SFP+ DGS-1530-28 10G MGS0000035149

Features of the D-Link Stackable Smart Managed Switch DGS-1530-28
The D-Link DGS-1530-28 is a Smart managed switch designed for business environments that require high performance, scalability and centralised management. Equipped with 24 Gigabit Ethernet ports and 4 10G SFP+ ports for high-speed uplinks, it provides an infrastructure ready for growing networks. It also incorporates advanced management, security, redundancy and monitoring features, making it an ideal solution for offices, educational institutions, hotels and other professional facilities.
Gigabit connectivity with high-speed 10G links
Thanks to its 24 Gigabit Ethernet ports and 4 10G SFP+ ports, this switch provides fast, stable connectivity for both end devices and links to the core network. Its high switching capacity ensures efficient data flow, even in networks with high traffic volumes.

24 Gigabit Ethernet ports RJ-45.
4 10G SFP+ ports for high-speed uplinks.
Switching capacity of 128 Gbps.
Forwarding rate of up to 95.24 Mpps.

Physical stacking for a more scalable network
Physical stacking of up to 9 switches makes it easy to expand the network infrastructure, managing multiple devices as if they were a single device. It also incorporates redundancy mechanisms that improve service availability in the event of potential incidents.

Physical stacking of up to 9 switches.
Automatic failover if the master device fails.
Hot-swap support.
Optimized forwarding using lowest-cost paths.

Simplified management and automatic deployment
Zero-Touch Provisioning (ZTP) and Single IP Management (SIM) features reduce configuration time and simplify the management of large-scale deployments. It is also compatible with the Nuclias Network Controller for centralised management.

Zero-Touch Provisioning (ZTP).
Single IP Management (SIM).
Management via Nuclias Network Controller.
Automatic configuration via DHCP and TFTP.

Advanced security and monitoring features
The DGS-1530-28 incorporates a comprehensive set of tools to protect the network and facilitate monitoring and maintenance tasks. Its security features help control access, while OAM capabilities enable incidents to be detected quickly.

Support for VLAN, ACL, Port Security, 802.1X and RADIUS.
IEEE 802.1ag for Connectivity Fault Management.
ITU-T Y.1731 for delay measurement.
Ethernet Ring Protection Switching (ERPS).

Electrical protection and redundant power supply
Designed to provide reliable operation in professional environments, it features 6 kV surge protection on all Gigabit Ethernet ports and supports a redundant power supply (RPS), improving service continuity.

6 kV IEC61000-4-5 protection on all ports RJ-45.
Compatible with Redundant Power Supply (RPS).
Smart Fan.
Internal power supply.

Multicast optimised for multimedia services
Advanced multicast management features improve the performance of applications such as IPTV or video streaming, preventing unnecessary traffic and optimising bandwidth usage across the network.

IGMP Snooping.
MLD Snooping.
ISM VLAN to reduce redundant multicast traffic.
Greater efficiency in multimedia networks.

Other specifications

Console port RJ-45.
Maximum consumption : 32 W.
Dimensions: 440 x 140 x 44 mm.
Weight: 2.15 kg.
Operating temperature: -5°C to 50°C.
Storage temperature: -20°C to 70°C.
Operating humidity: 0% to 95%, non-condensing.
Storage humidity: 0% to 95%, non-condensing.
Volume (m ³): 0.0099
