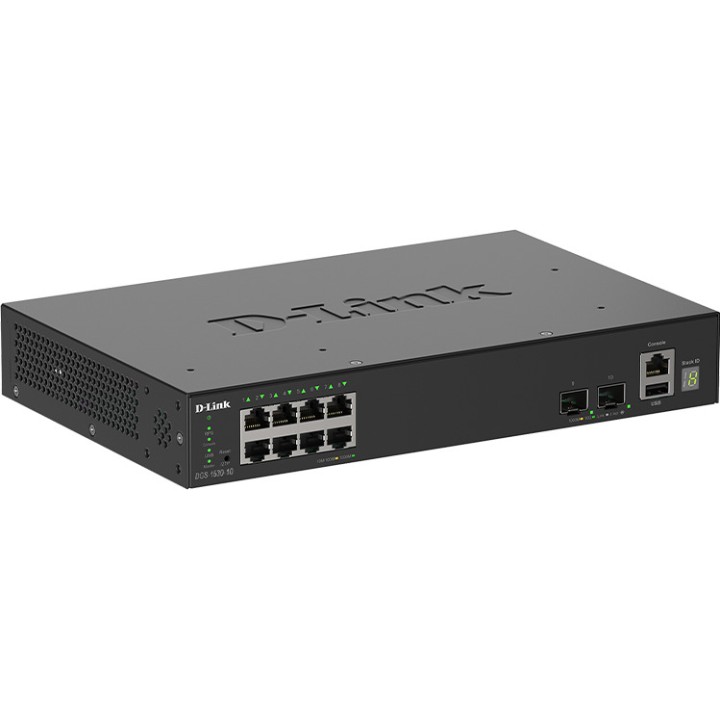

D-LINK 8-port Gigabit stackable managed switch and 2 SFP+ DGS-1530-10 10G MGS0000035147

Features of the D-Link Stackable Smart Managed Switch DGS-1530-10
The D-Link DGS-1530-10 is a Smart managed switch designed to deliver high performance, scalability and reliability in business and education networks and professional environments. It features 8 Gigabit Ethernet ports for access connections and 2 10G SFP+ ports for high-speed uplinks, enabling the construction of infrastructures ready for growth and high-bandwidth applications.
Gigabit connectivity with high-performance 10G links
Thanks to its 8 Gigabit Ethernet ports and 2 10G SFP+ ports, this switch provides fast, stable connectivity for both end devices and backbone links, servers or aggregation switches.

8 Gigabit Ethernet ports RJ-45.
2 10G SFP+ ports for high-speed uplinks.
Switching capacity of 56 Gbps.
Forwarding rate of up to 41,67 Mpps.

Scalability through physical stacking
Physical stacking of up to 9 switches allows multiple devices to be managed as a single logical unit, simplifying network management and facilitating future expansions without increasing operational complexity.

Physical stacking of up to 9 switches.
Automatic failover if the master switch fails.
Hot-swapping for easy maintenance.
Shortest-path forwarding and increased bandwidth through trunk links.

Simplified management and automatic deployment
Zero-Touch Provisioning (ZTP) support enables new devices to be deployed automatically, reducing installation time and minimising configuration errors. In addition, the SIM function makes it easy to manage multiple switches under a single IP address and is compatible with Nuclias Network Controller for centralised management.

Zero-Touch Provisioning (ZTP) support.
Management via Nuclias Network Controller.
SIM function for managing multiple switches as a single virtual device.
Automatic provisioning via DHCP and TFTP.

Advanced security for business networks
Integrates a comprehensive set of security features that help protect the network, control user access and efficiently segment traffic in corporate environments.

VLAN support.
Access Control Lists (ACL).
Port Security.
IEEE 802.1X and RADIUS authentication.

High availability and incident recovery
Support for G.8032 Ethernet Ring Protection Switching (ERPS) provides extremely fast recovery from link failures, while compatibility with a redundant power supply (RPS) helps maintain service continuity.

Support for ERPS (G.8032).
Compatible with a redundant power supply (RPS).
IEEE 802.1ag for connectivity fault management.
ITU-T Y.1731 for delay measurement.

Multicast traffic optimization
Multicast management features improve the performance of applications such as IPTV and multimedia streaming, reducing unnecessary traffic and optimizing bandwidth usage.

IGMP Snooping.
MLD Snooping.
ISM VLAN to reduce multicast traffic between VLANs.

Robust design and quiet operation
Its compact, fanless design and 6 kV surge protection on all Ethernet ports provide silent operation and greater protection against electrical surges.

6 kV IEC61000-4-5 surge protection on all ports RJ-45.
Fanless design for silent operation.
Internal power supply.
Console port RJ-45.

Other specifications

Maximum consumption : 14,6 W.
Dimensions: 280 x 180 x 44 mm.
Weight: 1.7 kg.
Operating temperature: -5 °C to 50 °C.
Storage temperature: -20 °C to 70 °C.
Operating humidity: 0% to 95%, non-condensing.
Storage humidity: 0% to 95%, non-condensing.
Volume (m ³): 0.0099
