D-LINK WiFi 6 wall access point with PoE power DAP-X3060W AX3000 MGS0000035146

Features of the D-Link AX3000 Wi-Fi 6 Wall Plate PoE Access Point DAP-X3060W
The D-Link DAP-X3060W Access Point is a high-performance Wi-Fi 6 solution designed to provide fast, stable and secure connectivity in hotels, residences, buildings, offices and educational spaces. Its wall-plate design allows for discreet, straightforward installation using PoE power over a single cable, while its AX3000 wireless connectivity and Gigabit ports deliver an excellent experience for both Wi-Fi and wired devices.
High-performance Wi-Fi 6 AX3000
Thanks to Wi-Fi 6 (802.11ax) technology, this access point provides a high-speed connection with lower latency and greater capacity to handle numerous devices connected simultaneously. It is an ideal choice for streaming, video conferencing, business applications and environments with a high user density.

Speed of up to 574 Mbps at 2.4 GHz.
Speed of up to 2402 Mbps at 5 GHz.
Combined wireless speed of up to AX3000 (3.0 Gbps).
Simultaneous dual-band 2.4 GHz and 5 GHz.
2x2 MIMO technology with band steering and airtime fairness.

Easy installation using PoE power

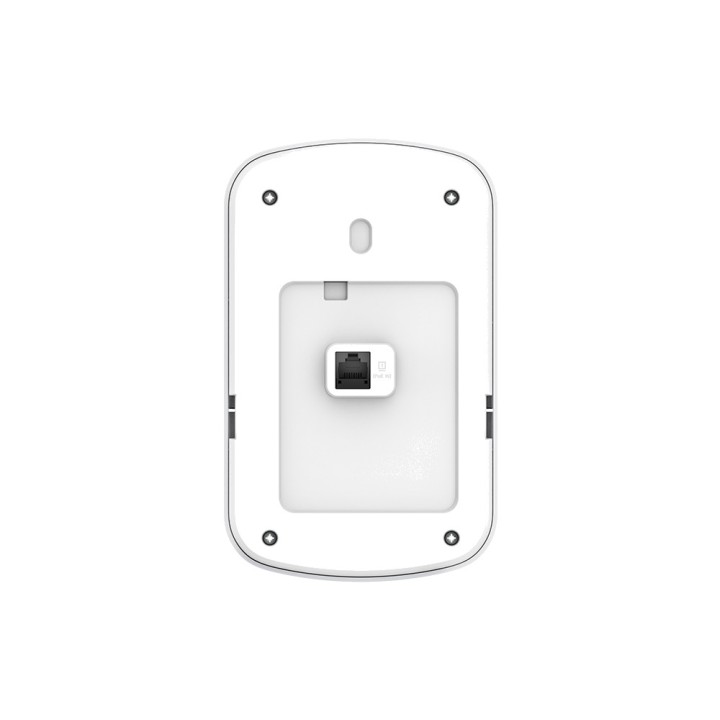

The DAP-X3060W features 802.3at PoE power, allowing the device to be installed using a single network cable, with no nearby power outlets required. Its Wall Plate form factor makes it easy to mount in standard US and EU junction boxes.

Compatible with IEEE 802.3at PoE power.
Installation using a single Ethernet cable.
Compact design for wall mounting.
Ideal for hotel rooms, offices, residences and classrooms.

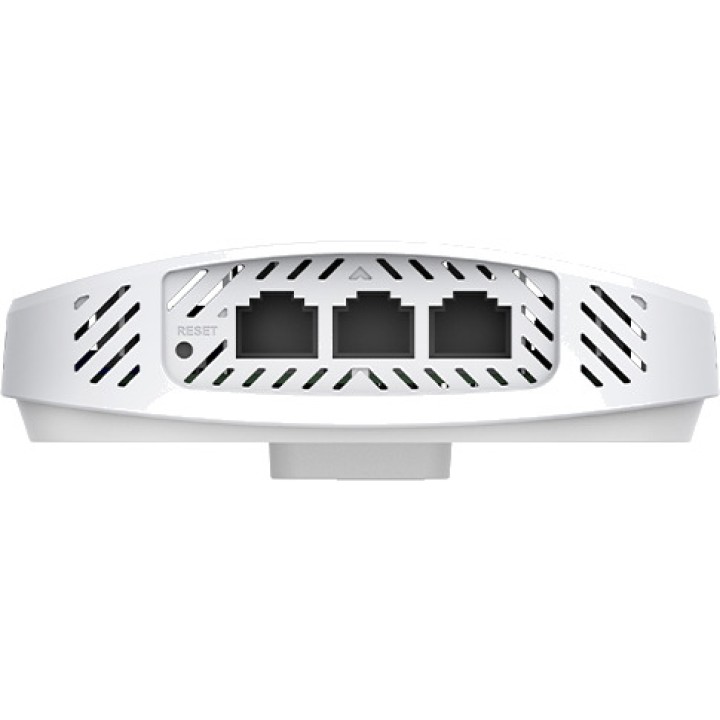

Gigabit connectivity with PoE output
In addition to providing high-speed Wi-Fi connectivity, this access point lets you expand the wired network through several Gigabit ports. One of them features PoE Passthrough, allowing compatible devices such as IP phones or cameras to be powered without an additional power supply.

1 Gigabit Ethernet PoE port for uplink.
3 Gigabit Ethernet downlink ports (Downlink).
1 port with PoE Passthrough function.
Ideal for connecting PCs, smart TVs, printers or VoIP phones.

Enterprise security for protected networks
The DAP-X3060W features comprehensive security functions to protect both corporate and guest networks. Its authentication and segmentation options make it possible to create secure environments tailored to hotels, campuses, buildings and offices.

Compatible with WPA, WPA2 and WPA3 Personal/Enterprise.
Support for Enhanced Open.
Access control via MAC addresses.
Internal RADIUS server.
SSID hiding.
Customizable captive portal.
VLAN and SSID assignment for user segmentation.

Centralized management with Nuclias
The access point can be managed remotely via Nuclias Connect, allowing you to monitor, configure and scale the network infrastructure from a centralized platform. It also supports management via a web interface and remote access for administrative tasks.

Compatible with Nuclias Connect.
Management via Web (HTTP/HTTPS).
Telnet and SSH access.
Centralized control of multiple access points.

Designed for professional environments
Its compact design and features make it an excellent choice for providing stable Wi-Fi coverage in hotel rooms, student residences, apartment buildings, meeting rooms and offices, delivering a reliable experience for both users and network administrators.

Optimized Wi-Fi coverage for rooms and indoor spaces.
Supports multiple devices connected simultaneously.
Ideal for hotels, education, offices and residential buildings.

Other specifications

Wi-Fi standards: IEEE 802.11ax/ac/n/g/b/a.
Ethernet standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an.
2 internal dual-band antennas.
Operating frequencies: 2,4 - 2,483 GHz, 5,15 - 5,35 GHz, 5,47 - 5,85 GHz.
Dimensions: 195,68 x 120,72 x 40,2 mm.
Operating temperature: 0°C to 40°C.
Operating humidity: 10% to 90% non-condensing.
Storage humidity: 5% to 95% non-condensing.
Volume (m ³): 0.0060
