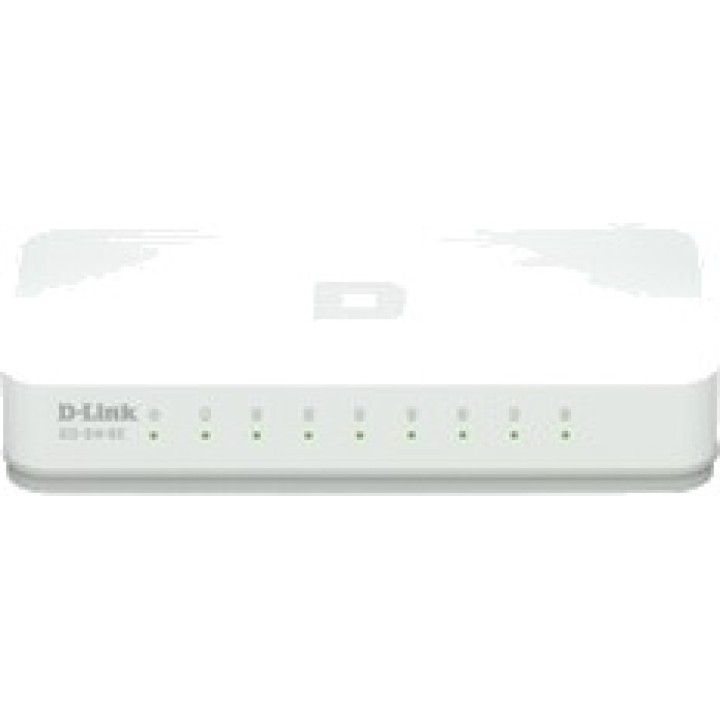

D-LINK 8-port unmanaged switch 10/100 GO-SW-8E

The dlinkgo GO-SW-8E 8-Port Fast Ethernet Easy Desktop Switch allows you
to quickly set up a fast, reliable, and efficient wired network in your home or
office. The GO-SW-8E is an unmanaged 10/100Mbps switch designed to
enhance small workgroup performance while providing a high level of
flexibility. Powerful yet easy to use, this device allows users to simply plug
any port to either a 10Mbps or 100Mbps network to multiply bandwidths,
boost response time and satisfy heavy load demands. Connect the
GO-SW-8E to multiple computers to share files and folders, or connect it to a
router to share an Internet connection.

Effortless High Speed Networking

The GO-SW-8E features easy access auto sensing 10/100 Mbps Ethernet
ports with a LED indicator for each port to quickly distinguish link status and
activity. These ports detect the network speed and auto-negotiate between
10BASE-T and 100BASE-TX, as well as between full and half-duplex, to get
you the maximum speed possible for each device connected to your
network, for faster browsing, video streaming, and online gaming. The
GO-SW-8E also supports Auto MDI/MDIX Crossover, allowing you to connect
each port directly to a server, hub, router, or switch using regular
straight-through twisted-pair Ethernet cables.

Reliable Plug and Play Installation

The GO-SW-8E is a Plug-and-Play device that requires no configuration, so
setup is simple and hassle-free, so right away you’re easily able to connect
multiple computers, share files, music, and video across your home or small
office network, or even create a multi-player gaming environment. 802.3x
flow control on each port minimizes dropped packets when the port’s
receiving buffer is full. This gives you a more reliable connection for all of
your connected devices.

Environmentally Friendly

The GO-SW-8E features D-Link Green technology, which drastically reduces
energy consumption. If there is no computer connected to a port or a
connected computer is powered off, the port will automatically enter ‘sleep
mode’, greatly reducing the power used for that port without interrupting the
network connection. In addition, the switch automatically detects the length
of connected Ethernet cables and adjusts their power usage accordingly
without affecting performance. This considerably lowers overall energy
usage, which both saves you money and helps the environment, without the
need for micro-management.

Compact and Silent

The GO-SW-8E has a sleek and compact design, so that you can place it in
any easily accessible location and have it stay out of your way. The power
connector and ports are all located at the rear of the switch allowing you to
tuck the cables away conveniently. The GO-SW-8E does not use a fan, so the
switch operates silently but effectively, letting you watch movies streamed
off the Internet without distraction, or browse the web in peaceHigh-Speed
Networking

Eight 10/100 Mbps Fast Ethernet ports
Full/half-duplex for Ethernet/Fast Ethernet speeds

Reliability

IEEE 802.3x Flow Control
Store-and-forward switching scheme
RoHS Compliant

Easy Setup

Plug-and-play installation
Auto MDI/MDIX crossover for all ports

D-Link Green Technology

IEEE 802.3az Energy Efficient Ethernet
Port standby
Cable length detection
Link status detection

Stylish Design

Compact lightweight chassis
Ports located conveniently at the rear
Noise-free operation

TECHNICAL SPECIFICATIONS

general

Device Interfaces

Eight 10/100 Fast Ethernet LAN ports


Functionality

Advanced features

Green Ethernet
1.6 Gbps switching fabric
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Compliance with IEEE802.3az EEE power saving
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow Control
Plug-and-play installation
RoHS Compliant
Supports 2048-byte Jumbo Frames


Protocol

CSMA/CD


Data Transfer

Rates Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)


Transmission Method

Store-and-forward


MAC Address Table

2K


MAC Address Learning

Automatic Update


Packet Filtering/Forwarding Rates

Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port


RAM Buffer

128 KB per device


Physical

LED Indicators

Per port: Link/Activity
Per device: Power


Media Interface Exchange

Auto MDI/MDIX adjustment for all ports


Dimensions

141.5 x 78.5 x 23.8 mm (5.57 x 3.09 x 0.94 inches)


POWER

5 V/1 A Power Adapter
Volume (m ³): 0.0008
