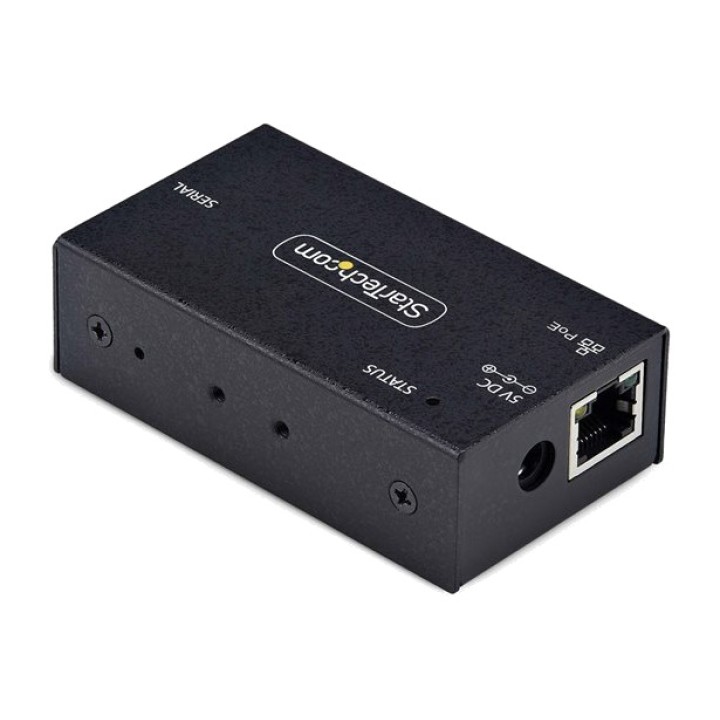

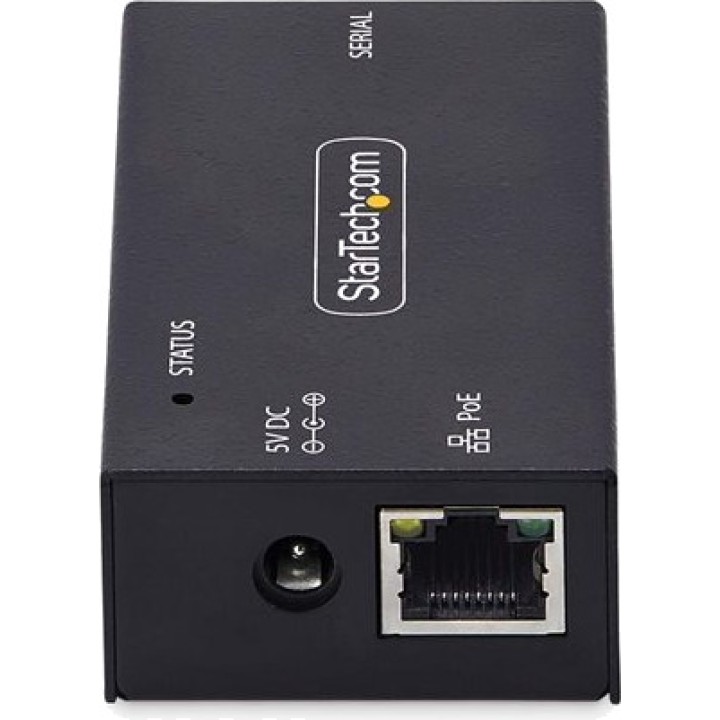

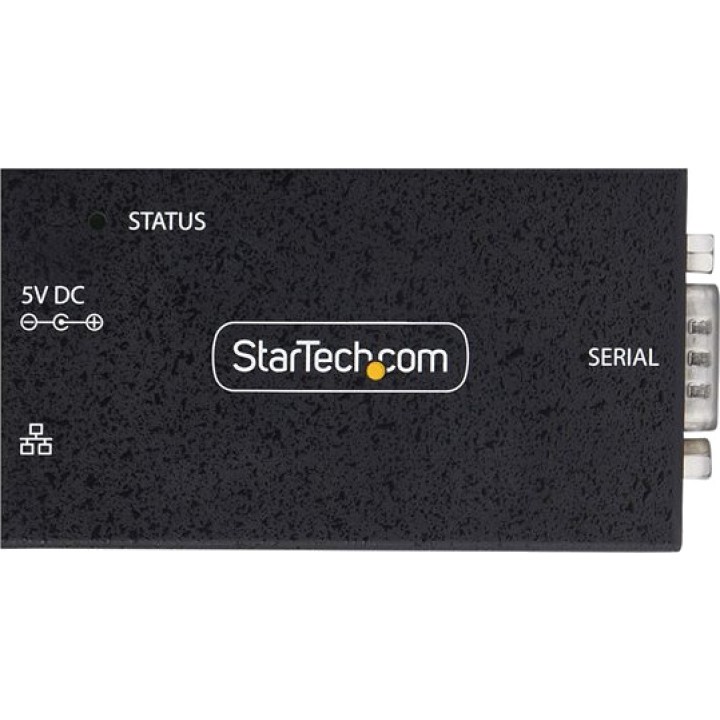

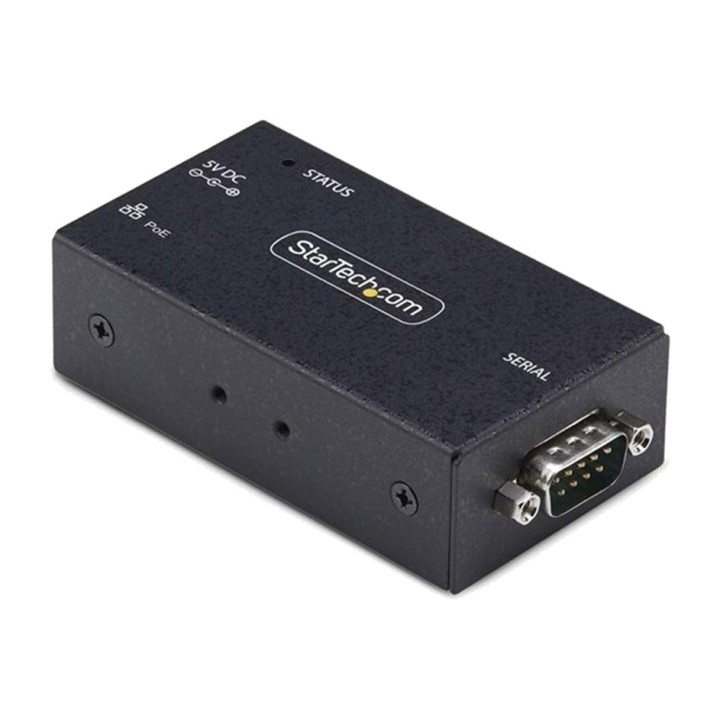

STARTECH.COM Serial device server to Ethernet with PoE power supply RS232 I13P-SERIALETHERNET DSP0000041130

Features of the StarTech Serial to Ethernet PoE Adapter - LAN IP to RS232 Converter - Device Server - PoE - TAA Compliant
The StarTech Serial to Ethernet PoE Adapter is a solution designed to integrate RS-232 serial devices into Ethernet networks simply and efficiently. This device server lets you connect industrial equipment, automation systems, terminals or legacy devices to a modern network infrastructure, facilitating remote access and management. Its Power over Ethernet (PoE) compatibility, together with its compact design and robust metal housing, makes it a suitable choice for professional and industrial environments.
RS-232 serial connectivity over an Ethernet network
This converter transmits data between serial devices and an Ethernet network, enabling remote communication via standard network protocols. Its transfer speed of up to 921,6 Kbps ensures reliable communication for a wide range of industrial and business applications.

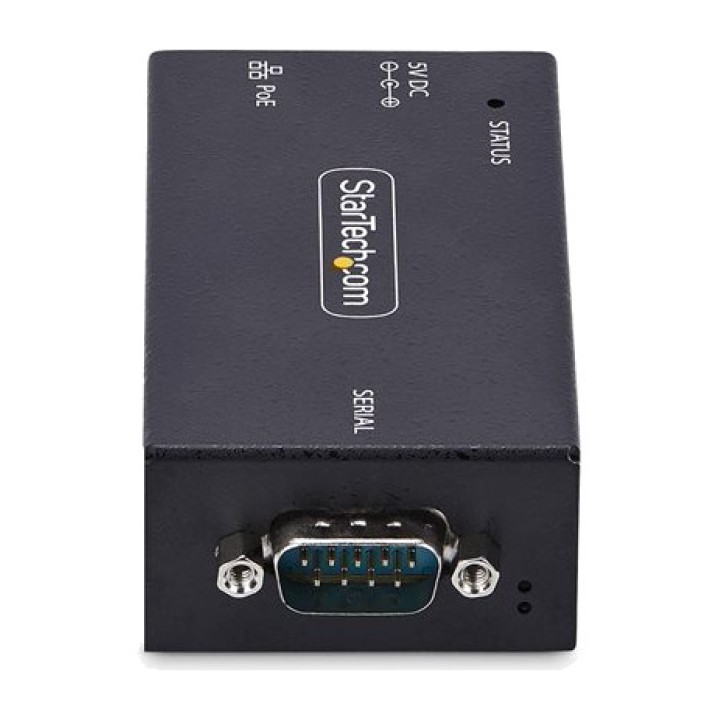

1 RS-232 port with connector DB-9
1 Fast Ethernet 100Base port -TX RJ-45
Data transfer speed of up to 921,6 Kbps
Compatible with Ethernet, Fast Ethernet and RS-232

Powered via Power over Ethernet
Thanks to IEEE 802.3af PoE compatibility, the device can receive power directly through the network cable, reducing the need for additional power supplies and simplifying installation in remote or hard-to-reach locations.

Compatible with Power over Ethernet (PoE)
PoE power of up to 15,4 W
Compatible with IEEE 802.3af

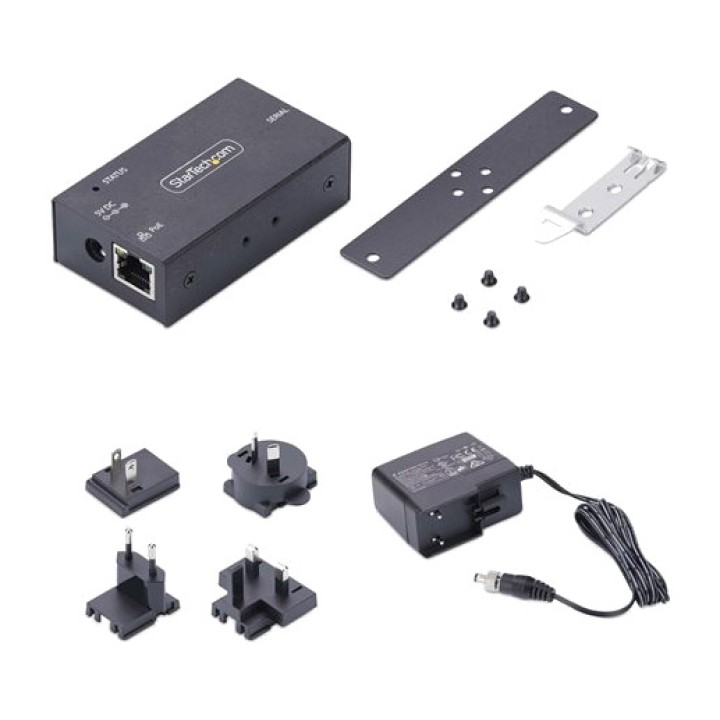

Includes external power adapter

Robust design for professional environments
Its metal housing provides greater strength and durability in industrial applications. It also supports both wall and DIN rail installation, offering flexibility to suit different deployment scenarios.

Durable metal housing

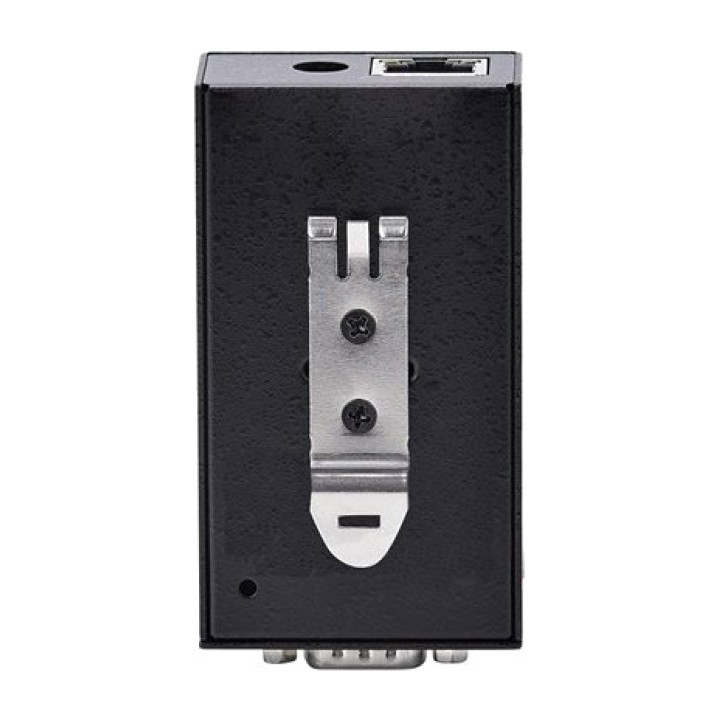

Wall or DIN rail installation
Wall-mounting kit included
DIN rail mounting kit included

Advanced networking and remote management features
The device features networking functions designed for simple and stable integration, including auto-negotiation, automatic MDI/MDI-X detection, and compatibility with widely used remote management protocols.

TCP, UDP and Telnet protocols
Static IP addressing
Automatic network negotiation
Automatic MDI/MDI-X
Flow control and duplex capability

Protection and reliability for critical applications
Designed to provide stable operation in demanding environments, it features protection against electrostatic discharge and allows communication parameters such as parity to be adjusted for better compatibility with serial devices.

ESD protection from 15 KV
Contact ESD protection of 8 KV
Adjustable parity
LED indicators for power, transmission, reception, PoE and network activity

Compatibility and certifications
This device server offers broad compatibility with Windows operating systems and complies with various communications and networking standards, making it easy to integrate into existing infrastructures.

Compatible with Microsoft Windows XP, Vista, 7, 8, 8.1, 10 and 11
TAA compliant
Complies with EIA/TIA-232
Compatible with IEEE 802.3i, IEEE 802.3u and IEEE 802.3af

Other specifications

COLOUR: BLACK
Dimensions: 8.2 x 4.6 x 2.5 cm
Weight: 155g
Operating temperature: from 0 °C to 60 °C
Operating humidity: 5% - 95% RH non-condensing
Packaging dimensions: 20.7 x 14.4 x 3 cm
Package weight: 1,2 kg
Volume (m ³): 0.0010
