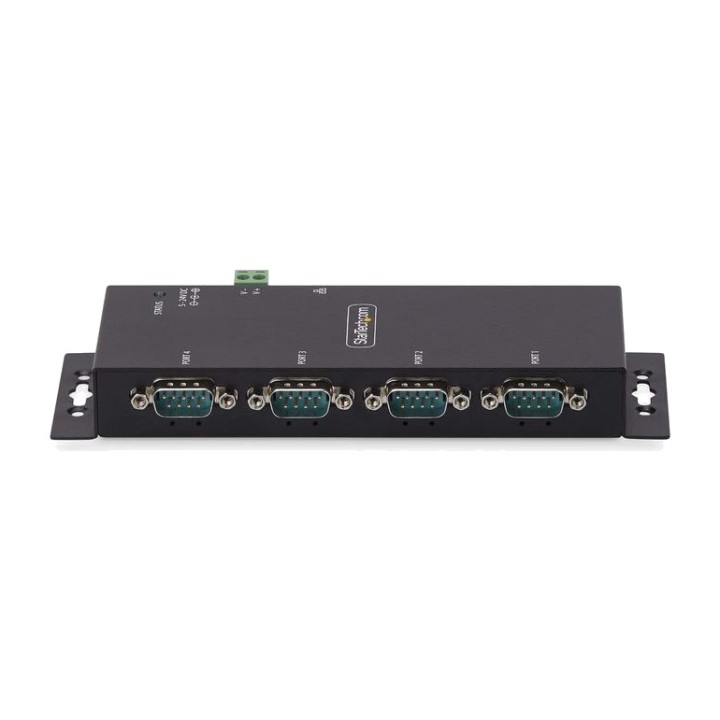

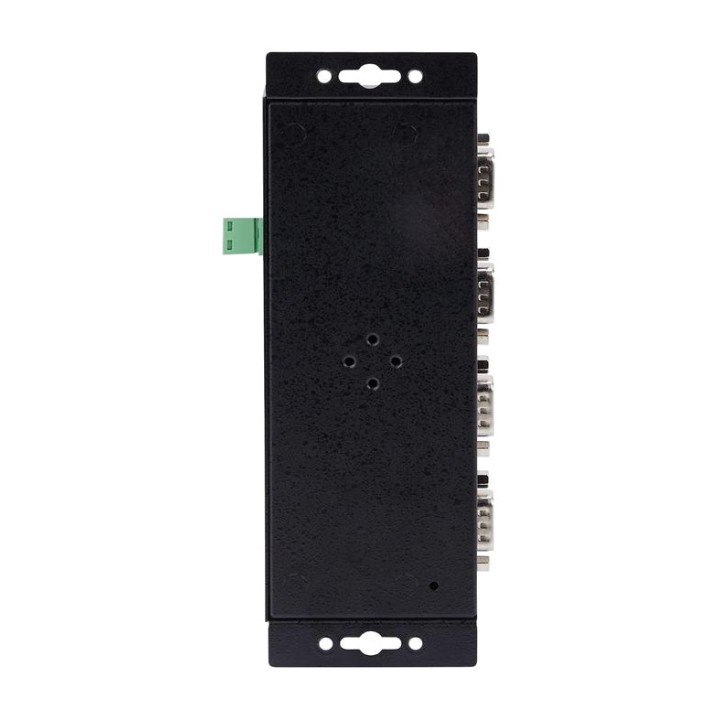

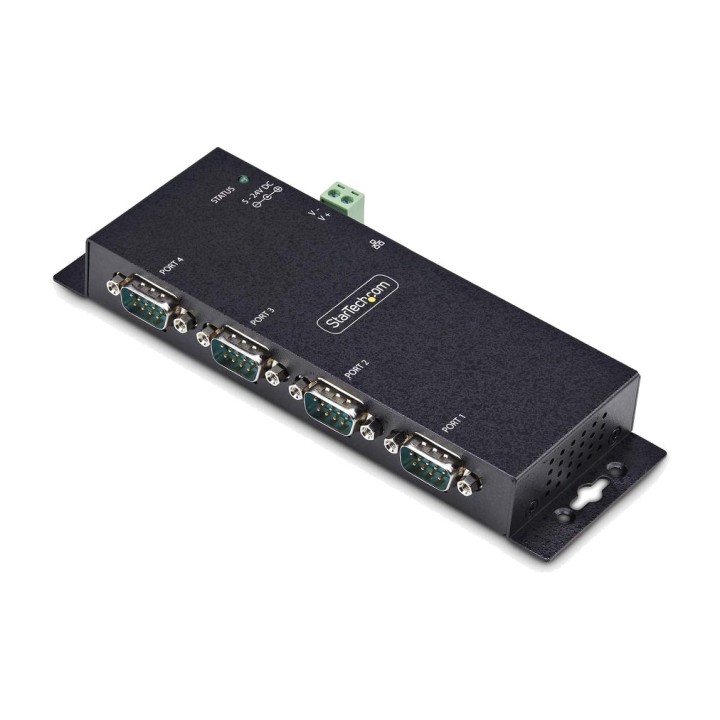

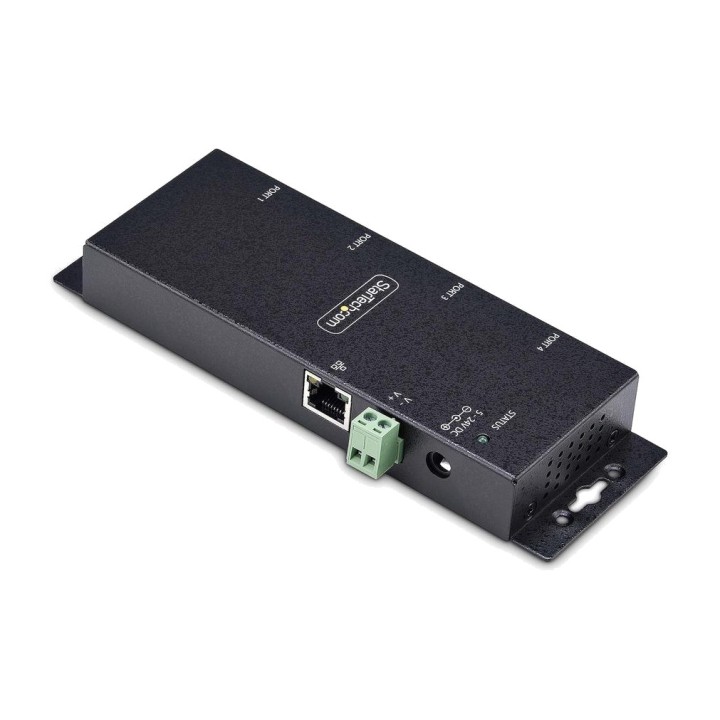

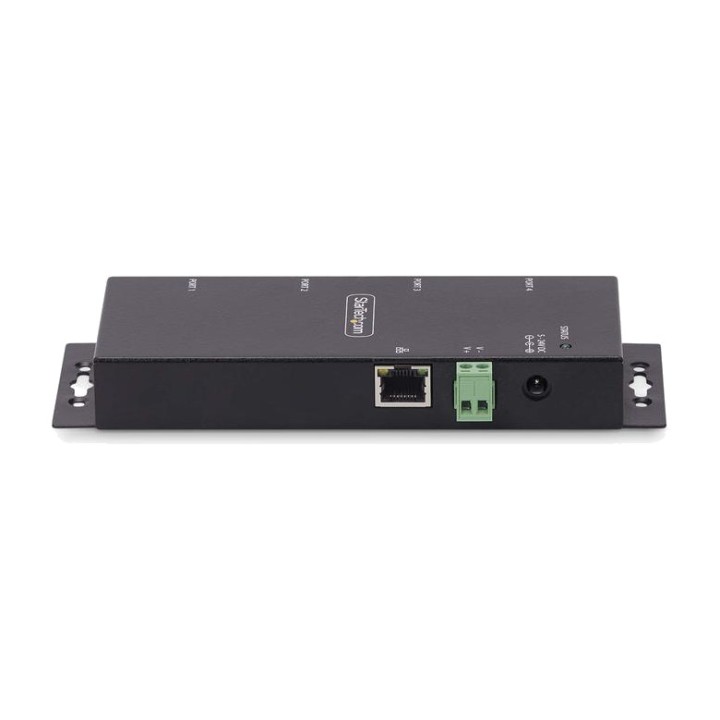

STARTECH.COM 4-port serial-to-Ethernet device server RS232 DB9 I43-SERIALETHERNET DSP0000040708

Serial-to-Ethernet Adapter Features I43-SERIAL-ETHERNET
The I43-SERIAL-ETHERNET Serial-to-Ethernet Adapter is designed to remotely integrate and manage RS232 serial devices over IP networks. With its four DB9 RS232 ports, this device server allows industrial equipment, POS systems, CNC controllers, PLCs or weighing systems to be connected reliably and securely via Ethernet. Its robust design with a metal housing and professional mounting options makes it an ideal solution for industrial and enterprise environments.
Remote RS232 serial connectivity via Ethernet
This converter allows traditional serial devices to be transformed into equipment accessible from an IP network, facilitating remote management and integration into modern infrastructures. Its DB9 serial ports provide reliable, high-speed communication for industrial and commercial applications.

4 serial ports RS232 DB9
Transmission speed of up to 921,6 Kbps
Remote connection via IP network
Compatible with POS, PLC, CNC and weighing systems

Centralized management and unified software
The device server shares a web interface and unified software ecosystem with other models in the range, making it easier to configure and manage devices from a single platform. It also includes Windows software that allows you to create virtual COM ports and manage devices connected to the network.

Integrated web-based management interface
Software for configuring virtual COM ports
Centralized management of serial devices
Compatible with updatable firmware

Advanced configurations and network options
The adapter supports multiple operating modes to suit different industrial communication scenarios. With support for TCP, UDP and Telnet RFC2217 protocols, it offers flexible and secure connectivity.

TCP client and server mode
Compatible with Telnet (RFC2217), UDP and TCP
Configuration import and export
Password protection and custom names

Stable Ethernet connection and flexible power supply
The integrated RJ45 Ethernet port provides a stable network connection with speed autonegotiation. The device also includes a power adapter and supports 5V power supply via pin 9 for certain compatible serial devices.

RJ45 Ethernet port 10/100 Mbps
Network speed autonegotiation

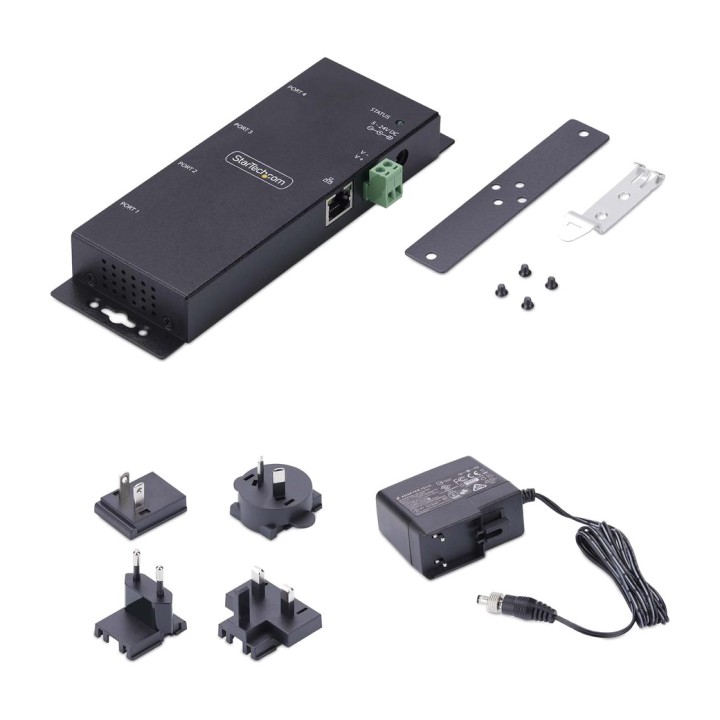

Power adapter included
5V power supply compatibility on pin 9

Robust design for industrial environments
The high-strength metal housing ensures reliable operation even in demanding conditions. In addition, the device features advanced ESD protection and versatile mounting options for professional installations.

Durable metal housing
Level 4 ESD protection: 15kV air / 8kV contact
Wall or DIN rail mounting
Dimensions: 178 x 59,4 x 23 mm

Compatibility with the device server range
This model is part of a family of serial-to-IP converters designed for different industrial and business connectivity needs.

I13-SERIAL-ETHERNET: 1-port model
I13P-SERIAL-ETHERNET: 1-port model with PoE
I23-SERIAL-ETHERNET: 2-port model
I43-SERIAL-ETHERNET: 4-port model
Volume (m ³): 0.0023
