STARTECH.COM 2-port serial-to-Ethernet device server RS232 DB9 I23-SERIALETHERNET DSP0000040707

Serial-to-Ethernet Adapter Features I23-SERIAL-ETHERNET
The I23-SERIAL-ETHERNET serial-to-Ethernet adapter is designed to connect and manage RS232 devices remotely over IP networks. This solution is ideal for industrial environments, POS systems, automation, sensors, CNC and PLC controllers, offering reliable and flexible integration for professional infrastructures. Thanks to its 2 DB9 serial ports and robust metal housing, it provides stable connectivity even in demanding conditions.
Remote serial connectivity over IP
This converter allows traditional RS232 devices to be transformed into equipment accessible over an Ethernet network, facilitating remote management and reducing cabling complexity. Its compatibility with TCP, UDP and Telnet (RFC2217) protocols enables easy integration into various professional environments.

2 serial ports DB9 RS232
Transfer rate of up to 921.6 Kbps
10/100 Mbps RJ45 Ethernet connectivity with auto-negotiation
Compatible with TCP, UDP and Telnet (RFC2217)

Centralized management and unified ecosystem
The device servers in this range share a common web interface and software, making it easy to configure and manage multiple devices from a single platform. It also includes Windows software that allows you to create virtual COM ports and manage network-connected devices.

Software for configuring virtual COM ports
Unified web management interface
Remote management of networked serial devices
Suitable for enterprise and industrial deployments

Advanced configurations and flexible operation
The device supports advanced configurations to suit different scenarios for serial communication over IP. Its TCP client/server mode allows serial tunnels to be created between two device servers, providing an efficient solution for secure remote communications.

TCP client/server mode
Configuration import and export
Password protection
Upgradeable firmware

Robust design for professional environments
The metal housing provides greater resistance in industrial environments or demanding installations. It also features Level 4 ESD protection and versatile mounting options for walls or DIN rails, making it easy to integrate into cabinets and industrial systems.

Durable metal housing
Level 4 ESD protection: 15 kV air / 8 kV contact
Wall or DIN rail mounting
Dimensions: 178 x 59,4 x 23 mm

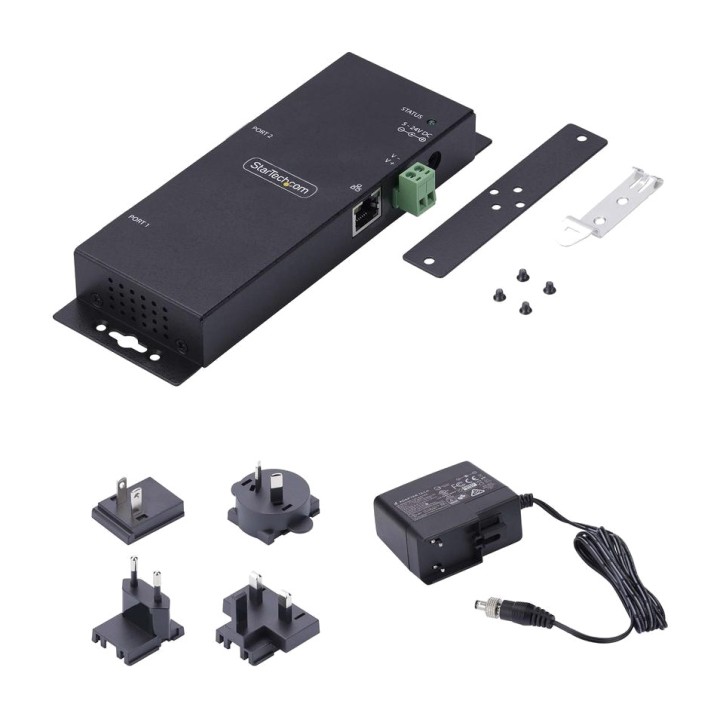

Power options and compatibility
The adapter includes a power supply and also supports 5V power via pin 9 for certain serial devices. This allows for more flexible installation in various professional environments.

Power adapter included
Compatible with 5V power via pin 9
Designed for professional integration
TAA certification

Other specifications

REFERENCE: I23-SERIAL-ETHERNET
Family available in 1-, 2- and 4-port versions
Model suitable for industrial and enterprise deployments
Volume (m ³): 0.0025
